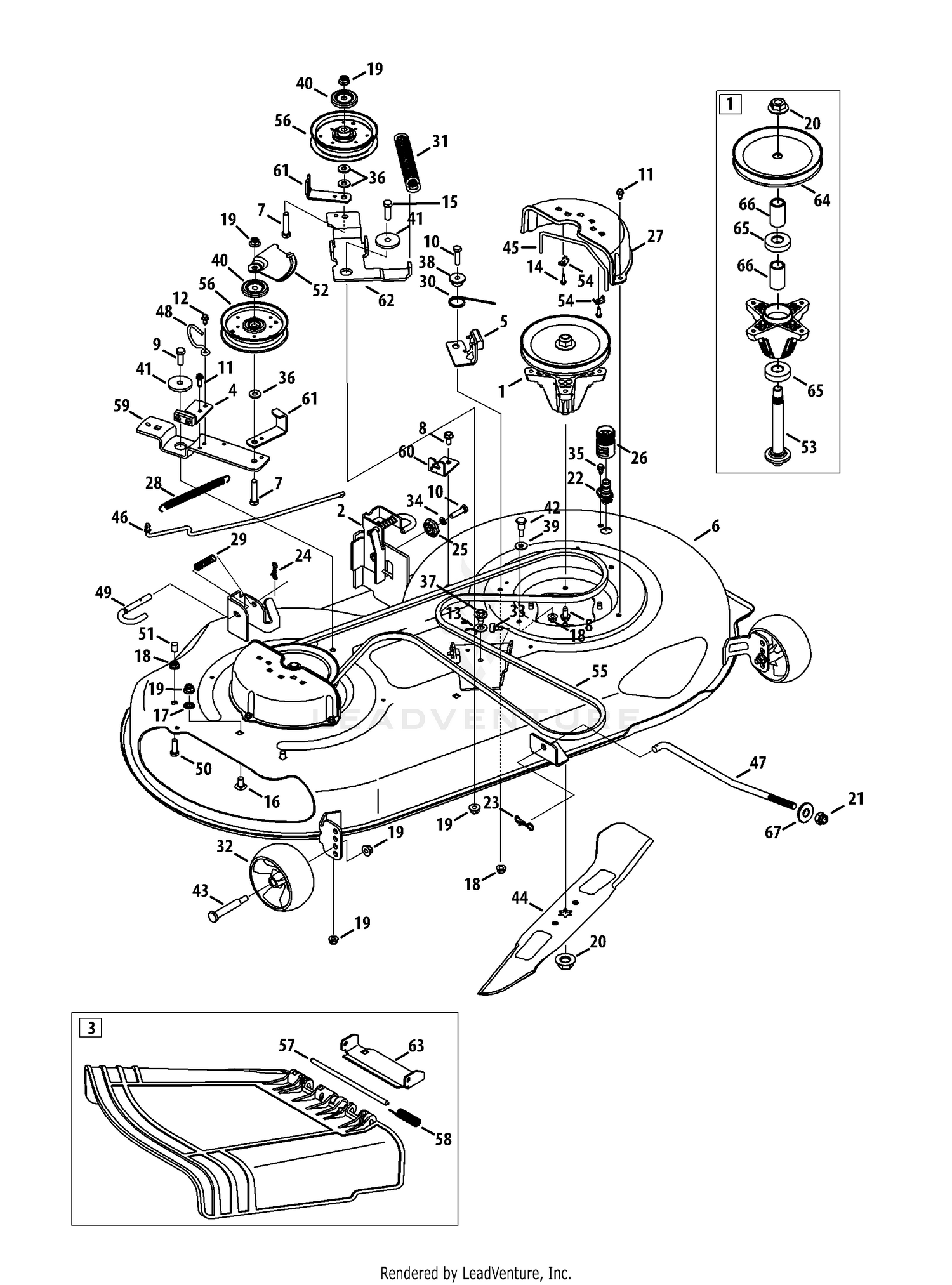

| Ref | Part Number | Description |
|---|
| 1 |
918-04865A |
Spindle Assembly, Pul 6.93 Dia Price: $137.16 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 3 |
631-05191A |
Discharge Chute Assembly This part replaces 631-04288. Price: $49.80 |
| 7 |
710-3144 |
Hex Screw, 3/8-16 x 2.00 Price: $4.02 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0514 |
Hex Screw, 3/8-16, 1.00, Gr5, Std Price: $3.78 |
| 10 |
710-0528 |
Hex Screw, 5/16-18, 1.25, Gr5, Std Price: $3.90 |
| 11 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 12 |
710-0642 |
Screw, Self-tapping, 1/4-20, .750 Price: $4.05 |
| 13 |
736-0226 |
Flat Washer, .474 x .879 x .064 This part replaces 936-0226. Price: $3.64 |
| 14 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 15 |
710-3005 |
Hex Screw, 3/8-16 x 1.25 Price: $3.61 |
| 16 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 17 |
712-0229 |
Nut, Push, 3/8 Price: $3.14 |
| 18 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 19 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 20 |
712-0417A |
HEX NUT Price: $6.50 |
| 21 |
712-04243 |
Nut, Lock, 1/2-13 Price: $3.52 |
| 22 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 23 |
714-04043 |
Bow-Tie Cotter Pin Price: $4.24 |
| 24 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 25 |
917-04074 |
Gear, Deck Adjustment Price: $11.45 |
| 26 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 27 |
731-06496 |
Belt Cover, Universal Price: $20.83 |
| 28 |
932-0384 |
EXTENSION SPRING Not Available Price: |
| 29 |
732-04652 |
Spring, Compression, .535 x 1.751 Price: $5.88 |
| 30 |
732-04840 |
Spring, Torsion, .992 I.D X 1.17 O.D Price: $3.70 |
| 31 |
732-04909 |
Spring, Extension, 1.05 X 6.346 Price: $11.59 |
| 32 |
734-04155 |
Wheel, Deck, 5.0 Dia Ball Price: $19.04 |
| 33 |
735-0271A |
Bumper, .62 Dia X .3 Price: $7.84 |
| 34 |
936-0119 |
Washer, Lock, 5/16, Regular Duty Price: $4.29 |
| 35 |
738-04278 |
Shoulder Screw, 1/4-20 x 0.50 Price: $5.99 |
| 36 |
736-0262 |
Washer, Flat, .385 x .870 x .092 Price: $3.66 |
| 37 |
738-04091A |
Shoulder Spacer, .43 x .29, 5/16-18 Price: $3.50 |
| 38 |
748-04272 |
Shoulder Spacer, .50 x .145 Price: $6.47 |
| 39 |
736-0371 |
Washer, Flat, .343 X .880 X .062 Price: $3.94 |
| 40 |
783-07236 |
Pulley Cap Price: $4.64 |
| 41 |
738-04162C |
Shoulder Spacer, .8840 X .190 Price: $12.76 |
| 42 |
738-0754 |
Shoulder Screw, .437 Dia. X .54 Price: $3.76 |
| 43 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 45 |
747-05011 |
Rod, Keeper, Belt Price: $8.93 |
| 46 |
747-05052A |
DECK BRAKE ROD Price: $14.14 |
| 47 |
747-05141B |
DECK FRONT LIFT ROD This part replaces 747-05141A. Price: $19.44 |
| 48 |
747-05323 |
BELT KEEPER ROD Not Available Price: |
| 49 |
747-1116 |
Rod, Deck Release Price: $11.17 |
| 50 |
710-0376 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 51 |
720-05010 |
Cap, .290 x .500 Price: $3.70 |
| 52 |
783-07183A-0637 |
Belt Guide Price: $17.41 |
| 53 |
738-1186A |
Spindle Shaft, 6.05 LG. Price: $45.83 |
| 54 |
751B221535 |
Clamp, Casing Price: $8.93 |
| 55 |
954-04219 |
Belt, V-Typ, A Sec Price: $46.63 |
| 56 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 57 |
711-04847B |
Hinge Pin Price: $7.63 |
| 58 |
732-04372 |
Torsion Spring Price: $8.93 |
| 59 |
783-05946 |
IDLER PIVOT BRACKET Price: $33.69 |
| 60 |
783-06243-0637 |
Bracket, Cable, Deck Engagement Price: $9.09 |
| 61 |
783-06368A-0637 |
Bracket, Guard, Belt, 4.25 Pulley Price: $18.68 |
| 62 |
783-07234 |
IDLER BRACKET Price: $21.06 |
| 63 |
783-06074A |
CHUTE BRACKET Not Available Price: |
| 64 |
756-04356 |
Deck Pulley, 6.93 DIA Price: $34.95 |
| 65 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
| 66 |
750-04936 |
Spacer, .792 X 1.060 X 1.860 LG Price: $5.94 |
