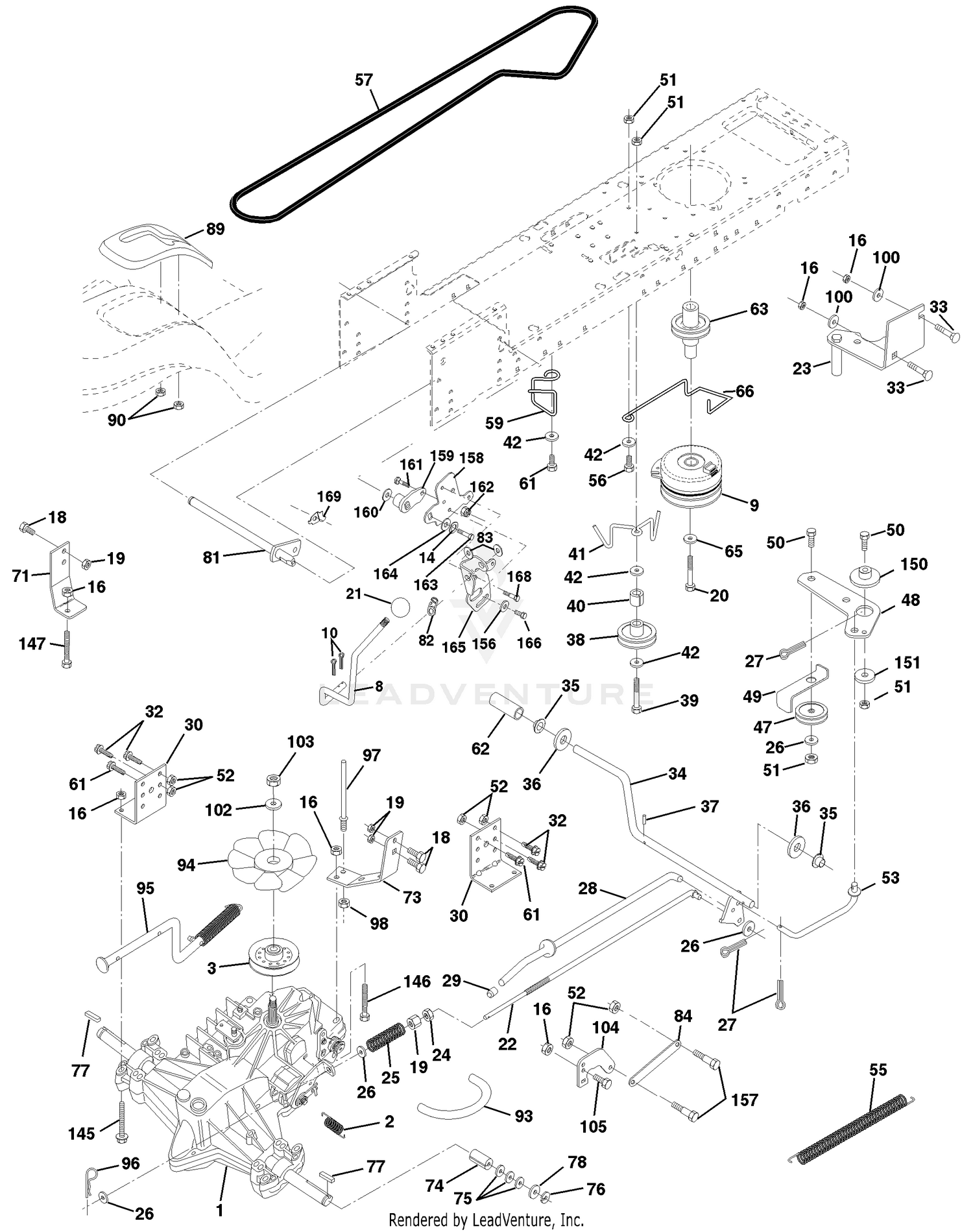

| Ref | Part Number | Description |
|---|
| 1 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 2 |
532142431 |
SPRING BRAKE Price: $4.99 |
| 2 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 3 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 4 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 5 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 8 |
532165866 |
ROD SHIFT FENDER ADJUST STLT Price: $24.99 |
| 9 |
532145028 |
CLUTCH.ELECT.EVX. Price: $299.99 |
| 9 |
98-7777 |
BOLT Price: $1.56 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 10 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 11 |
105-3748 |
GASKET-THERMOSTAT This part replaces 98-7776. Price: $4.31 |
| 12 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 13 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
98-7692 |
BOLT Price: $0.92 |
| 15 |
98-9356 |
BOLT Price: $2.06 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
532145627 |
ROD BRAKE HYDRO Price: $169.99 |
| 23 |
532154978 |
BRACKET, ASM CLUTCH MTG Price: $5.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532145868 |
PULLEY, CLUTCH ELECT EVX Price: $69.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532156347 |
STRAP TORQUE RH HYDRO Price: $4.99 |
| 74 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165591 |
Shaft Asm Cross Tapered 650 20 Price: Call Us |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532165815 |
LINK, TRANSAXLE Price: $7.99 |
| 89 |
532164890 |
SHIFT CONSOLE BLACK This part replaces 532166510. Price: $19.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $9.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 97 |
532140469 |
KEEPER BELT RH Price: $2.99 |
| 98 |
873510600 |
NUT Price: $4.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 102 |
532141322 |
WASHER Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 104 |
532140156 |
CONTROL ARM Price: $4.99 |
| 105 |
871070516 |
SCREW Price: $3.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 146 |
874490536 |
Bolt Hex Flanged 5/16-18 Unc x 2 Price: $4.99 |
| 147 |
874490524 |
Bolt Hex Flanged 5/16-18 Unc x 2 Price: $2.42 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 157 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 160 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga Price: $6.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
