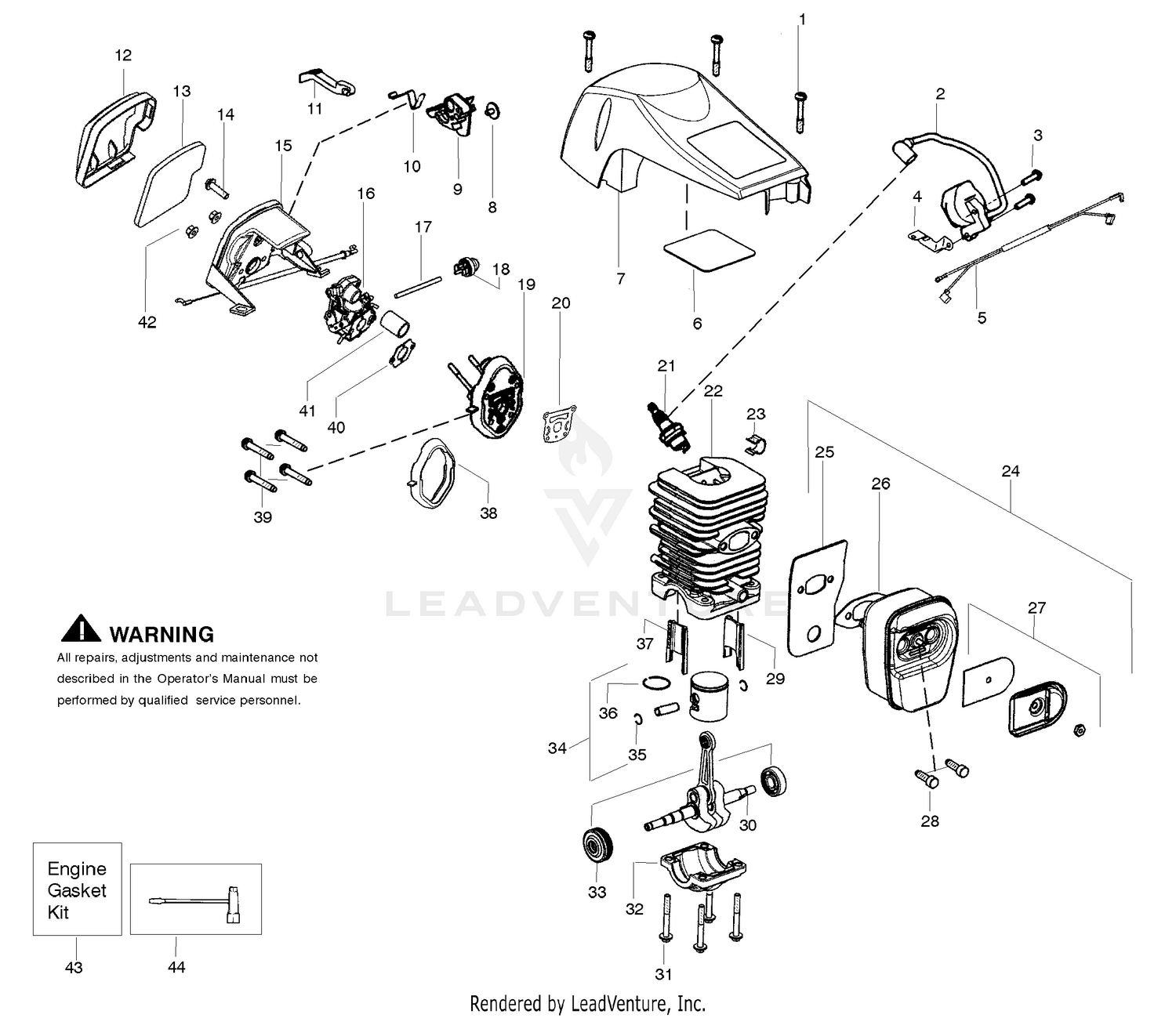

Engine Assembly
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 1 | 530016153 | Screw Price: $1.99 |
| 2 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 2 | 545115801 | Module-Ignition Price: $27.99 |
| 3 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 3 | 530016432 | Screw Price: $1.99 |
| 4 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 4 | 530058661 | Strap-Ground Price: $1.99 |
| 5 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 5 | 530057943 | Assy-Wire Harness Price: $5.99 |
| 6 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 | 530055698 | Reflector-Tape Price: $1.99 |
| 7 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 8 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 8 | 530016080 | Screw Price: $1.99 |
| 9 | 530057891 | Lever-Ignition Switch Price: $4.99 |
| 10 | 530057908 | Spring-Ignition Switch Price: $2.99 |
| 11 | 530059399 | Knob-Choke Price: $1.99 |
| 12 | 530059001 | Cover-Air Filter Price: $3.99 |
| 13 | 530057869 | Filter-Air Price: $1.99 |
| 14 | 530016425 | Screw Price: $1.99 |
| 15 | 545046901 | Housing-Air Filter w/cable Price: $14.99 |
| 18 | 530047721 | Bulb-Purge "snap-in" Price: $3.99 |
| 23 | 530058660 | Clip-High Tension Lead Price: $1.99 |
| 25 | 530057942 | Backplate-Muffler Price: $5.99 |
| 27 | 545006056 | Kit-Spark Arrestor Price: $6.99 |
| 28 | 530016338 | Bolt-Muffler Price: $1.99 |
| 30 | 545112901 | Assy-Crankshaft/Rod This part replaces 530150392. Price: $49.99 |
| 31 | 530016417 | Bolt Price: $1.99 |
| 32 | 530057941 | Cap-Crankcase Price: $5.99 |
| 33 | 530056363 | Assy-Bearing/Seal Price: $11.99 |
| 35 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 36 | 545160401 | Ring-Piston Price: $2.99 |
| 39 | 530016426 | Screw Price: $1.99 |
| 41 | 530057926 | Tube-Intake Price: $1.99 |
| 42 | 530016101 | Nut-Carb. Price: $1.99 |
| 44 | 530031163 | Bar Wrench This part replaces 530031135. Price: $4.99 |
