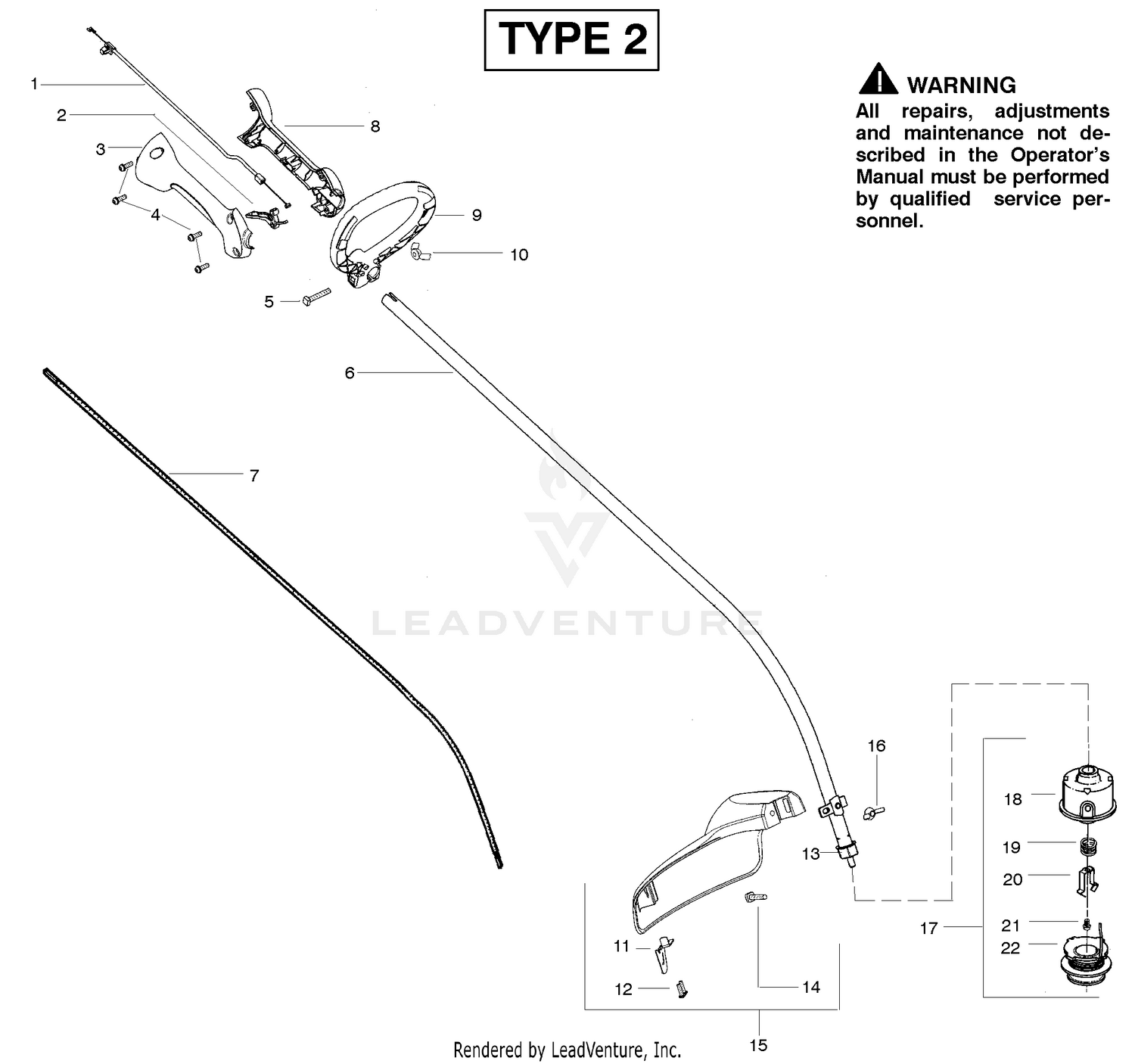

Engine Type 2
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530057991 | Assy-Throttle Cable Price: $8.99 |
| 1 | SGH08313-03 | HEAD-TINE, ADAPTER Price: $285.73 |
| 2 | 530058000 | Trigger Price: $2.99 |
| 2 | SG715706 | SHANK-ADAPTER Price: $16.94 |
| 3 | 530057582 | Throttle Hsg. (Right) Price: $7.99 |
| 4 | 530015880 | Screw-Throttle Hsg. Price: $1.99 |
| 5 | 530015821 | Bolt Price: $1.99 |
| 6 | 530071874 | Assy-Drive Shaft Hsg. Price: $24.99 |
| 7 | 530096275 | Shaft- Flex Price: $9.99 |
| 8 | 530057581 | Throttle Hsg. (Left) Price: $7.99 |
| 10 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 12 | 530015957 | Screw This part replaces 530015966. Price: $1.99 |
| 13 | 530095563 | Dust Cup Price: $9.99 |
| 14 | 530015820 | Bolt Price: $1.99 |
| 16 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 18 | 530069690 | Assy-Hub Price: $4.00 |
| 19 | 530401464 | Spring-Compression Price: $0.99 |
| 20 | 530401466 | Clip-Retainer-Head Price: $1.99 |
| 21 | 530401467 | Screw Price: Call Us |
| 22 | 952711527 | Accy- Spool w/Line Price: $7.95 |
