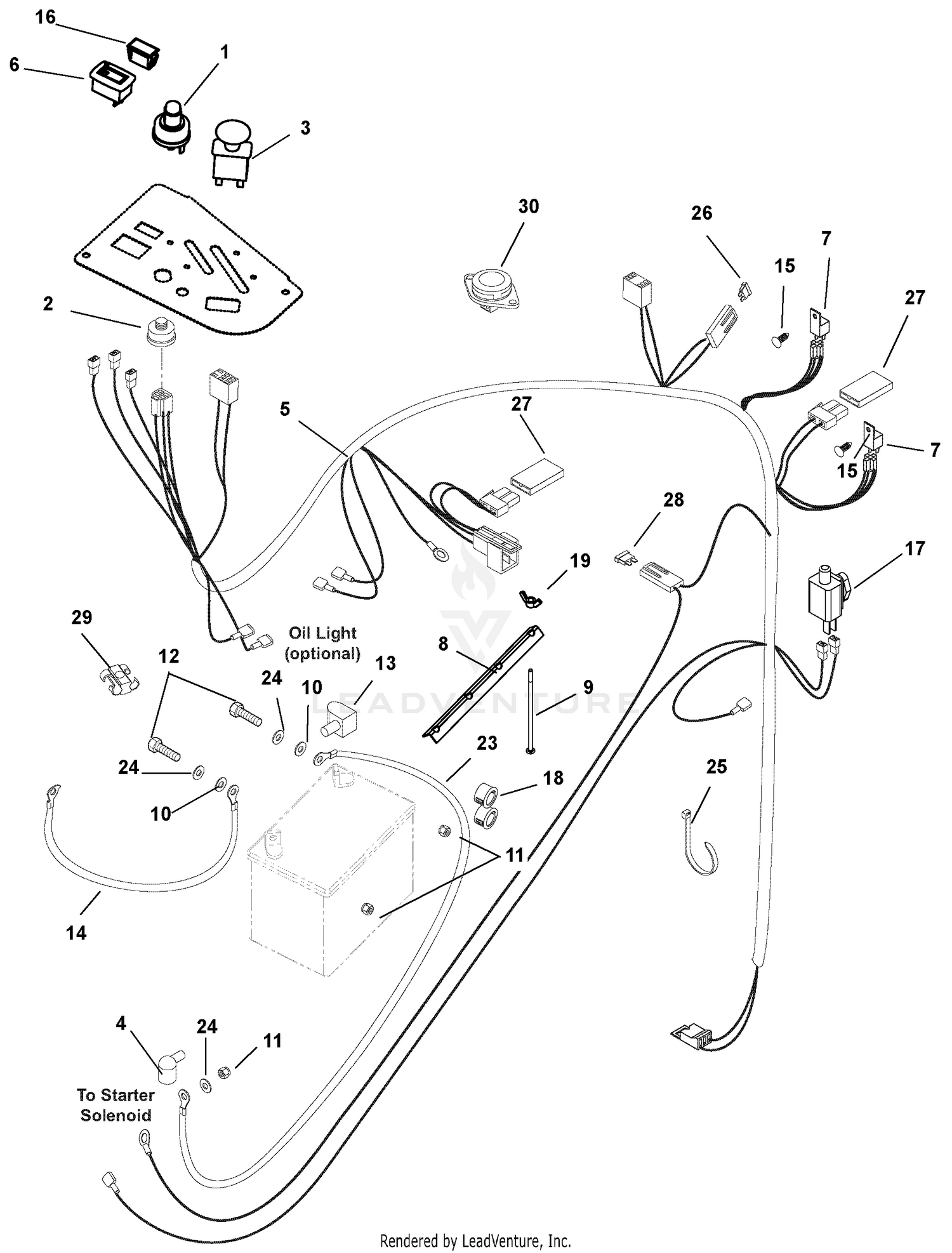

| Ref | Part Number | Description |
|---|
| 1 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 2 |
04331700 |
SWITCH, IGNITION Price: $38.95 |
| 3 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 4 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 5 |
04762400 |
HARNESS-WIRE This part replaces 03288500. Price: $142.95 |
| 6 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 7 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 00432100. Price: $19.95 |
| 8 |
03494051 |
HOLD DOWN Price: $10.45 |
| 9 |
06200424 |
BTL,RHSN .250-20 X 7.5 G5 ZCC This part replaces 06226400. Price: $4.45 |
| 10 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 11 |
06500916 |
NUT-STD .250-20 G2 ZCC This part replaces 06533200. Price: $0.45 |
| 12 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 13 |
07505700 |
INSULATOR Price: $8.95 |
| 14 |
03288100 |
CABLE-NEGATIVE BATTERY 24.00" Price: $15.95 |
| 15 |
07500125 |
RIVET, .25 NYLON PANEL Price: $0.95 |
| 16 |
07527800 |
PLUG-HOLE .50 DIA Price: Call Us |
| 18 |
07500126 |
BUSH, PANEL SNAP .687X.875X.56 Price: $3.45 |
| 19 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 20 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 21 |
06500923 |
NUT-JAM .312-24 ZCC This part replaces 06536700. Price: $0.95 |
| 22 |
06300125 |
WSHR-LK-EXT 0.326X0.599X0.031 ZCC This part replaces 06307200. Price: $0.45 |
| 23 |
03492500 |
CABLE, STARTER .31X23.00X.31 Price: $19.45 |
| 24 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 25 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 26 |
00580600 |
FUSE 20AMP Price: $5.95 |
| 27 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 28 |
08961800 |
FUSE,25 AMP This part replaces 09351100. Price: $3.45 |
| 29 |
07001622 |
CLIP,T,.31-.38, Price: $3.45 |
