Parts Catalog

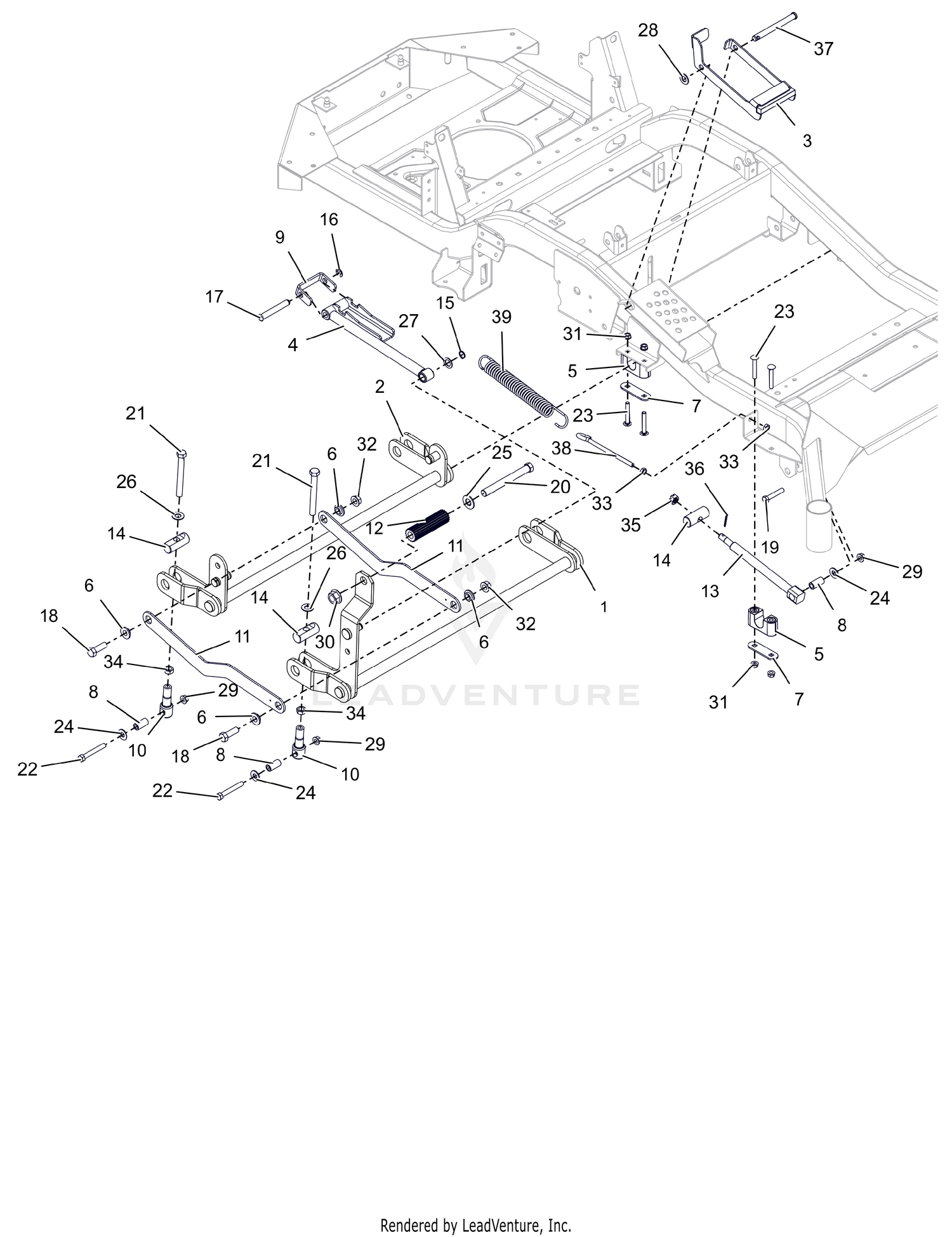

Deck Lift - RH - 52"

Parts (38)

Ref	Part Number	Description
1	05019659	WLDMT, FRONT DECK LIFT PIVOT Price: $111.45
2	05019759	WLDMT, REAR DECK LIFT PIVOT Price: Call Us
3	05025259	BRKT, HOC TRANSFER LOCK Price: $32.95
4	05186359	WLDMT, HOC ARM Price: $67.45
5	07500414	ASM-BUSHING, DECK LIFT Price: $21.95
6	03989100	BSHG-FLG .515X.750X.395X1.120 Price: $3.45
7	04766551	PLATE, BEARING SUPPORT Price: $7.45
8	04895200	SPACER, DECK LEVELING Price: $2.45
9	05077551	BRKT, HOC LINE Price: $11.45
10	05081400	LINK, DECK LIFT FORMED Price: $14.45
11	05083959	LINK, DECK LIFT Price: $10.95
12	05120951	ROD, FOOT PEDAL (BLACK) Price: $20.45
13	05126700	DRAG,LINK-HD Price: $18.45
14	05149500	PIN, DECK LIFT Price: $14.95
15	05709200	RG-RTNG-EXT .625X.050 Price: $2.45
16	05710200	RG-RTNG-EXT .500X.042 (E) Price: $0.95
17	05800210	PIN, .499/.494 x 3.385 CLEVIS Price: $4.45
18	05901631	BLT,HEX .50-13X1.50 G5 ZCC Price: $3.95
19	05901718	BLT,HEX .38-16X2.00 G5 ZCC Price: $2.95
20	05901730	BLT, HEX .62-11X5.50 G5 FBP Price: $6.45
21	05901736	BLT, HEX .50-13X4.50F G8 ZCC Price: $8.95
22	05901813	BLT, HEX .38-16X2.75 G8 ZCC Price: $1.45
23	06200311	BLT, RHSSN.31-18X2.25 G5 ZCC Price: $3.95
24	06401008	WSHR,FLT .438X1.00X.083 ZCC Price: $1.45
25	06401039	WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45
26	06401116	WSHR, FLT .557X1.040X.102 ZCC Price: $1.45
27	06401117	WSHR, FLT .630X1.005X.062 ZCC Price: $0.45
28	06443300	WSHR-FL-NYL .518X1.000X.080 Price: $0.45
29	06500822	NUT-LK-TOP-FLG .38-16 ZC120 Price: $0.95
30	06500835	NUT,FLG-TOP LK .625-11 FBP Price: $6.45
31	06500840	NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95
32	06500907	NUT-LK-TOP-FLG .500-13 GF ZCC Price: $1.45
33	06500910	NUT-JAM .375-16 G2 ZCC Price: $0.95
34	06500911	NUT-JAM .500-13 G2 ZCC Price: $1.45
35	06505000	NUT-SL .50-13 Price: $3.45
36	06700212	PIN,CTR.12X1.25EXTPRSQCT ZC120 Price: $0.45
37	06800201	PIN-SLIC .50X4.97X4.55 -ZCC Price: $7.45
38	07001814	BOLT,.38-16 X 5.25-.62 DIA EYE Price: $12.45
