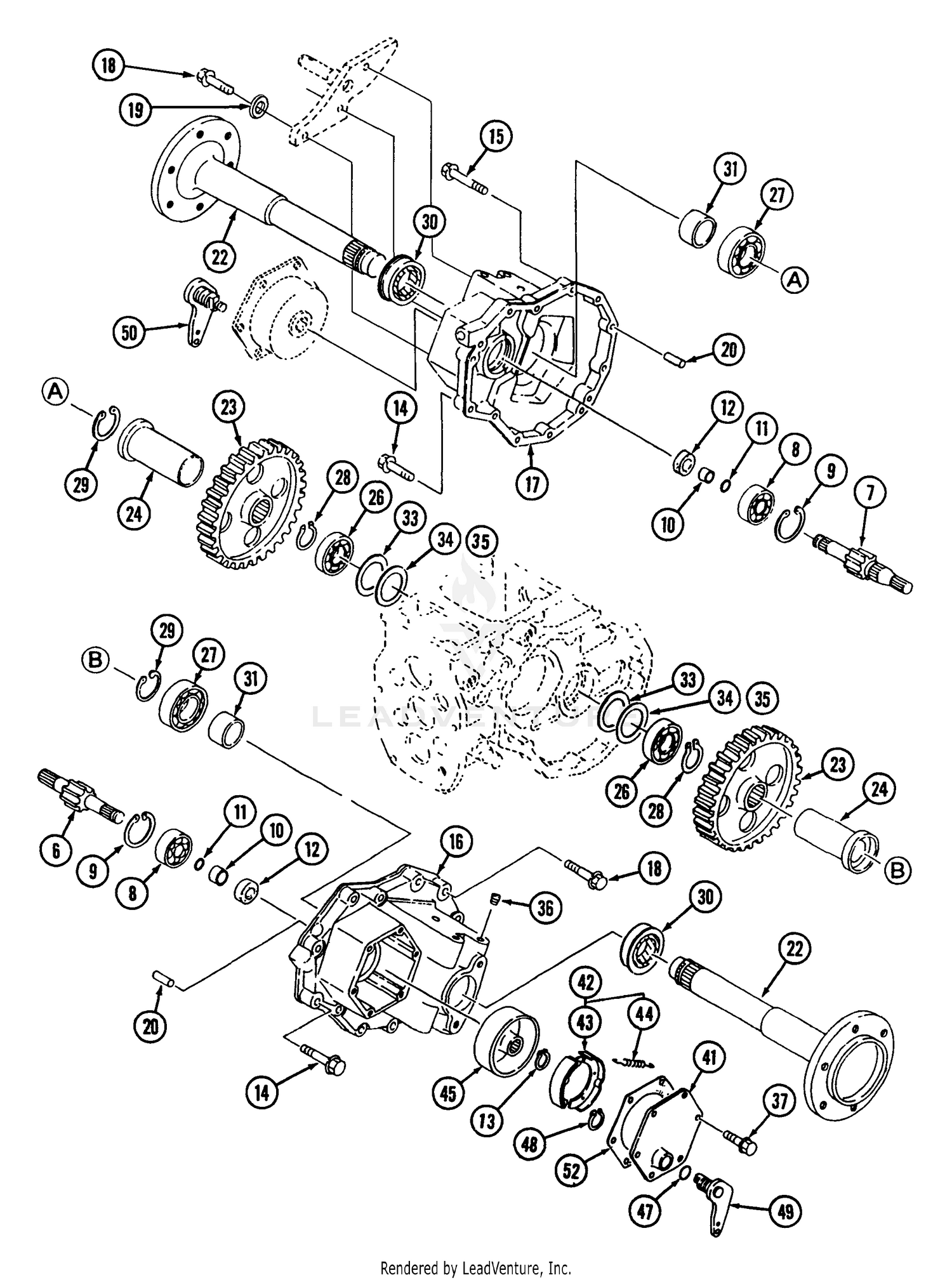

Rear Axle
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 6 | MA-19631511000 | SHAFT L.H Not Available Price: |
| 7 | MA-19631512000 | SHAFT, R.H. Not Available Price: |
| 8 | MA-07520663050 | BEARING Not Available Price: |
| 9 | MA-07410006201 | RING-"C" Not Available Price: |
| 10 | MA-11351402100 | BUSHING Not Available Price: |
| 11 | MA-08300100250 | O-RING Not Available Price: |
| 12 | MA-08411355511 | SEAL, OIL Not Available Price: |
| 13 | MA-07400002500 | RING-"C" Not Available Price: |
| 18 | MA-F1550110055 | BOLT,W/SPRING WASH Not Available Price: |
| 19 | None | UNKNOWN |
| 20 | MA-05401010020 | PIN Not Available Price: |
| 22 | MA-19631516AG0 | SHAFT AXLE Not Available Price: |
| 23 | MA-10321509000 | GEAR 72 Not Available Price: |
| 24 | MA-19631518000 | COLLAR Not Available Price: |
| 26 | MA-07500062070 | BEARING NSK 6207 Not Available Price: |
| 27 | MA-07500062090 | BEARING NACHI 6209 Not Available Price: |
| 28 | MA-07400004501 | SNAP RING Not Available Price: |
| 29 | MA-07410008501 | RING, SNAP Not Available Price: |
| 30 | MA-13331454000 | SEAL, OIL Not Available Price: |
| 31 | MA-13331456000 | BUSHING Not Available Price: |
| 33 | MA-07300001204 | Liner t=0.4 Price: Call Us |
| 34 | MA-07300001208 | Liner t=0.8 Price: Call Us |
| 35 | MA-07300007202 | LINER Not Available Price: |
| 36 | MA-05534-14000 | PLUG Not Available Price: |
| 37 | MA-F1540108020 | BOLT,W/SPRING WASH Not Available Price: |
| 41 | MA-19861452AG0 | Cover, Brake Price: $125.65 |
| 42 | MA-19861467000 | SHOE SET Not Available Price: |
| 45 | MA-19861456000 | DRUM BRAKE Not Available Price: |
| 47 | MA-08300100180 | O-RING Not Available Price: |
| 48 | MA-07400002200 | RING Not Available Price: |
| 49 | MA-19861455AG0 | CAM BRAKE, L.H. Not Available Price: |
| 50 | MA-19861462AG0 | CAM, BRAKE (RH) Not Available Price: |
| 501192201 | 501192201 | TOOL BAG Price: $14.99 |
| 501600203 | 501600203 | SCREWDRIVER Price: $2.99 |
| 502114602 | 531222001 | COMBINATION WRENCH COMBI TOOL This part replaces 502114602. Price: $5.99 |
| 502215801 | 502215801 | L-KEY WRENCH Price: $2.99 |
| 502262301 | 544359101 | TRANSPORT GUARD This part replaces 502262301. Price: $7.99 |
| 502285901 | 502285901 | LOCKING PIN Price: $4.99 |
| 503210716 | 503210716 | SCREW Price: $2.99 |
| 503724901 | 503724901 | ADAPTER Price: $11.34 |
| 503742901 | 503742901 | DECAL Price: $3.99 |
| 503744001 | 503744001 | BLADE GUARD Price: $32.99 |
| 503745004 | 503745004 | GRASS SHIELD Price: $27.99 |
| 503773901 | 501320402 | ADAPTER This part replaces 503773901. Price: $37.99 |
| 503776301 | 503776301 | SUPPORT PLATE Price: $7.99 |
| 503890101 | 503890101 | SUPPORTING CUP Price: $14.99 |
| 503890102 | 503890102 | SUPPORT CUP Price: $17.99 |
| 503976401 | 503976401 | BEVEL GEAR GREASE Price: $14.99 |
| 531009248 | 596287501 | HUS AIR FILTER OIL 1L / 33.8OZ This part replaces 531009248. Price: $34.99 |
| 537216201 | 537216202 | Harness - Diagonal with sign This part replaces 537216201. Price: $8.99 |
| 537216202 | 537216202 | Harness - Diagonal with sign Price: $8.99 |
| 537292601 | 537234901 | DRIVE DISC This part replaces 537292601. Price: $19.99 |
| 537312901 | 537312901 | BLADE GUARD TRANSPORT Price: $7.99 |
