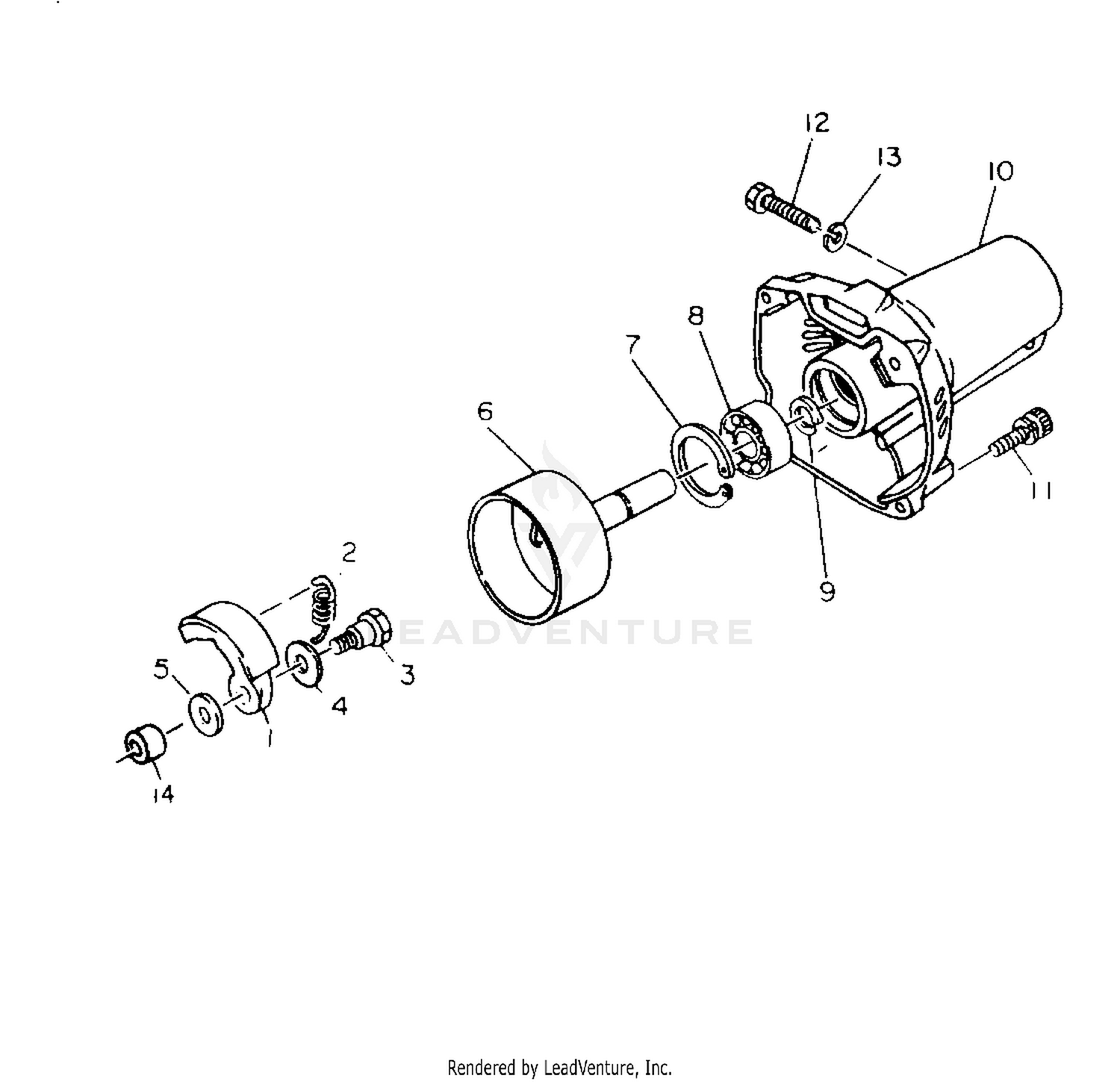

| Ref | Part Number | Description |
|---|
| 1 |
213125S |
Shoe Price: Call Us |
| 1 |
3296-5 |
NUT-HEX Price: $3.09 |
| 2 |
18-7260 |
DISCONTINUED Price: Call Us |
| 2 |
217041S |
Spring Price: Call Us |
| 3 |
18-7530 |
BALL JOINT ASSY CENTE This part replaces 18-7550. Price: $41.95 |
| 3 |
217009S |
Bolt Price: Call Us |
| 4 |
18-7450 |
UPPER RAKE WA RH *R Price: $333.54 |
| 4 |
217010S |
Washer Price: Call Us |
| 5 |
217011S |
Washer Price: Call Us |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
217008S |
Drum (Outside vendor part number) Price: Call Us |
| 6 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 7 |
211237S |
Ring, Inner Retainer Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
18-7560 |
DISCONTINUED Price: Call Us |
| 8 |
211233S |
Ball Bearing Price: Call Us |
| 9 |
20-4670 |
DRAG LINK Price: $15.18 |
| 9 |
211238S |
Ring, Outer Retaining Price: Call Us |
| 10 |
18-7570-01 |
WEIGHT-DRAG (MAIN) This part replaces 18-7570. Price: $43.13 |
| 10 |
216829S |
Housing Price: Call Us |
| 11 |
217007S |
Bolt, Socket Head Price: Call Us |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
217006S |
Bolt Price: Call Us |
| 12 |
3217-6 |
NUT-HEX Price: $1.19 |
| 13 |
206294S |
Washer, Spring Price: Call Us |
| 14 |
18-7520 |
DISCONTINUED Price: Call Us |
| 15 |
18-7380 |
DISCONTINUED Price: Call Us |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 17 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
18-7590 |
WEIGHT-DRAG (SECOND)*R Price: $17.41 |
| 19 |
18-7580 |
DISCONTINUED Price: Call Us |
| 20 |
18-7420 |
L/H UPPER RAKE WA *R Price: $236.44 |
| 21 |
3217-5 |
NUT-HEX Price: $0.25 |
| 22 |
325-3 |
SCREW-HH Price: $1.49 |
| 23 |
321-4 |
SCREW-HH Price: $0.99 |
| 24 |
18-7660-01 |
SWIVEL BRKT ASM This part replaces 18-7660. Price: $65.88 |
| 25 |
18-7650-01 |
WEIGHT-DRAG This part replaces 18-7650. Price: $23.01 |
| 26 |
77-5080-01 |
DRAG-SWIVEL This part replaces 18-7640. Price: $18.00 |
| 27 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 28 |
321-5 |
SCREW-HH This part replaces 321-31. Price: $0.22 |
| 29 |
18-7460 |
DISCONTINUED Price: Call Us |
| 30 |
18-7360 |
LH WHL HOOP WA *R Price: $429.11 |
| 31 |
323-34 |
SCREW-HH This part replaces 323-3. Price: $0.54 |
| 32 |
325-5 |
SCREW-HH Price: $1.20 |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 34 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 35 |
323-6 |
SCREW-HH Price: $0.66 |
| 36 |
18-7220 |
DISCONTINUED Price: Call Us |
| 38 |
18-7170 |
DISCONTINUED Price: Call Us |
| 39 |
18-7280 |
RAKE MT WA *R Price: $660.32 |
| 40 |
18-7530 |
BALL JOINT ASSY CENTE Price: $41.95 |
