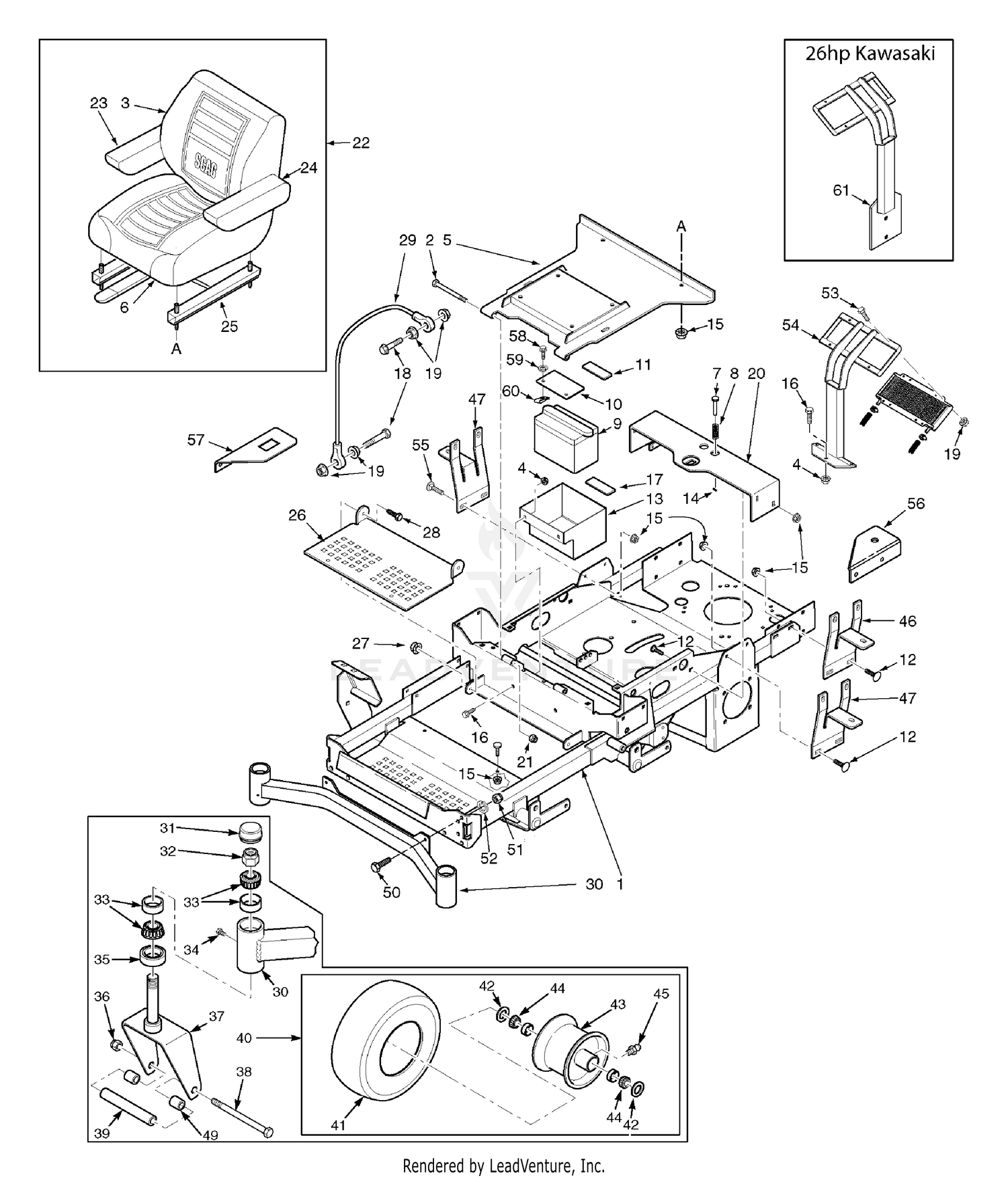

| Ref | Part Number | Description |
|---|
| 1 |
461918 |
Main Frame Assembly w/decals Price: Call Us |
| 2 |
04001-73 |
Bolt, Hex Head 5/16-18 x 3-3/4" Price: Call Us |
| 3 |
482938 |
Back Cover Price: Call Us |
| 4 |
04019-04 |
Nut, Serr. Flange 3/8-16 Price: Call Us |
| 5 |
461989 |
Plate, Seat Mounting w/decals This part replaces 451461. Price: Call Us |
| 6 |
482939 |
Cushion Cover Price: Call Us |
| 7 |
43462 |
Pin Retainer, Spring Price: Call Us |
| 8 |
481389 |
Spring Price: Call Us |
| 10 |
423571 |
Battery Cover Price: Call Us |
| 11 |
482553 |
Battery Hold Down Pad Price: Call Us |
| 12 |
04003-12 |
Bolt, Carr. 5/16-18 x 3/4" Price: Call Us |
| 13 |
423556 |
Battery Box Price: Call Us |
| 14 |
04060-01 |
Roll Pin, Spring 5/32 x 3/4" Price: Call Us |
| 15 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 16 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 17 |
482552 |
Pad, Rubber Price: Call Us |
| 18 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 19 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 20 |
451462 |
Seat Base Support Price: Call Us |
| 21 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 22 |
482840 |
Seat Assembly w/ adj. rails Price: Call Us |
| 23 |
482616 |
Armrest Cover Price: Call Us |
| 24 |
482616 |
Armrest Cover Price: Call Us |
| 25 |
482937 |
Seat Track Set Price: Call Us |
| 26 |
423557 |
Footplate Price: Call Us |
| 27 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
48566 |
Cable, Seat Stop Price: Call Us |
| 30 |
452205 |
Weldment, Caster Support This part replaces 451827. Price: Call Us |
| 31 |
481559 |
Cap, Grease Price: Call Us |
| 32 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 33 |
48668 |
Bearing Set Price: Call Us |
| 34 |
482028-01 |
Plug, 1/4-28 Price: Call Us |
| 35 |
481025 |
Seal, 2.0" OD x 1.625" ID Price: Call Us |
| 36 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 37 |
451658 |
Yoke, Front Caster Wheel Price: Call Us |
| 38 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" Price: Call Us |
| 39 |
43583 |
Sleeve Price: Call Us |
| 41 |
482619 |
Tire, 13 x 6.5 Smooth Price: Call Us |
| 42 |
482622 |
Seal Price: Call Us |
| 44 |
482621 |
Roller Bearing Price: Call Us |
| 45 |
48114-10 |
Fitting, Grease Price: Call Us |
| 46 |
423575 |
Mounting Bracket, Oil Tank Price: Call Us |
| 47 |
423764 |
Mounting Bracket, Fuel Tank Price: Call Us |
| 48 |
482633 |
Seat Pan Price: Call Us |
| 49 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 50 |
04001-28 |
Bolt, Hex Head 7/16-14 x 1-1/4" Price: Call Us |
| 51 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 52 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 53 |
04001-06 |
Bolt, Hex Head 1/4-20 x 5/8" Price: Call Us |
| 54 |
451580 |
Support Weldment, Oil Cooler Price: Call Us |
| 55 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 56 |
423912 |
Bracket, Fuel Valve Price: Call Us |
| 57 |
424112 |
Bracket, Hour Meter Price: Call Us |
| 58 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 59 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 60 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 462327 |
CASTER |
SUPT W/ GREASE CAPS, SMTC This part replaces 451826. Price: Call Us 462327 |
| 482617 |
Armrest, |
LH Price: Call Us 482617 |
| 482618 |
Armrest, |
RH Price: Call Us 482618 |
