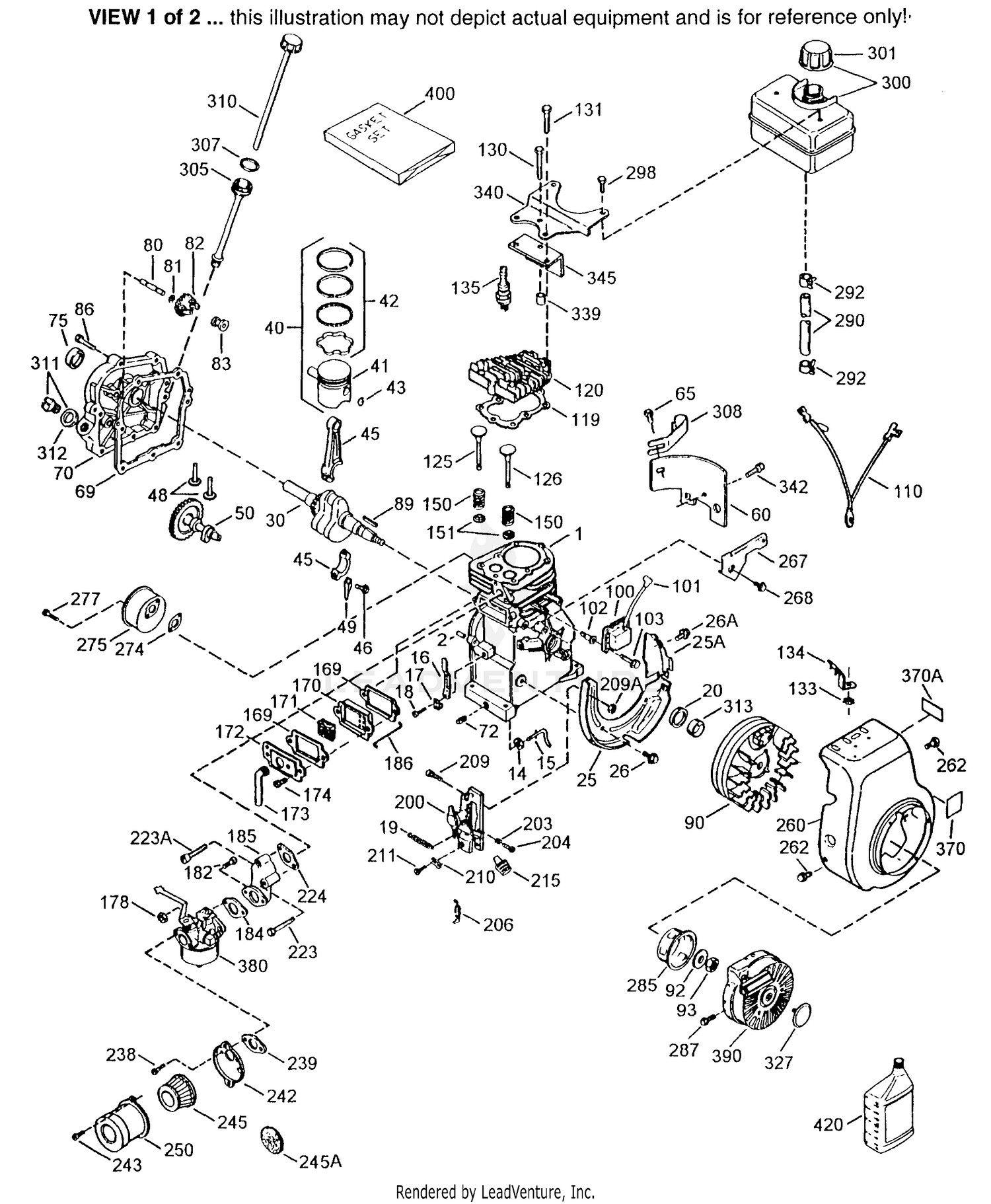

| Ref | Part Number | Description |
|---|
| 1 |
36469A |
CYLINDER Price: $125.55 |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
31334 |
GOVERNOR ROD Price: $3.89 |
| 16 |
37735 |
LINK & LEVER This part replaces 31510. Price: $9.95 |
| 17 |
31335 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW Price: $1.18 |
| 19 |
31426 |
EXT SPRING Price: $2.80 |
| 20 |
32600 |
OIL SEAL Price: $4.80 |
| 25A |
35883 |
EXTENSION Price: $1.26 |
| 30 |
34728 |
CRANKSHAFT Price: Call Us |
| 40 |
40004 |
PISTON ASSY STD Price: $53.08 |
| 40 |
40045 |
PISTON ASSY 010 This part replaces 40005. Price: $55.17 |
| 42 |
40006 |
RING SET STD Price: $30.58 |
| 42 |
40045 |
PISTON ASSY 010 This part replaces 40007. Price: $55.17 |
| 43 |
20381 |
RET RING Price: $1.26 |
| 43 |
630738 |
SPRING Price: $1.25 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 45 |
32875A |
CONN ROD Price: $33.84 |
| 46 |
32610A |
SCREW Price: $1.26 |
| 48 |
27241 |
VALVE LIFTER Price: $3.89 |
| 49 |
32654 |
OIL DIPPER Price: $6.40 |
| 50 |
37040 |
CAMSHAFT This part replaces 33158. Price: $21.67 |
| 60 |
29745 |
EXTENSION Price: $2.62 |
| 65 |
30200 |
SCREW Price: $3.25 |
| 69 |
27677A |
GASKET Price: $5.31 |
| 70 |
30756C |
CYL COVER Price: $77.56 |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 75 |
28540 |
OIL SEAL Price: $5.21 |
| 80 |
30574A |
GOV SHAFT Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 86 |
650488 |
SCREW Price: $1.25 |
| 89 |
610961 |
KEY Price: $1.09 |
| 90 |
611195 |
FLYWHEEL Price: $78.10 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650816 |
NUT Price: $2.95 |
| 100 |
34443D |
LAMINATION This part replaces 34443C. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 102 |
651024 |
STUD Price: $2.60 |
| 103 |
651007 |
SCREW Price: $1.17 |
| 110 |
35182 |
GROUND WIRE Price: $1.26 |
| 119 |
36443 |
GASKET Price: $4.16 |
| 120 |
37675 |
CYL HEAD This part replaces 36441. Price: $29.58 |
| 125 |
36471 |
EXH VALVE STD Price: $9.82 |
| 125 |
36472 |
EXH VALVE OS Price: Call Us |
| 126 |
32644A |
INT VALVE ST Price: $6.91 |
| 126 |
32645A |
INT VALVE OS Price: $43.82 |
| 130 |
6021A |
SCREW Price: $1.26 |
| 130 |
650694A |
SCREW Price: $2.15 |
| 130B |
650737 |
SCREW Price: $1.25 |
| 135 |
33636 |
SPARK PLUG Price: $5.05 |
| 150 |
31672 |
VALVE SPRING Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 169 |
27234A |
GASKET Price: $3.95 |
| 170 |
27666 |
BREATHER Price: $10.56 |
| 171 |
31410 |
ELEMENT Price: $1.19 |
| 172 |
38020 |
COVER Price: $1.08 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 178 |
29752 |
NUT Price: $1.26 |
| 181 |
650870 |
SCREW Price: $1.20 |
| 182 |
6201 |
SCREW Price: $1.26 |
| 184 |
26756 |
Gasket Price: $2.95 |
| 185 |
33666 |
INTAKE PIPE Price: Call Us |
| 186 |
32698 |
GOV LINK Price: $1.26 |
| 200 |
36677 |
CONTROL ASSY Price: $29.60 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 212 |
36689 |
BUSHING Price: $4.60 |
| 212A |
36688 |
PLATE Price: $1.15 |
| 215 |
32410 |
KNOB Price: $3.89 |
| 216 |
36690 |
LEVER Price: $2.43 |
| 217 |
36687 |
CONT LEVER Price: $10.00 |
| 222 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 223 |
650664 |
SCREW Price: $1.25 |
| 223A |
30646 |
SCREW Price: $6.40 |
| 224 |
33673A |
GASKET Price: $3.95 |
| 238 |
650152 |
SCREW Price: $1.60 |
| 239 |
27272A |
GASKET Price: $1.18 |
| 242 |
31914 |
BRACKET Price: $16.29 |
| 245 |
30727 |
AIR CLEANER Price: $5.95 |
| 250 |
31715 |
CLEANER BODY Price: $15.02 |
| 260 |
37600 |
BLOWER HSG Price: $34.61 |
| 264A |
650802 |
SCREW Price: $1.25 |
| 267 |
34212 |
BRACKET Price: $1.26 |
| 285 |
36467A |
STARTER CUP Price: $6.82 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
29774 |
FUEL LINE Price: $2.78 |
| 290 |
30705 |
FUEL LINE Price: $11.47 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 295 |
35857 |
FUEL FITTING Price: $9.95 |
| 298 |
650665 |
SCREW Price: $1.25 |
| 300 |
35584 |
FUEL TANK Price: $28.00 |
| 301 |
37844 |
FUEL CAP This part replaces 36246. Price: $4.19 |
| 305 |
35554 |
FILLER TUBE Price: $14.00 |
| 307 |
35499 |
O RING Price: $0.88 |
| 310 |
35582 |
DIPSTICK Price: $3.89 |
| 311 |
27625 |
FILLER PLUG Price: $1.65 |
| 312 |
29673 |
GASKET Price: $1.26 |
| 313 |
34080 |
SPACER Price: $1.26 |
| 340 |
36247 |
TANK BRACKET Price: $8.21 |
| 342 |
650751 |
SCREW Price: $1.25 |
| 345 |
33344 |
BAFFLE Price: $3.79 |
| 355 |
590574 |
START HANDLE Price: $4.25 |
| 370 |
35274 |
DECAL Price: $1.00 |
| 370 |
35703 |
DECAL Price: $1.00 |
| 370 |
36695 |
DECAL Price: $1.00 |
| 380 |
631923 |
CARBURETOR Price: $86.47 |
| 390 |
590787 |
STARTER This part replaces 590742. Price: $37.98 |
| 400 |
36442 |
GASKET SET Price: $17.95 |
