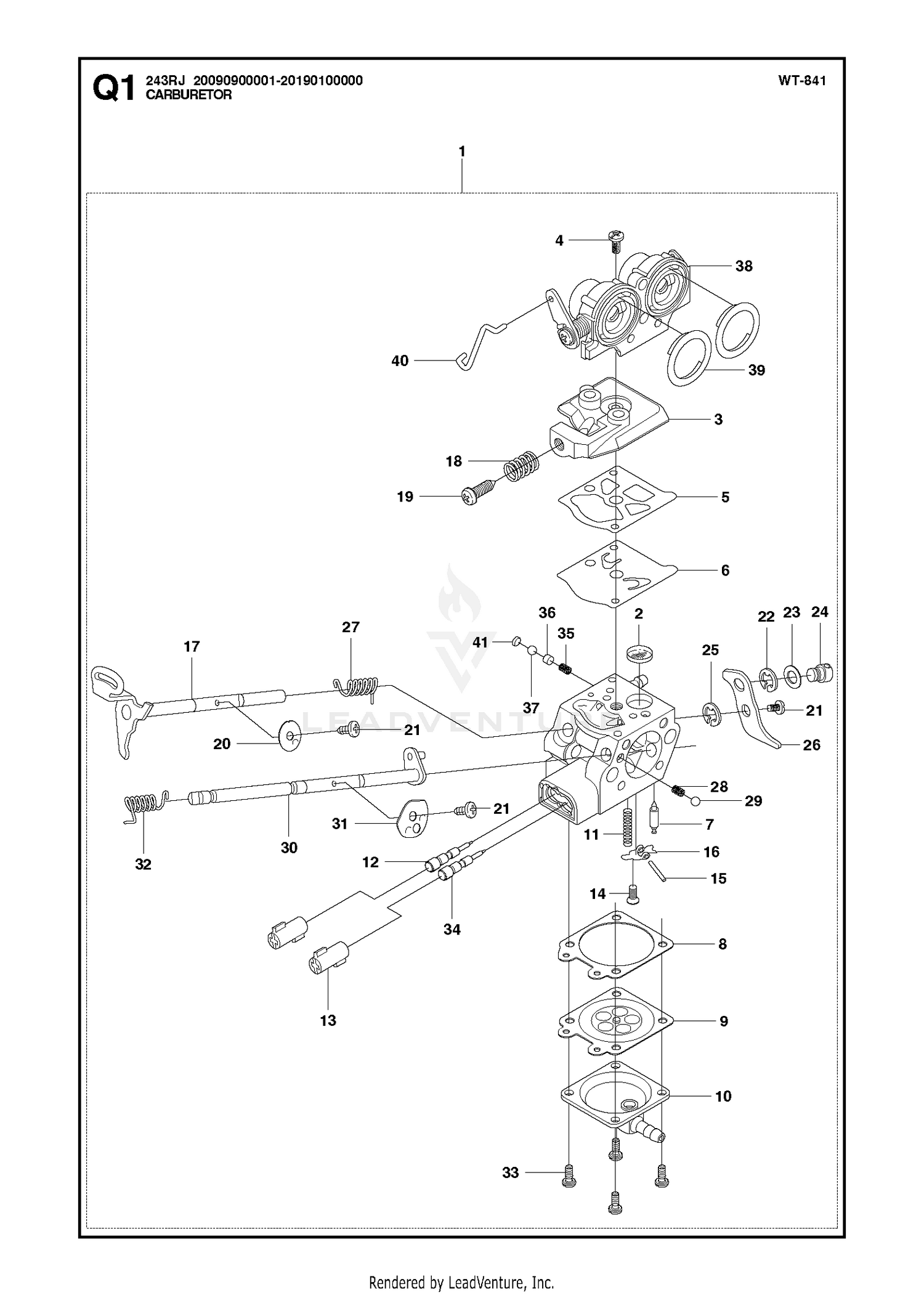

CARBURETOR
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 521625001 | Price: Call Us |
| 1 | SG506000 | GEARBOX ASM Price: $10,181.18 |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 2 | SG4171401 | CONE-SHAFT, LG Price: $92.57 |
| 3 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 3 | 521639801 | COVER Price: $11.92 |
| 4 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 4 | 521640001 | SCREW Price: $6.33 |
| 5 | 323-4 | SCREW-HH Price: $1.02 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 513204801 | Price: Call Us |
| 6 | SG528018 | PTO #8 W/ADJ. CLUTCH ASM Price: $2,045.59 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 7 | SG555500 | KEY-SQUARE Price: $11.63 |
| 8 | 514189301 | Price: Call Us |
| 8 | SG541020-03 | BRACKET-IDLER Price: $178.12 |
| 9 | 119-1042 | SCREW-HH Price: $9.02 |
| 9 | 505056401 | DIAPHRAGM Price: $14.99 |
| 10 | 521639701 | COVER Price: $24.45 |
| 10 | SG237528 | SPROCKET-GEARBOX Price: $700.29 |
| 11 | SG237529 | HUB-GEARBOX Price: $360.44 |
| 12 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 12 | 521585401 | NEEDLE Price: $27.99 |
| 13 | 521116901 | CAP Price: $7.99 |
| 13 | SG271517 | SCREW-HH Price: $6.79 |
| 14 | 520977301 | SCREW Price: $4.99 |
| 14 | 99-4371 | NUT-LOCK Price: $3.23 |
| 15 | 520977401 | PIN Price: $4.99 |
| 15 | SG575100 | SCREW-HH Price: $87.26 |
| 16 | 520977201 | LEVER Price: $4.99 |
| 16 | SG547300 | WASHER-GROOVED Price: $28.84 |
| 17 | 3217-7 | NUT-HEX Price: $0.28 |
| 17 | 521640401 | SHAFT Price: $23.34 |
| 18 | 140-7923 | SCREW-HH This part replaces SG584300. Price: $1.43 |
| 18 | 513225601 | SPRING Price: $2.69 |
| 19 | 513192901 | SCREW Price: $3.92 |
| 19 | SG580175 | CHAIN-O-RING Price: $1,844.99 |
| 20 | 121-6855 | NUT-HH Price: $14.25 |
| 20 | 528705301 | Price: Call Us |
| 21 | 520759801 | SCREW Price: $2.99 |
| 21 | SG511290 | IDLER SPROCKET W/ BEARING ASM Price: $195.29 |
| 22 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 22 | SG571450 | NUT-HJ Price: $5.90 |
| 23 | 100-7607 | WASHER-LOCK Price: $2.71 |
| 23 | 516524201 | WASHER Price: $2.99 |
| 24 | 33119-040 | SCREW-HH Price: $39.90 |
| 24 | 513400801 | SWIVEL Price: $11.99 |
| 25 | 505056501 | E-RING Price: $3.99 |
| 26 | 521645501 | LEVER, THROTTLE Price: $9.55 |
| 27 | 516843901 | SPRING RETURN Price: $4.99 |
| 28 | 574793401 | Price: Call Us |
| 29 | 514242601 | BALL Price: $5.99 |
| 30 | 521645101 | SHAFT, CHOKE Price: $24.33 |
| 31 | 521624701 | Price: Call Us |
| 32 | 514243601 | SPRING Price: $2.99 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 521645001 | NEEDLE Price: $15.40 |
| 35 | 505057901 | SPRING Price: $2.99 |
| 36 | 516935901 | PISTON Price: $5.99 |
| 37 | 516936001 | BALL Price: $2.99 |
| 38 | 521625101 | Price: Call Us |
| 39 | 522649401 | Price: Call Us |
| 40 | 578943601 | Price: Call Us |
| 41 | 525555001 | Price: Call Us |
