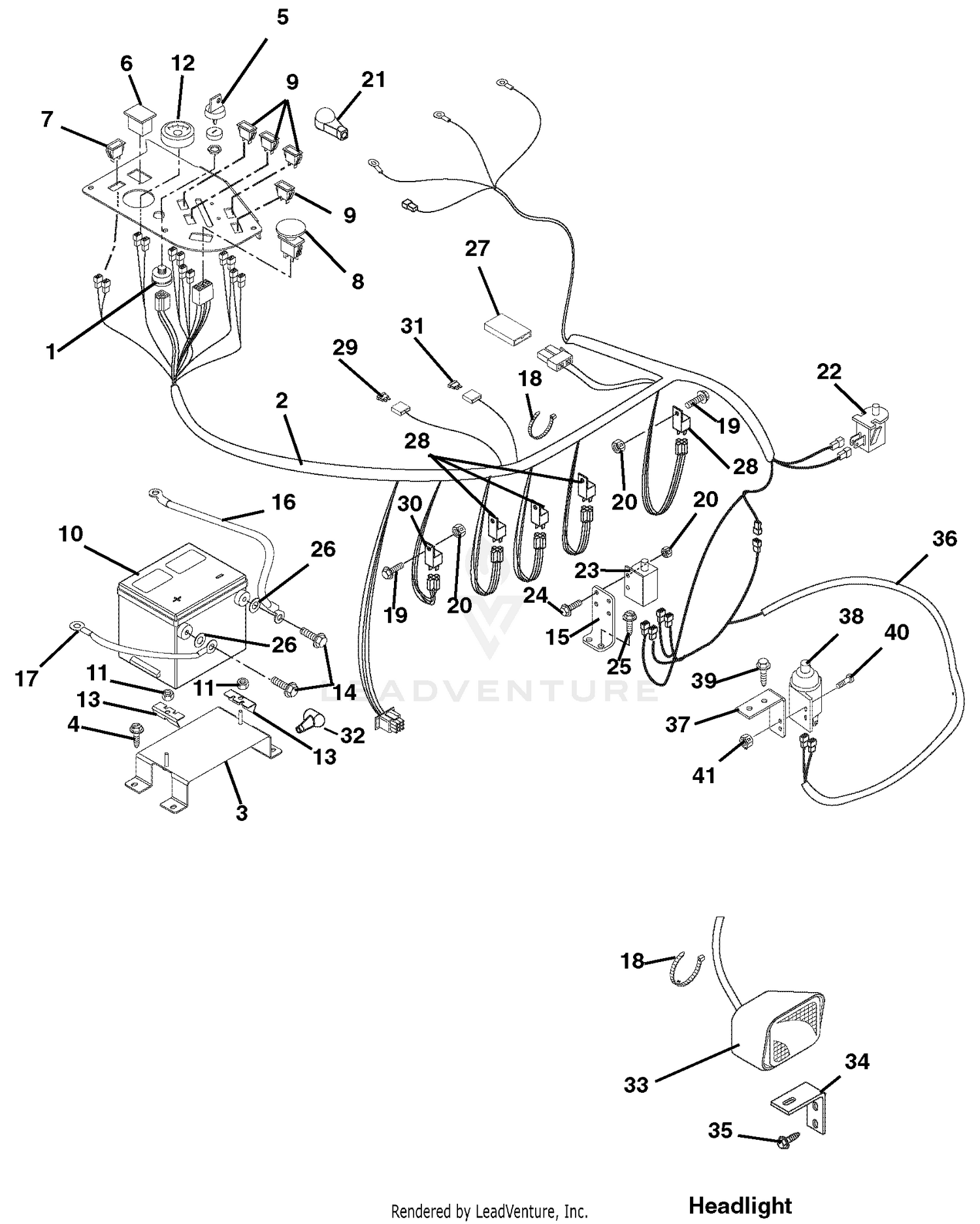

| Ref | Part Number | Description |
|---|
| 1 |
04331600 |
SWITCH, IGNITION This part replaces 00464000. Price: $41.95 |
| 2 |
03286500 |
HARNESS-MZ HORIZ L/C DIESEL Price: $274.95 |
| 3 |
09266551 |
WMT, BATTERY SUPPORT Price: $79.95 |
| 4 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 5 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 6 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 7 |
08973300 |
SWITCH, 2 POLE/ROCKER Price: $6.45 |
| 8 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 9 |
05128700 |
LIGHT, INDICATOR (RED) This part replaces 08841200. Price: $6.95 |
| 10 |
00525500 |
BATTERY, GROUP 70 450 CCA 35 A Price: Call Us |
| 11 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 12 |
09080200 |
GAUGE, TEMPERATURE Price: $89.95 |
| 13 |
09266600 |
BRKT, BATTERY HOLD-DOWN Price: $16.45 |
| 14 |
00526400 |
BATT TERMINAL SCREW Price: Call Us |
| 15 |
09275851 |
MOUNT, SAFETY SWITCH Price: $17.45 |
| 16 |
03287000 |
CABLE - POS BATT W/BOOTS 4X48 Price: $25.45 |
| 17 |
09278100 |
CABLE, NEGATIVE BATTERY 49.00 Price: $29.95 |
| 18 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 19 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 20 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 21 |
00678000 |
BOOT, TERMINAL, RED Price: $2.95 |
| 23 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 24 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 25 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 26 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 27 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 32 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 33 |
02463600 |
HEADLIGHT Price: $66.45 |
| 34 |
09287551 |
BRACKET, HEADLIGHT MTG Price: $16.45 |
| 35 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 36 |
09281000 |
HARNESS, WIRE ADAPTER CE Price: $41.95 |
| 37 |
09251253 |
MOUNT - SWITCH Price: $30.95 |
| 39 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
| 40 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 21510400 |
IGNITION |
KEY SET Price: $9.45 21510400 |
