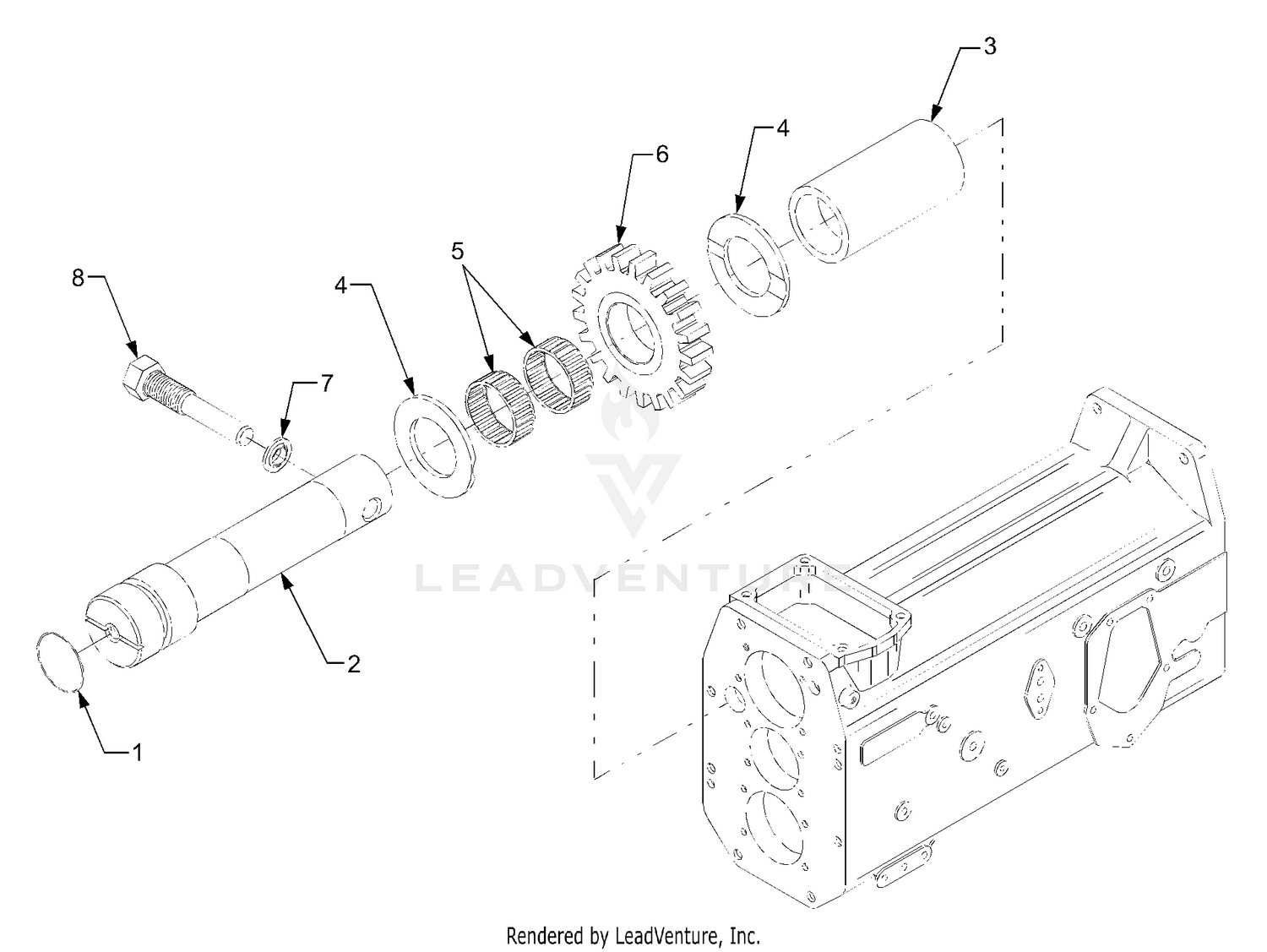

Reverse Shaft Group
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 539105060 | CLEVIS PIN Price: $4.99 |
| 1 | 76-5070 | OIL PUMP ASM Price: $729.22 |
| 1 | DD-04811-50350 | O-RING Not Available Price: |
| 2 | 596933401 | Washers This part replaces 539991043. Price: $2.99 |
| 2 | 94-3176 | VALVE-RELIEF Price: $5.60 |
| 2 | DD-T4682-22711 | SHAFT-REVERSE IDLE Not Available Price: |
| 3 | 539105069 | E-RING 5/8 Price: $2.99 |
| 3 | 76-5090 | SPRING-PISTON Price: $4.54 |
| 3 | DD-T4682-22771 | SPACER-IDLE SHAFT Not Available Price: |
| 4 | 595305901 | Nuts This part replaces 539990546. Price: $2.99 |
| 4 | 94-3179 | WASHER-SPRING Price: $1.50 |
| 4 | DD-T4682-22731 | THRUST WASHER Not Available Price: |
| 5 | 596917701 | Pins This part replaces 539102526. Price: $4.99 |
| 5 | 76-5100 | BOLT-SHOULDER Price: $5.63 |
| 5 | DD-08822-83217 | NEEDLE BEARING Not Available Price: |
| 6 | 539105059 | LANYARD Price: $4.99 |
| 6 | DD-T4682-22721 | GEAR-REVERSE IDLE Not Available Price: |
| 7 | 594722002 | LIFT This part replaces 539102641. Price: $4.99 |
| 7 | 76-5010 | WASHER-SPRING Price: $0.33 |
| 7 | DD-04717-01000 | SEAL WASHER Not Available Price: |
| 8 | 539104321 | ADJ. PLATE WLDMNT Price: $63.99 |
| 8 | 94-3124 | SCREW-HH Price: $1.30 |
| 9 | 539104530 | DECK LIFT SPACER Price: $5.99 |
| 9 | 94-3178 | STRAINER Price: $99.33 |
| 10 | 539104323 | ADJ. PLATE PAINTED Price: $23.99 |
| 10 | 77-3470 | SCREW Price: $3.37 |
| 11 | 596434201 | Bolts This part replaces 539990637. Price: $3.99 |
| 11 | 77-3490 | SCREW Price: $4.42 |
| 12 | 596273101 | Pins This part replaces 539976989. Price: $2.99 |
| 12 | 94-3177 | PLUG Price: $7.38 |
| 13 | 596564404 | Bolts This part replaces 539990629. Price: $2.99 |
| 14 | 539102515 | GRIP Price: $3.99 |
| 15 | 539108322 | LIFT LEVER WELDMENT Price: $84.99 |
| 16 | 539105050 | LIFT LINKAGE,PAINTED Price: $23.99 |
| 17 | 539101232 | BUSHING, FLANGED Price: $11.99 |
| 18 | 539104761 | GREASE ZERK LONG Price: $2.99 |
| 19 | 539108354 | SHAFT LIFT REAR Price: $108.99 |
| 20 | 539976982 | WASHER 5/8 FLAT Price: $3.99 |
| 21 | 539990654 | COTTER PIN Price: $2.99 |
| 22 | 539104808 | PILLOW BLOCK Price: $7.99 |
| 23 | 584392702 | REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99 |
| 24 | 539991046 | BOLT 5/16C X 2 1/2 Price: $3.99 |
| 25 | 539108355 | LIFT SHAFT Price: $108.99 |
| 26 | 596580701 | Nuts This part replaces 539990184. Price: $2.99 |
| 27 | 539101982 | EYEBOLT, RH Price: $37.99 |
| 28 | 596039201 | GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 29 | 539104760 | DECK LIFT SPRING Price: $5.99 |
| 30 | 539101050 | GRIP Price: $2.99 |
| 31 | 539104523 | PIN Price: $7.99 |
| 32 | 539103534 | PIN MT, UPPER Price: $22.99 |
| 33 | 539101058 | SPRING Price: $3.99 |
| 34 | 539923787 | BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 35 | 539990761 | NUT 1/4C CENTER LOCK Price: $2.99 |
| 36 | 539101082 | ROLL PIN 3/16 X 1-1/4 ZD Price: $2.99 |
| 37 | 596230901 | Screws This part replaces 539990580. Price: $2.99 |
| 38 | 539101802 | E-RING 7/8 Price: $2.99 |
| 39 | 539104310 | CONNECTING LINK Price: $22.99 |
| 40 | 539990655 | HCS 3/8C X 1 1/2 Price: $3.99 |
| 41 | 539105181 | LIFT PEDAL BLK Price: $84.99 |
| 42 | 539105187 | ANTI-SKID PAD Price: $2.99 |
| 43 | 539105184 | TIGHTENING PLATE BLK Price: $37.99 |
