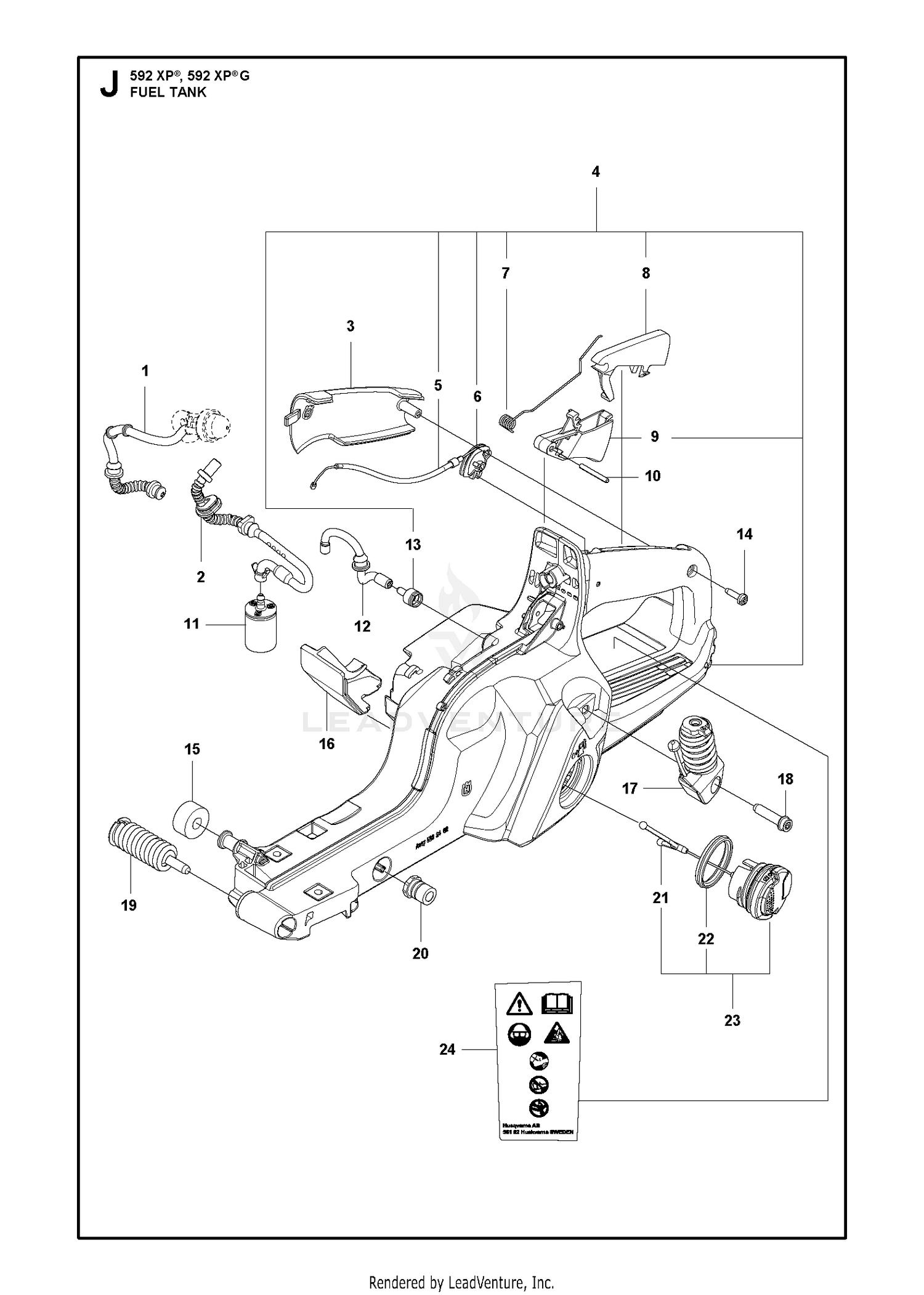

FUEL TANK
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 593976401 | FUEL HOSE PURGE OUT Price: $6.99 |
| 3 | 537205501 | COVER Price: $5.99 |
| 4 | 597960301 | FUEL TANK ASSY 90 CC SPARE PAR Price: $69.99 |
| 5 | 593246301 | THROTTLE CABLE ASSY Price: $14.99 |
| 6 | 537208501 | LEVER Price: $5.99 |
| 7 | 537209801 | SPRING Price: $4.99 |
| 8 | 537208401 | THROTTLE LOCK Price: $5.99 |
| 9 | 537208301 | THROTTLE TRIGGER Price: $6.99 |
| 10 | 720182520 | PIN This part replaces 720124020. Price: $1.99 |
| 13 | 501152903 | TANK VENT Price: $11.99 |
| 14 | 525887402 | SCREW CITXPANT Price: $2.99 |
| 15 | 523085501 | DEFLECTION LIMITER Price: $7.99 |
| 16 | 593257001 | WEAR PROTECTION Price: $4.99 |
| 17 | 593255603 | ANTIVIBRATION ELEMENT REAR This part replaces 593255601. Price: $22.99 |
| 18 | 525798103 | SCREW Price: $2.99 |
| 19 | 593255501 | ANTIVIBRATION ELEMENT FRONT Price: $17.99 |
| 20 | 501007601 | LATERAL SUPPORT Price: $3.99 |
| 21 | 503578901 | TANK LOCK Price: $4.99 |
| 22 | 589241101 | SEALING Price: $4.99 |
| 23 | 522620003 | TANK CAP ASSY Price: $8.99 |
| 24 | 582794105 | LABEL Price: $3.99 |
