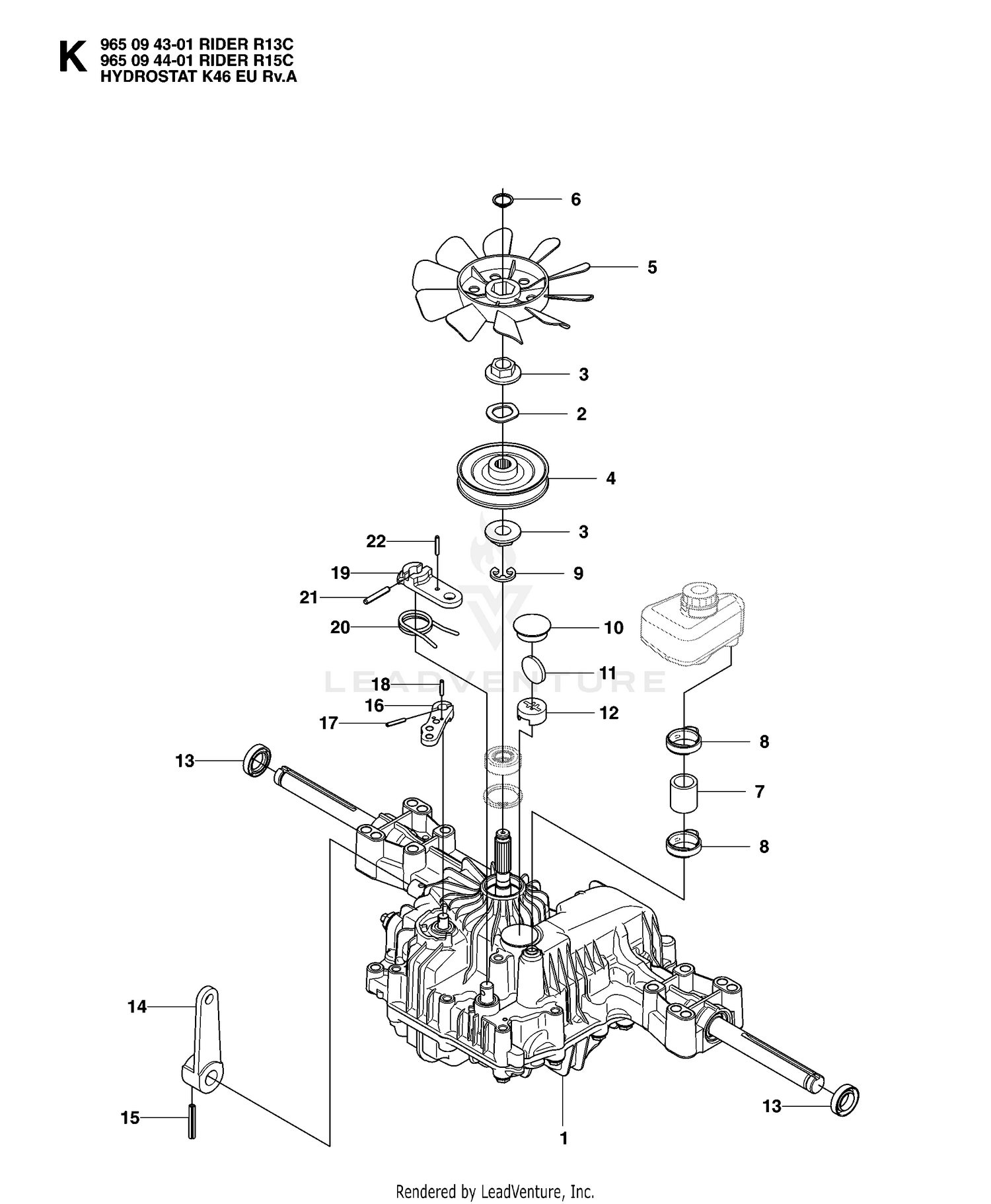

| Ref | Part Number | Description |
|---|
| 1 |
506986301 |
HYDROSTAT 7A646024070 This part replaces 506986401. Price: $1,099.99 |
| 2 |
506986501 |
WASHER ** Price: $3.99 |
| 3 |
506986601 |
SLEEVE Price: $7.99 |
| 5 |
583350101 |
FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 5 |
95-8960-0P |
BRACKET-NEUTRAL This part replaces 95-8960-03. Price: $47.94 |
| 6 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 6 |
735311500 |
RETAINING RING ** Price: $2.99 |
| 7 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 7 |
502451601 |
TUBE This part replaces 506986901. Price: $17.99 |
| 8 |
140-6168 |
NEUTRAL ARM ASM This part replaces 104-0422. Price: $115.71 |
| 8 |
505131102 |
HOSE CLAMP 20-32 This part replaces 506987001. Price: $4.99 |
| 9 |
735312800 |
Retaining Ring Price: $3.94 |
| 10 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 10 |
535402832 |
PLUG Price: $14.99 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 11 |
535402829 |
MAGNET Price: $5.17 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
535402830 |
HOLDER Price: $4.55 |
| 13 |
100-4817 |
SPACER-BEARING Price: $4.03 |
| 13 |
583349301 |
SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 |
535402835 |
LEVER Price: $7.99 |
| 14 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 15 |
535402809 |
PIN Price: $2.99 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 16 |
535402817 |
ARM Price: $19.99 |
| 17 |
535402816 |
PIN Price: $2.99 |
| 18 |
535402833 |
PIN Price: $2.99 |
| 18 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 19 |
3210-6 |
SCREW-HH Price: $1.76 |
| 19 |
535402841 |
PIN Price: $2.99 |
| 20 |
535402839 |
RETURN SPRING Price: $11.99 |
| 20 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 21 |
120-5566 |
HUB Price: $49.38 |
| 21 |
535402840 |
PIN Price: $3.99 |
| 22 |
32128-44 |
NUT Price: $2.69 |
| 22 |
535402841 |
PIN Price: $2.99 |
| 23 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 24 |
104-0464-03 |
BRACKET-SUPPORT, CABLE Price: $35.63 |
| 25 |
251-259 |
BEARING-BALL Price: $13.67 |
| 26 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 28 |
3274-104 |
SCREW-HSBH Price: $0.54 |
| 30 |
99-3556 |
HOSE Price: $12.50 |
| 31 |
99-3594-0P |
LEVER-PUMP This part replaces 99-3594-03. Price: $53.70 |
| 32 |
321-8 |
SCREW-HH Price: $0.34 |
| 33 |
2844 |
WASHER Price: $2.69 |
| 34 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 35 |
63-9750 |
MOUNT Price: $18.92 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
