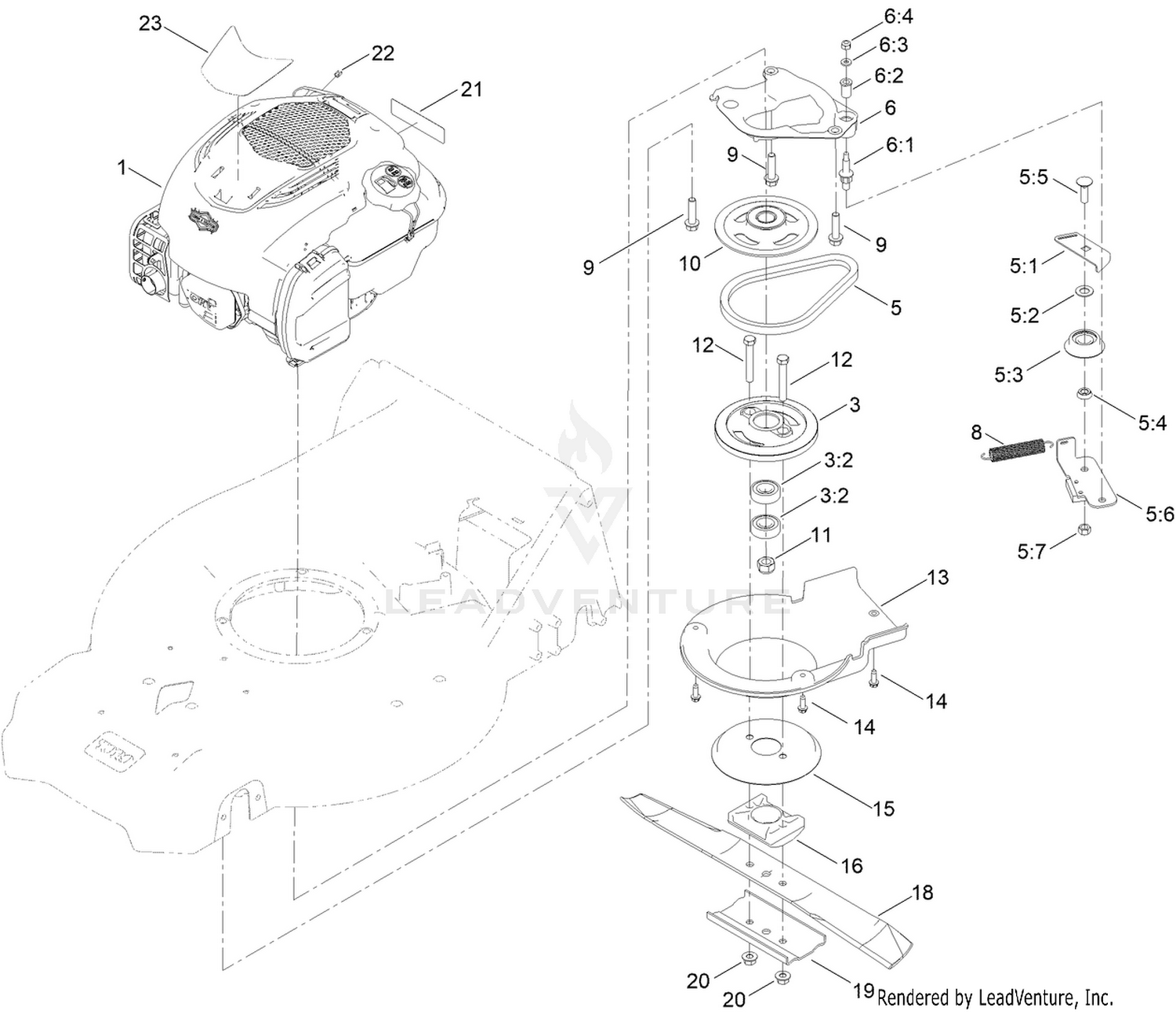

Engine and Blade Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 145-4043 | DRUM-BBC Price: $40.99 |
| 5 | 145-4045 | BRAKE-BBC Price: $60.99 |
| 6 | 145-4046 | PLATE-ANCHOR,BBC Price: $37.99 |
| 8 | 108-3792 | SPRING-TENSION, BRAKE Price: $10.99 |
| 9 | 32144-102 | SCREW-HWH Price: $3.19 |
| 10 | 117-5970 | PULLEY Price: $34.99 |
| 11 | 108-9342 | NUT-HEX Price: $3.49 |
| 12 | 3211-42 | SCREW-HH Price: $4.87 |
| 13 | 125-1006 | COVER Price: $16.99 |
| 14 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 15 | 138-3225 | DISK Price: $11.99 |
| 16 | 107-7487 | SUPPORT-BLADE Price: $21.99 |
| 18 | 133-8183-03 | BLADE-21IN, RECYCLING Price: $20.99 |
| 19 | 108-3766-03 | SUPPORT-BLADE Price: $9.99 |
| 20 | 127-6852 | NUT-FLANGE, LOCK Price: $1.79 |
| 21 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 22 | 2210-316 | STOP-ROPE Price: $6.49 |
