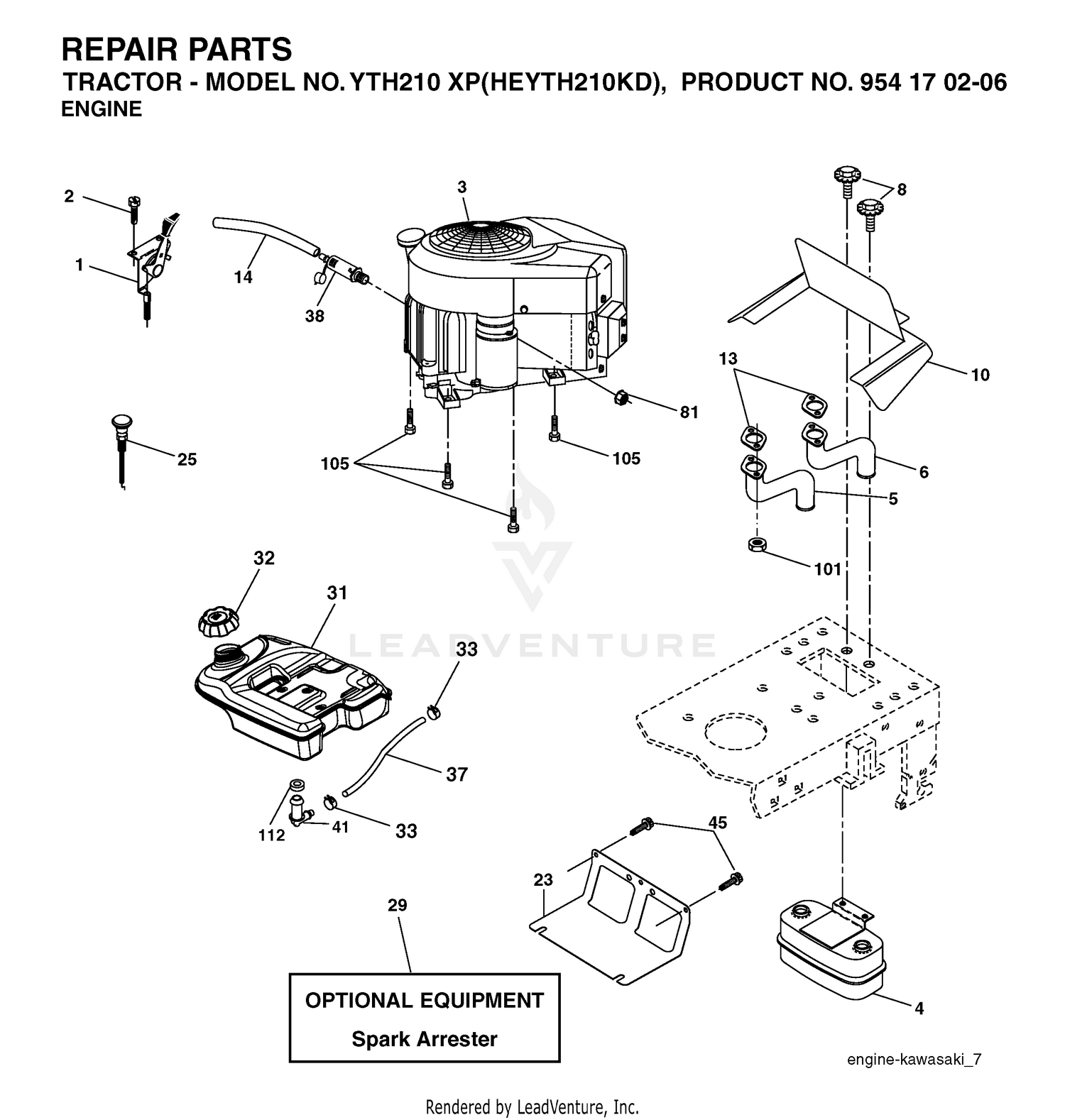

| Ref | Part Number | Description |
|---|
| 1 |
322-33 |
SCREW-HH Price: $3.19 |
| 1 |
532186968 |
NEEDS DESCRIPTION Price: Call Us |
| 2 |
106-1981 |
COVER-END Price: $115.97 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
106-1989 |
SEAL KIT Price: $165.87 |
| 4 |
106-1982 |
COMMUTATOR ASM Price: $156.56 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
106-1983 |
MANIFOLD Price: $290.05 |
| 5 |
532184579 |
TUBE EXHAUST LH Price: $49.99 |
| 6 |
106-1984 |
ROTOR SET Price: $412.97 |
| 6 |
532184580 |
EXHAUST.TUBE.RH.KAWA Price: $49.99 |
| 7 |
106-1985 |
PLATE-WEAR Price: $104.19 |
| 8 |
106-1986 |
LINK-DRIVE Price: $87.16 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
106-1987 |
SHAFT-COUPLING Price: $351.48 |
| 10 |
106-1988 |
HOUSING ASM Price: $457.42 |
| 13 |
532178151 |
GASKET Price: $4.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532187766 |
CONTROL, CHOKE, 37", PUSH This part replaces 532191717. Price: $17.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
