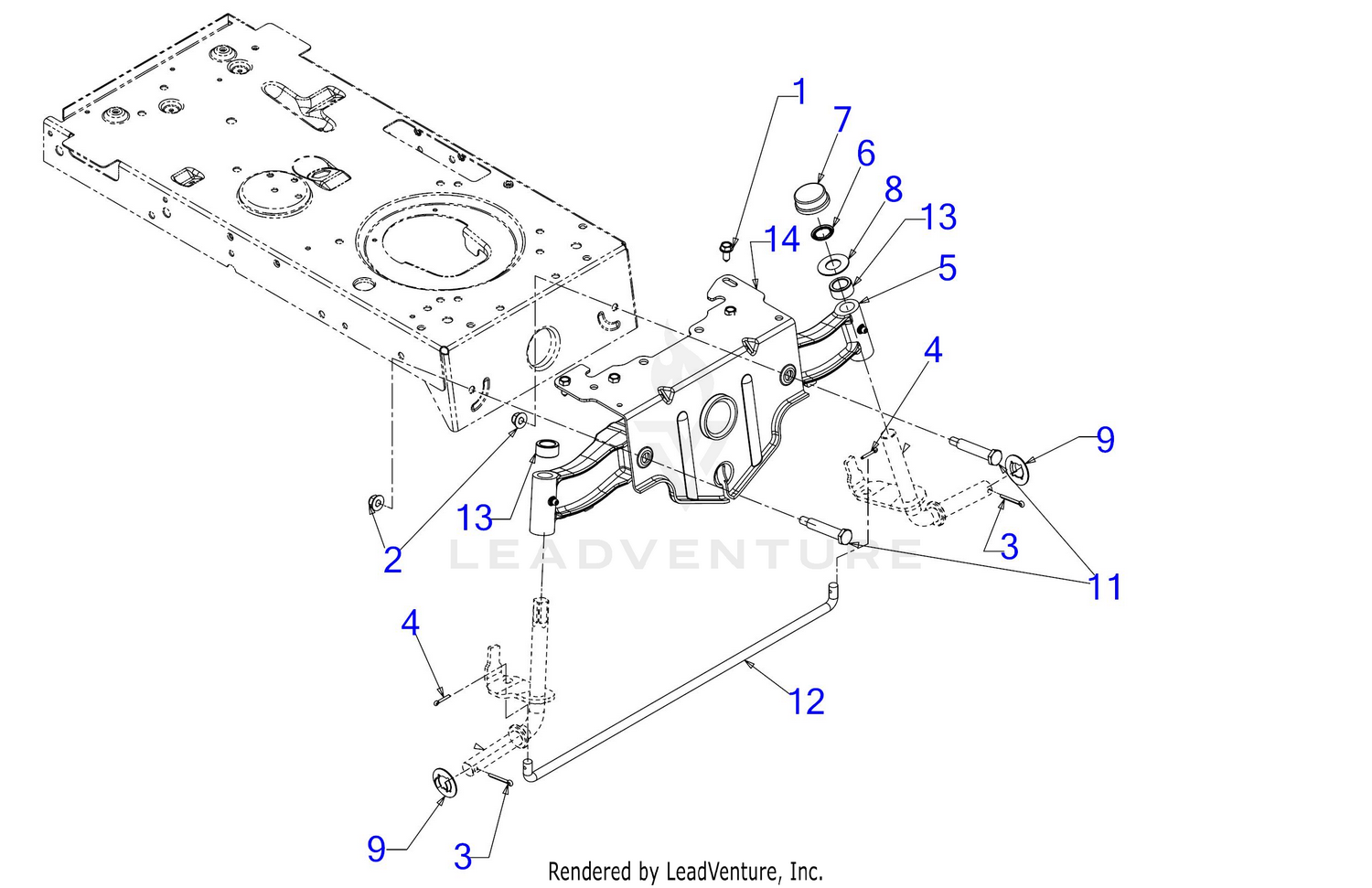

| Ref | Part Number | Description |
|---|
| 1 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 2 |
712-04065 |
NUT Price: $3.68 |
| 3 |
714-0162 |
COTTER PIN-5/32 DIA Price: $4.29 |
| 4 |
914-0474 |
COTTER PIN Price: $4.08 |
| 5 |
919-04177E |
CAST PIVOT BAR AXLE This part replaces 919-04177C. Price: $218.49 |
| 6 |
726-04035 |
PUSH NUT, 3/4" ID Price: $5.99 |
| 7 |
731-04693 |
HUB CAP Price: $4.08 |
| 8 |
736-0316 |
Flat Washer, .78 x 1.59 x .06 This part replaces 936-0316. Price: $4.02 |
| 9 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 11 |
738-04128 |
SHOULDER SCREW .500X2.38X3/8-16 Price: $6.67 |
| 12 |
747-04299A |
FIXED TIE ROD Price: $26.83 |
| 13 |
748-04068 |
SPACER .77IDX1.130ODX.56 Price: $3.56 |
