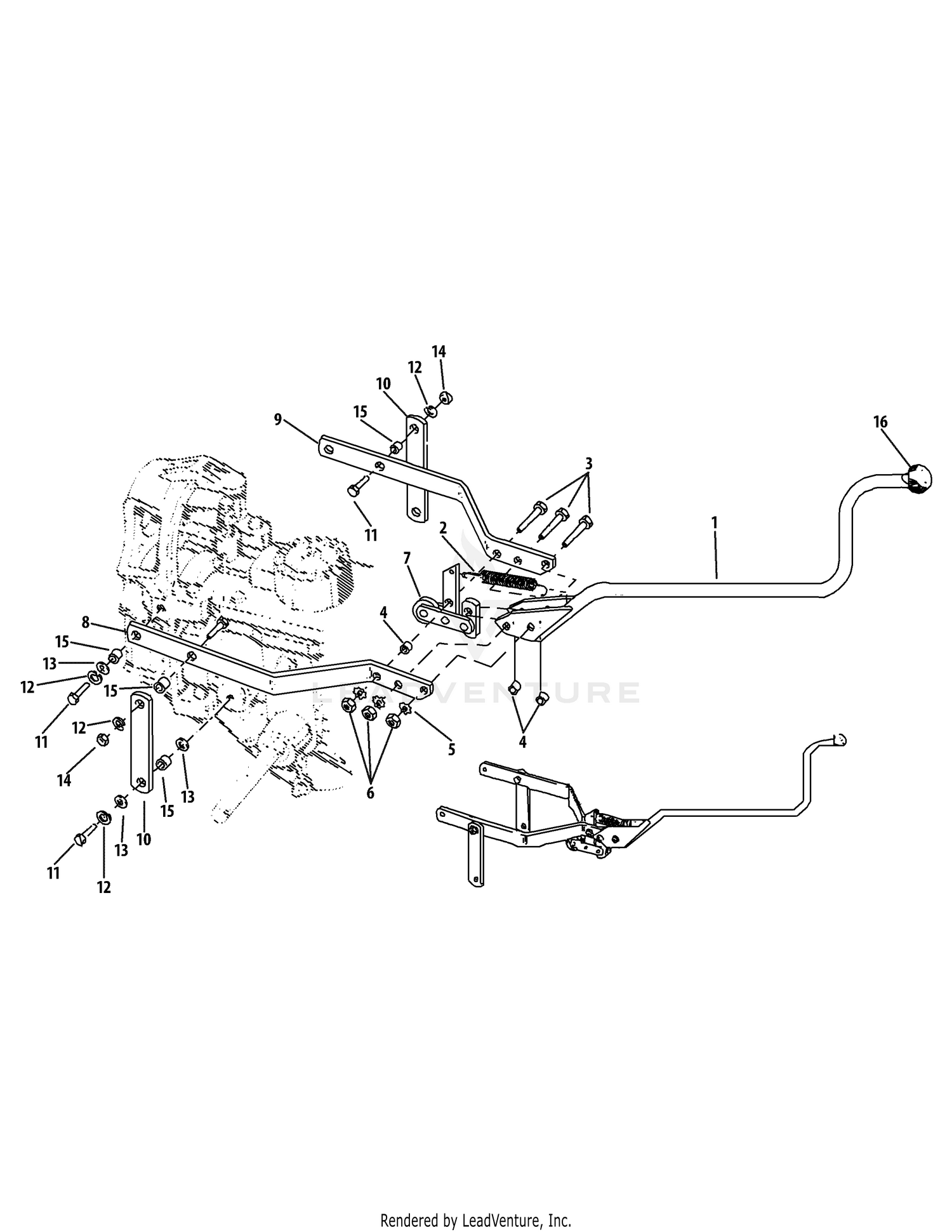

Drive Lever & Yoke Assembly

Drive Lever & Yoke Assembly

Parts (15)

RefPart NumberDescription
1 GW-2595099 Shift Control Knob This part replaces GW-2595. Price: $15.09
2 1908156 Clutch Pawl Spring Price: $14.44
3 710-0805A SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75
4 GW-2447 Bushing, 3/8 " Price: $5.77
5 736-0607 External L-Washer 5/16 This part replaces 1177548. Price: $3.66
6 712-3010 HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89
7 686-04006 Roller Assembly Price: $81.86
8 1900468010 YOKE-LH RED This part replaces GW-2165-1. Price: $41.83
9 1900469010 YOKE-RH RED This part replaces GW-2165-2. Price: $37.03
10 1900860001 Yoke Pivot Link This part replaces GW-2164. Price: $14.83
11 710-0514 Hex Bolt, 3/8 -16 x 1" Price: $3.78
12 736-0169 Spring Lockwasher, 3/8 " Price: $3.33
13 736-3050 Flat Washer, 3/8 " Price: $3.90
14 712-3017 HEX NUT 3/8-16 GR5 Price: $3.90
15 GW-1113-1099 BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53
