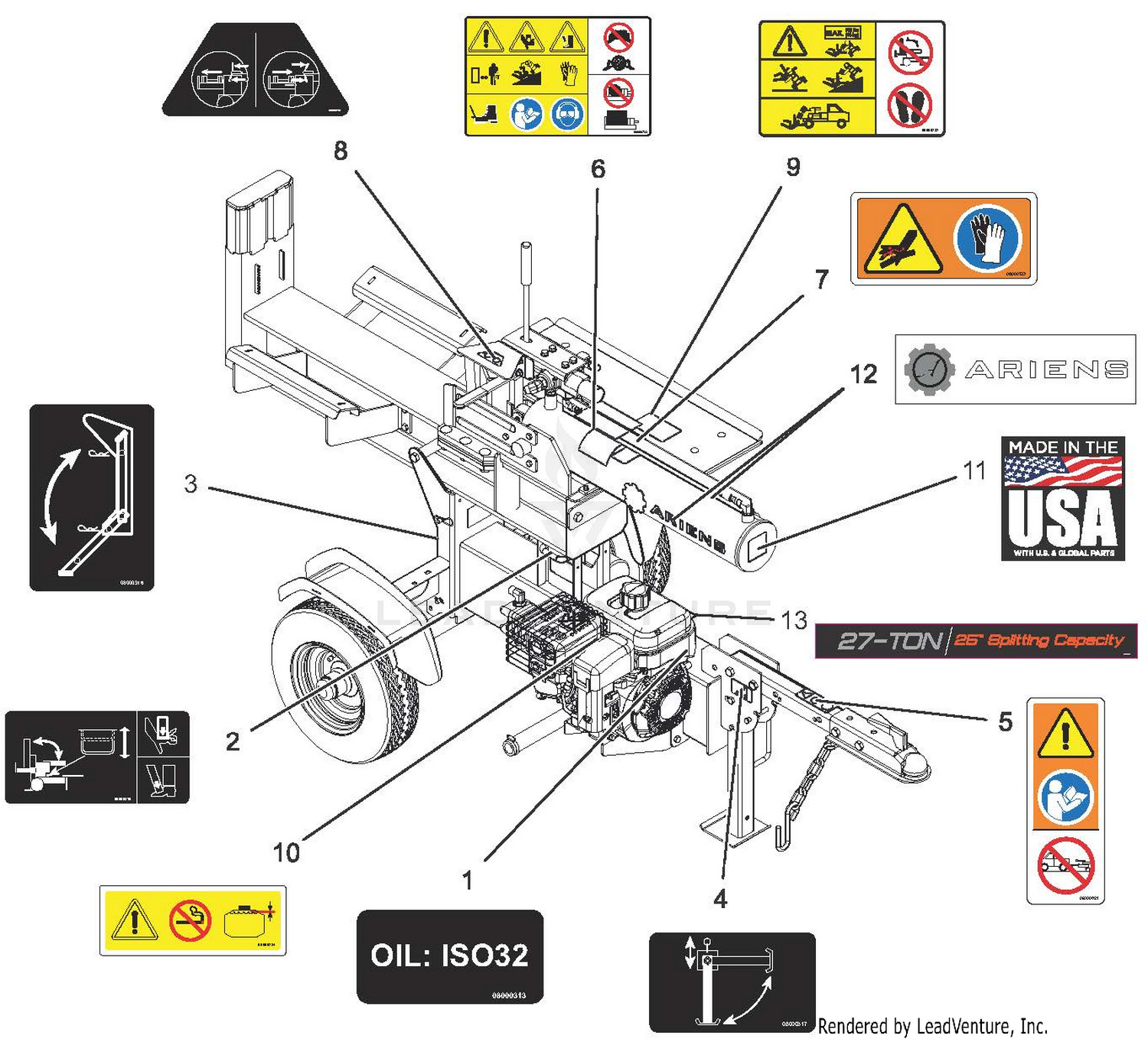

| Ref | Part Number | Description |
|---|
| 1 |
231-95 |
TIRE(23X10.5X12) 4-PLY WIDE WHEEL OPT. Price: $142.43 |
| 1 |
487353 |
Instrument Panel Assy Price: Call Us |
| 1 |
61700500 |
DECAL SHEET,LOG SPLITTER This part replaces 08000313. Price: Call Us |
| 2 |
217-116 |
WHEEL This part replaces 242-62. Price: $258.19 |
| 2 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 2 |
61700500 |
DECAL SHEET,LOG SPLITTER This part replaces 08000315. Price: Call Us |
| 3 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 3 |
61700500 |
DECAL SHEET,LOG SPLITTER This part replaces 08000316. Price: Call Us |
| 4 |
483976 |
Choke Control (excludes EFI models) Price: Call Us |
| 4 |
61700500 |
DECAL SHEET,LOG SPLITTER This part replaces 08000317. Price: Call Us |
| 5 |
08000621 |
DECAL, NO TOWING Price: $10.95 |
| 5 |
481182 |
Indicator Light, Glow Plugs (Includes Mounting Hardware) Price: Call Us |
| 6 |
08000722 |
DECAL,DANGER LOG SPLITTER Price: $25.45 |
| 6 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 7 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 Price: Call Us |
| 7 |
08000723 |
DECAL,HYD WARNING Price: $19.95 |
| 8 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 8 |
08000726 |
DECAL,RAM OPERATION Price: $17.45 |
| 9 |
08000727 |
DECAL,SPLITTER TABLE Price: $20.45 |
| 9 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 10 |
08000724 |
DECAL,FUEL WARNING Price: $10.10 |
| 10 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 11 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 11 |
08001038 |
DECAL, MADE IN USA Price: $2.95 |
| 12 |
07800728 |
DECAL-ARIENS-CYLINDER Price: $11.95 |
| 12 |
483975 |
Throttle Control, SVR Price: Call Us |
| 14 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 15 |
481637 |
Switch, Interlock, Park Brake Normally Open Price: Call Us |
| 16 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 17 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 18 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 19 |
427249 |
Switch Bracket, Operator Presence Price: Call Us |
| 20 |
48717 |
SWITCH, NEUTRAL INTERLOCK Price: Call Us |
| 22 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 23 |
48029-24 |
Battery Cable, 39" Black (26EFI) - Kohler Price: Call Us |
| 24 |
48029-30 |
Battery Cable, 44" Red w/Braid (26EFI) - Kohler Price: Call Us |
| 26 |
48126 |
RUBBER BOOT Price: Call Us |
| 27 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 28 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 30 |
483571 |
Cover, Sealed Double Price: Call Us |
| 31 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 32 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 33 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 35 |
483643 |
Cover, Sealed Single Price: Call Us |
| 36 |
463352 |
Control Panel with Decal Price: Call Us |
| 37 |
422373 |
Plate, Threaded Price: Call Us |
