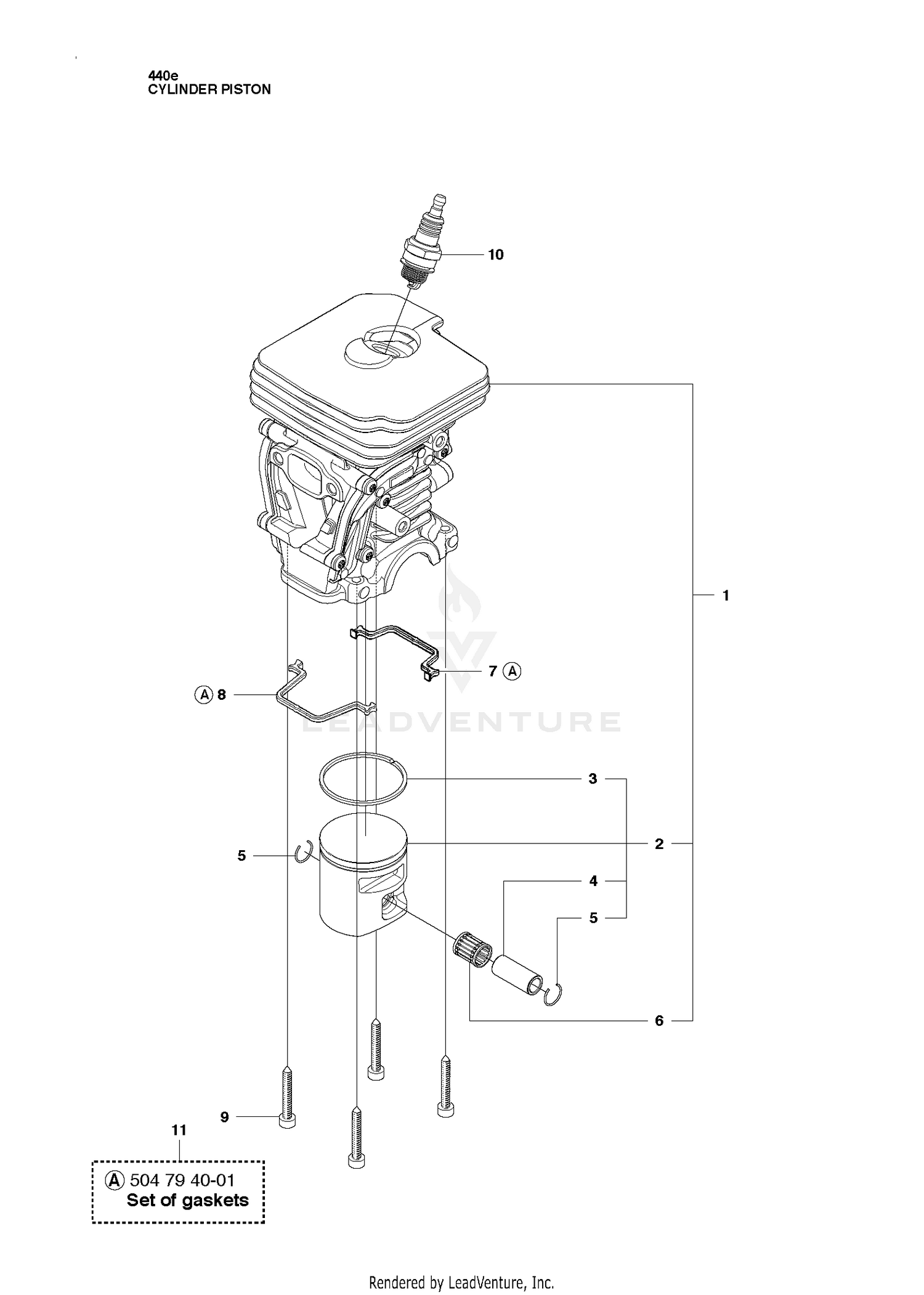

CYLINDER PISTON
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504735105 | Cylinder This part replaces 504735101. Price: $99.99 |
| 2 | 502625007 | PISTON ASSY This part replaces 502625002. Price: $54.99 |
| 3 | 544405901 | PISTON RING Price: $8.99 |
| 4 | 544406001 | PISTON PIN Price: $3.99 |
| 5 | 737441000 | LOCKING RING Price: $2.99 |
| 6 | 503414101 | SUPPORT BUSHING Price: $11.99 |
| 7 | 544396001 | GASKET Price: $3.99 |
| 9 | 725533355 | SCREW MC6S 5X25 Price: $3.99 |
| 10 | 503235111 | SPARK PLUG M14X1.25 NGK BPMR7A Price: $4.99 |
| 11 | 504794001 | GASKET SET Price: $6.99 |
