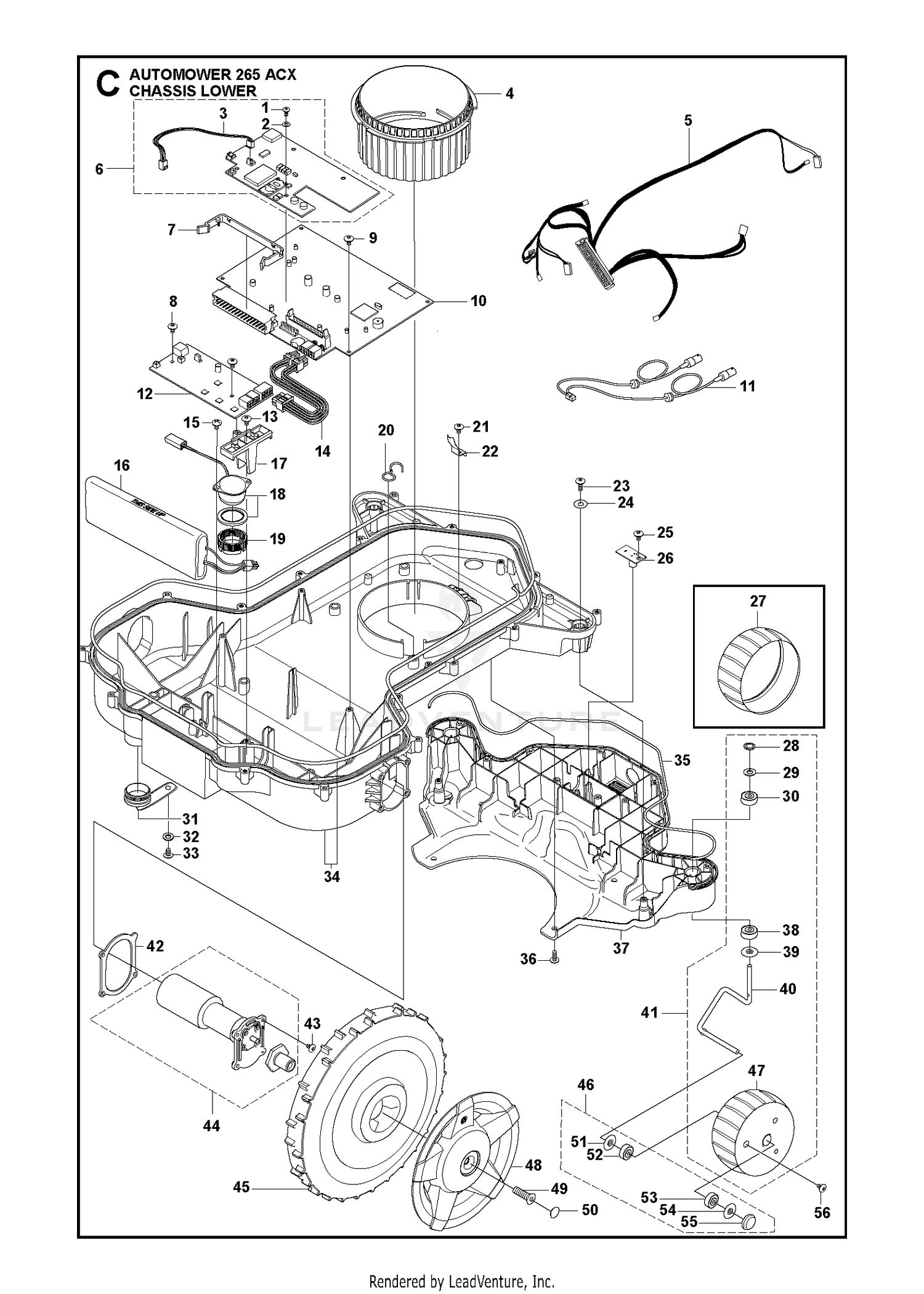

CHASSIS LOWER
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 522597101 | SCREW GSM- MODULE Price: $3.99 |
| 2 | 522597201 | WASHER GSM- MODULE Price: $3.99 |
| 3 | 576219401 | LOOM LOOM GPS TRACKING MODULE Price: $37.99 |
| 4 | 535122102 | CUTTING HEIGHT NUT Price: $22.99 |
| 5 | 501003704 | Price: Call Us |
| 6 | 575242403 | Price: Call Us |
| 7 | 578056101 | CLIP MAIN CONNECTOR Price: $4.99 |
| 11 | 523056002 | Price: Call Us |
| 14 | 578898401 | Price: Call Us |
| 17 | 579734201 | Price: Call Us |
| 18 | 501004201 | HORN Price: $49.99 |
| 19 | 579521201 | NUT BUZZER Price: $4.99 |
| 20 | 535139601 | HOLDER Price: $4.99 |
| 21 | 535130314 | SCREW Price: $2.99 |
| 22 | 535122401 | SPRING Price: $3.99 |
| 24 | 734113741 | WASHER Price: $3.99 |
| 25 | 575543310 | SCREW SILVER 10MM Price: $2.99 |
| 27 | 574449801 | WHEEL RUBBER TYRE Price: $7.99 |
| 28 | 576019301 | LOCK WASHER PUSH-ON TYPE P 8 S Price: $2.99 |
| 29 | 576214301 | WASHER 16 OD X 6.5 ID X 1MM Price: $1.99 |
| 30 | 510144601 | BALL BEARING FRONT WHEEL AM 26 Price: $3.99 |
| 31 | 574427402 | PLUG SERVICE PLUG Price: $5.99 |
| 32 | 734113741 | WASHER Price: $3.99 |
| 34 | 575943902 | Price: Call Us |
| 35 | 522039301 | Price: Call Us |
| 37 | 510086702 | Price: Call Us |
| 38 | 510144601 | BALL BEARING FRONT WHEEL AM 26 Price: $3.99 |
| 39 | 535087803 | WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 40 | 505193501 | Price: Call Us |
| 42 | 535139203 | GASKET Price: $5.99 |
| 44 | 544907003 | DRIVE MOTOR Price: $379.99 |
| 45 | 544905804 | REAR WHEEL ASSY 230 Price: $27.99 |
| 47 | 575231701 | WHEEL, FRONT Price: $19.99 |
| 48 | 544905102 | HUB CAP Price: $12.99 |
| 51 | 535087803 | WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 52 | 510144601 | BALL BEARING FRONT WHEEL AM 26 Price: $3.99 |
| 53 | 510144601 | BALL BEARING FRONT WHEEL AM 26 Price: $3.99 |
| 54 | 535087803 | WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 55 | 521933102 | COVER WASHER FRONT WHEEL AXEL Price: $5.99 |
| 56 | 575507601 | SCREW ITXPANT PT 40 THREAD Price: $2.99 |
