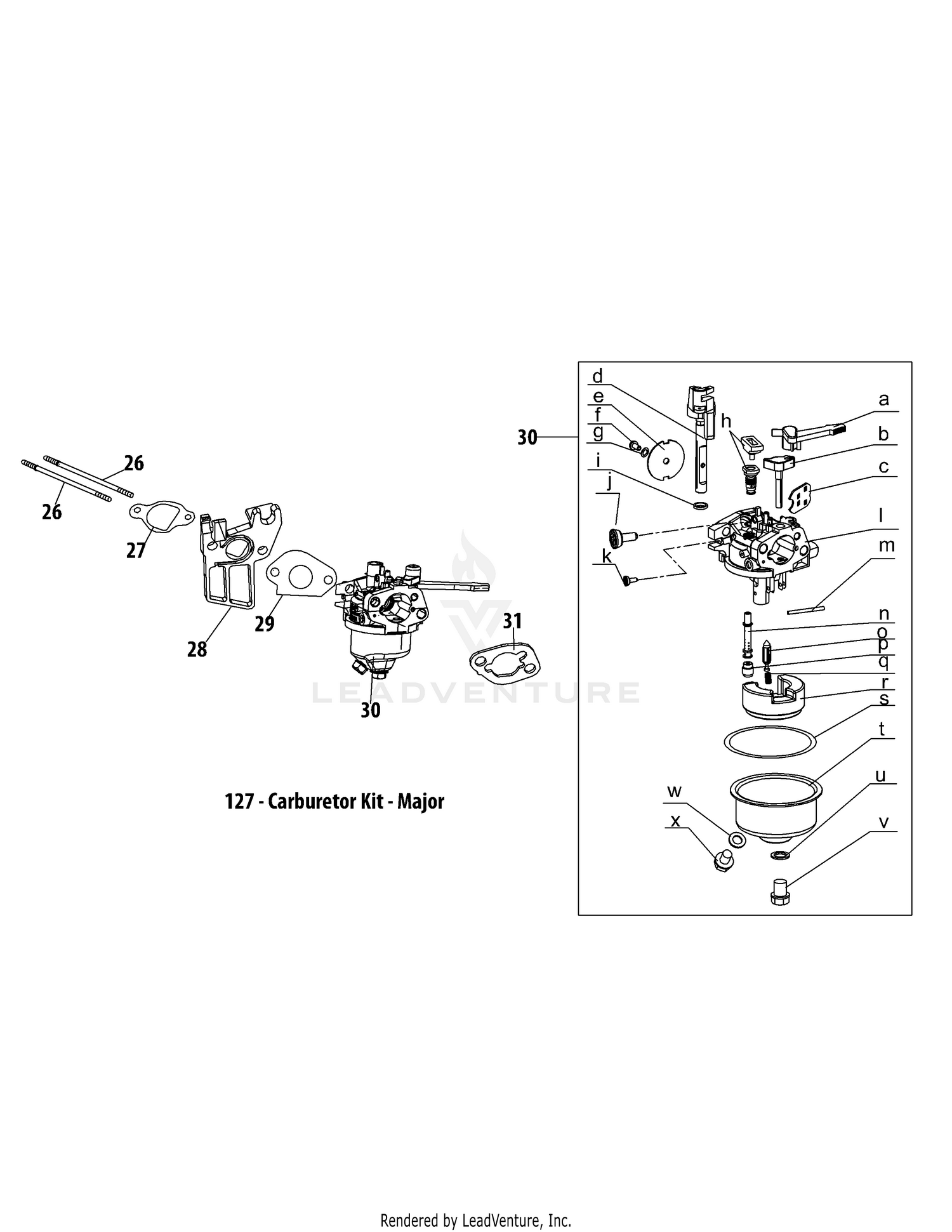

| Ref | Part Number | Description |
|---|
| a |
751P20448 |
CHOKE CONTROL LEVER This part replaces 951-11177. Price: $10.90 |
| b |
None |
Choke Shaft |
| c |
None |
Choke Plate |
| d |
None |
Throttle Shaft |
| e |
None |
Throttle Plate |
| f |
None |
Screw M3×5 |
| g |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| h |
None |
Idle Jet Assembly |
| i |
None |
Gasket, Throttle Plate |
| j |
None |
Idle Speed Adjusting Screw |
| k |
None |
Mixture Screw |
| l |
None |
Carburetor Body |
| m |
None |
Float Pin |
| n |
None |
Emulsion Tube |
| o |
None |
Needle Valve |
| p |
None |
Main Jet |
| q |
None |
Needle Valve Spring |
| r |
None |
Float |
| s |
951-11589 |
Fuel Bowl Gasket Price: $6.04 |
| t |
None |
Fuel Bowl |
| u |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| v |
710-04945 |
Fuel Bowl Mounting Bolt Price: $3.66 |
| w |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
19091016 |
WASHER Price: Call Us |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 20 |
73350400 |
NUT Price: Call Us |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
710-05101 |
Stud M6×110 Price: $3.71 |
| 27 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 28 |
751P11568A |
INSULATOR This part replaces 951-11568. Price: $3.05 |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
951-12785 |
Carburetor Assembly This part replaces 951-12124. Price: $109.53 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
951-11571 |
CARBURETOR GASKET PLATE Price: $4.83 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 127 |
951-12119A |
Carburetor Kit - Major Price: $54.20 |
