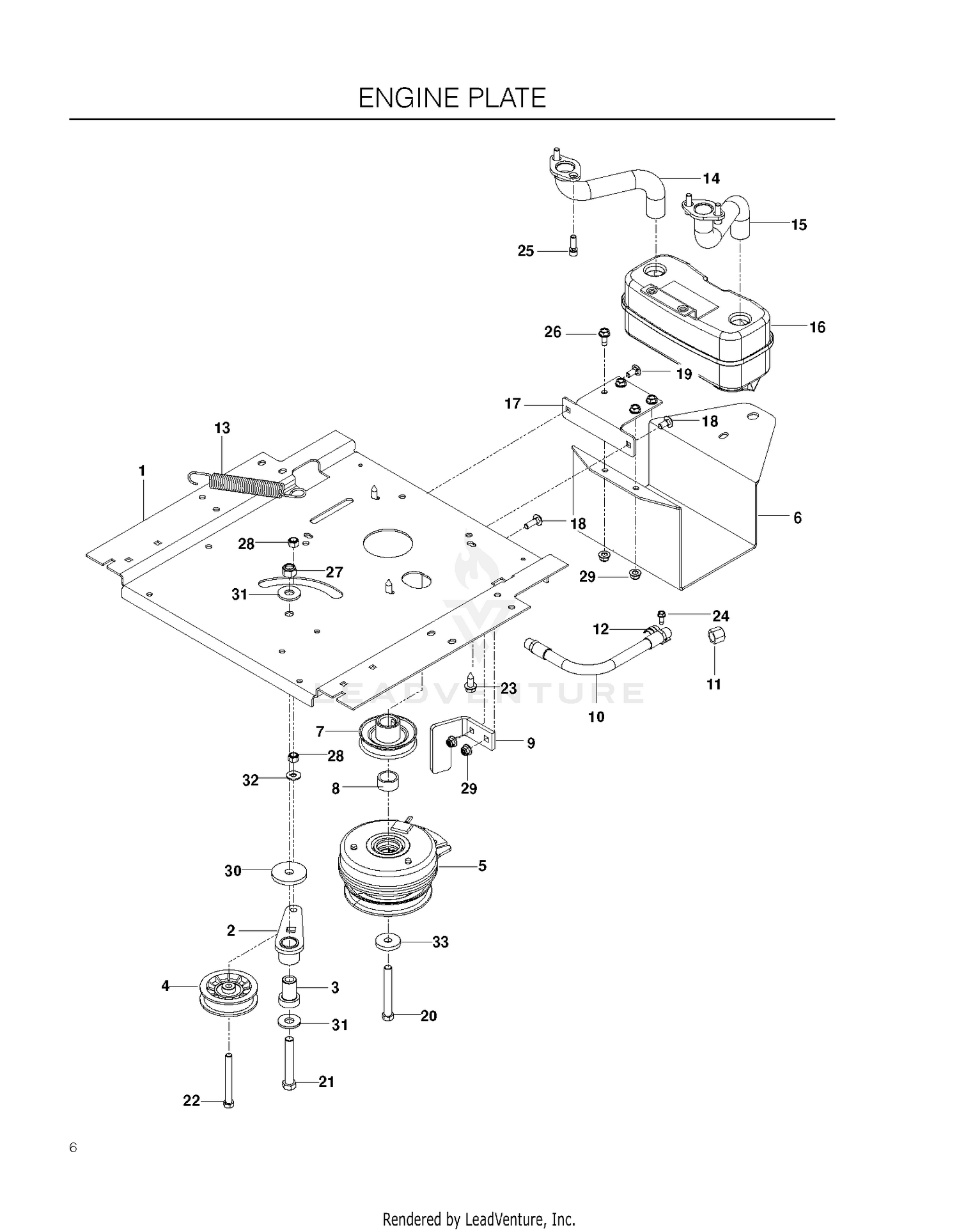

| Ref | Part Number | Description |
|---|
| 1 |
532448161 |
ENGINE PLATE RZ This part replaces 575327002. Price: $54.99 |
| 2 |
583593901 |
ARM.IDLER This part replaces 539112092. Price: $11.99 |
| 3 |
539101231 |
IDLER SPINDLE Price: $11.99 |
| 4 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 5 |
505287301 |
CLUTCH, 105 FT-LBS Price: $249.99 |
| 6 |
510260502 |
GUARD, MUFFLER, BLACK Price: $54.99 |
| 7 |
587537401 |
PULLEY.ENGINE This part replaces 539114530. Price: $22.99 |
| 8 |
596401101 |
Spacers This part replaces 539112252. Price: $3.99 |
| 9 |
510246002 |
STOP, CLUTCH, BLACK Price: $9.99 |
| 10 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 11 |
539101364 |
DRAIN CAP Price: $5.99 |
| 12 |
539101363 |
CLAMP Price: $2.99 |
| 13 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 14 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 15 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 16 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 17 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 18 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 19 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 20 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR This part replaces 539976944. Price: $6.99 |
| 21 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 22 |
539109389 |
HCS 3/8-16X3 1/2 GR5 Price: $4.99 |
| 23 |
817120616 |
SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99 |
| 24 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 25 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 26 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 27 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 28 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 29 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 30 |
539112670 |
HEAVY WASHER Price: $3.99 |
| 31 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 32 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
