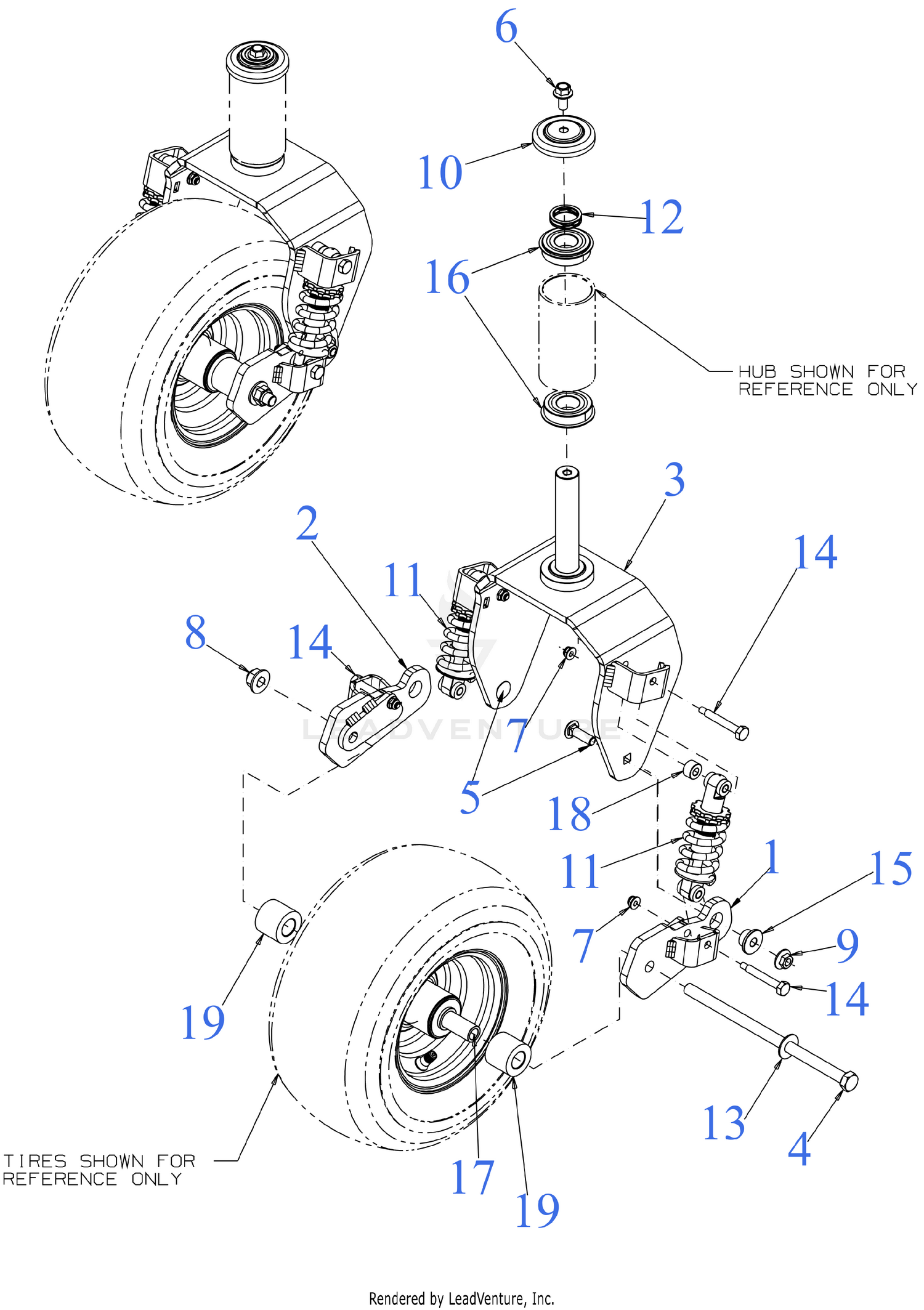

Front Caster
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 603Z05500D | CASTER PIVOT BRACKET (RH) Price: $49.28 |
| 2 | 603Z06419D | CASTER PIVOT BRACKET (LH) Price: $49.28 |
| 4 | 710-05374 | SCREW 1/2-13 x 9.5 GR5 Price: $11.15 |
| 5 | 710-05408 | CARRIAGE BOLT 3/8-16 X1.25 GR5 Price: $3.37 |
| 6 | 710-06551 | BOLT - 3/8-16:.75:GR5:PATCH LOCK Price: $4.55 |
| 7 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 8 | 712-04150 | NUT Price: $3.74 |
| 9 | 712-04217 | FLANGE LOCK NUT Price: $3.75 |
| 10 | 721-04961A | AXLE CAP Price: $19.31 |
| 11 | 732P06646 | SHOCK ABSORBER Price: $54.89 |
| 12 | 736-05033A | WAVE WASHER Price: $4.19 |
| 13 | 736-3084 | FLAT WASHER Price: $4.39 |
| 14 | 738-04172A | SHOULDER SCREW Price: $3.91 |
| 15 | 738-06874 | SHOULDER SPACER Price: $6.24 |
| 16 | 941-05022A | BALL BEARING 25X52X15 Price: $17.83 |
| 17 | 750-05351A | CASTER AXLE SPACER Price: $18.26 |
| 18 | 750-05512 | SPACER .330X.715X.430 Price: $16.76 |
