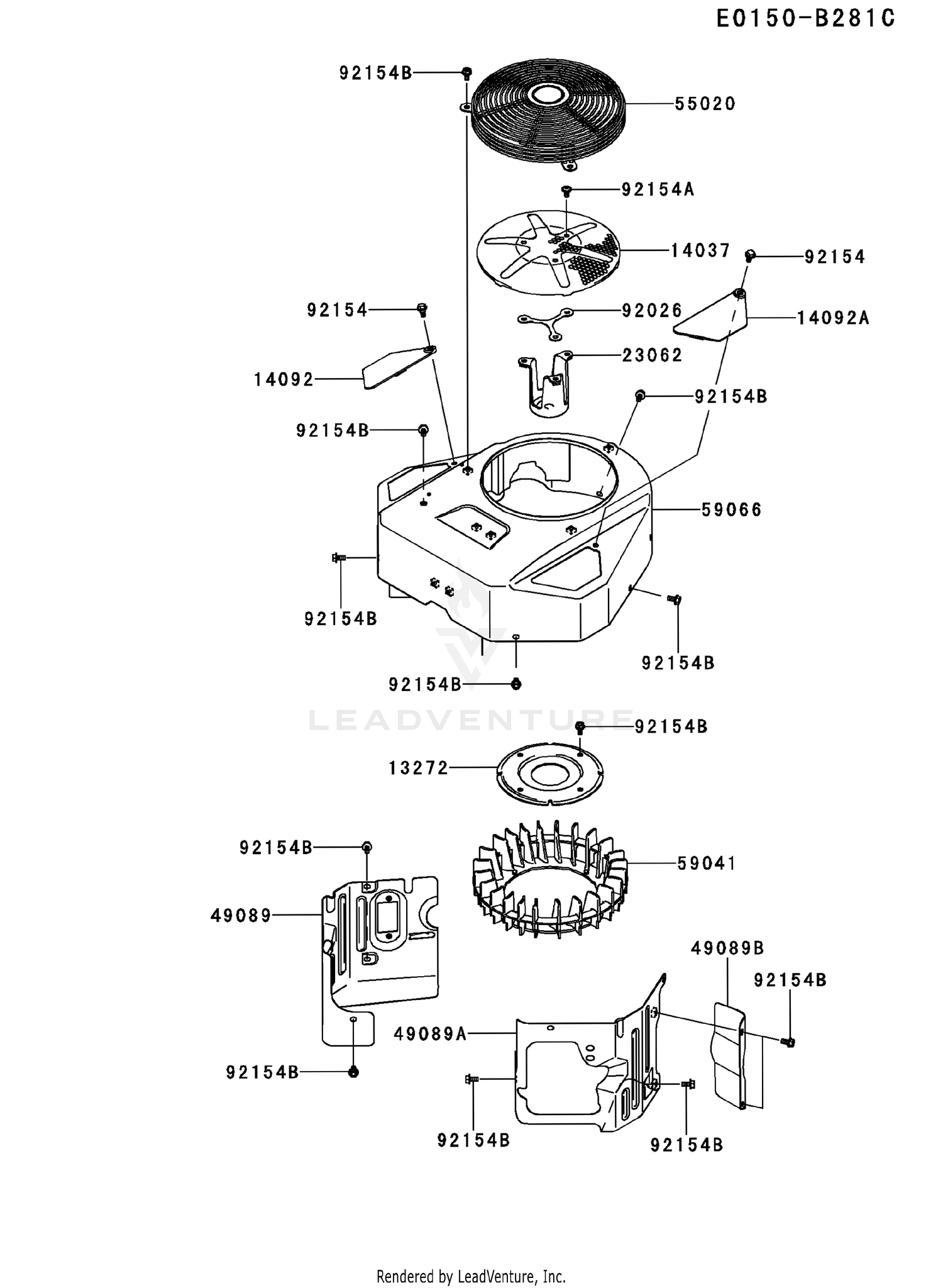

FX730V-AS39 COOLING
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 13272 | KM-13272-1487 | PLATE-FAN Price: $8.10 |
| 14037 | KM-14037-70089H | GRASS SCREEN Price: $31.66 |
| 14092 | KM-14092-1039 | COVER Price: $2.06 |
| 14092A | KM-14092-1040 | COVER Price: $2.06 |
| 23062 | KM-23062-7022 | BRACKET-GRASS SCREEN Price: $9.14 |
| 49089 | KM-490890888753 | ENGINE SHROUD Price: $28.99 |
| 49089A | KM-49089-0926 | SHROUD-ENGINE Price: $27.77 |
| 49089B | KM-49089-7076 | ENGINE SHROUD Price: $5.89 |
| 55020 | KM-5502070179H | GUARD Price: $45.93 |
| 59041 | KM-59041-0034 | FLYWHEEL FAN This part replaces KM-59041-7014. Price: $12.99 |
| 59066 | KM-590667040753 | HOUSING-FAN (ORDER FROM KAWASAKI) Not Available Price: |
| 92026 | KM-92026-7007 | SPACER-SHIM Price: $5.19 |
| 92154 | KM-92154-1119 | BOLT Price: $2.54 |
| 92154A | KM-92154-2687 | BOLT 6X12 Price: $1.24 |
