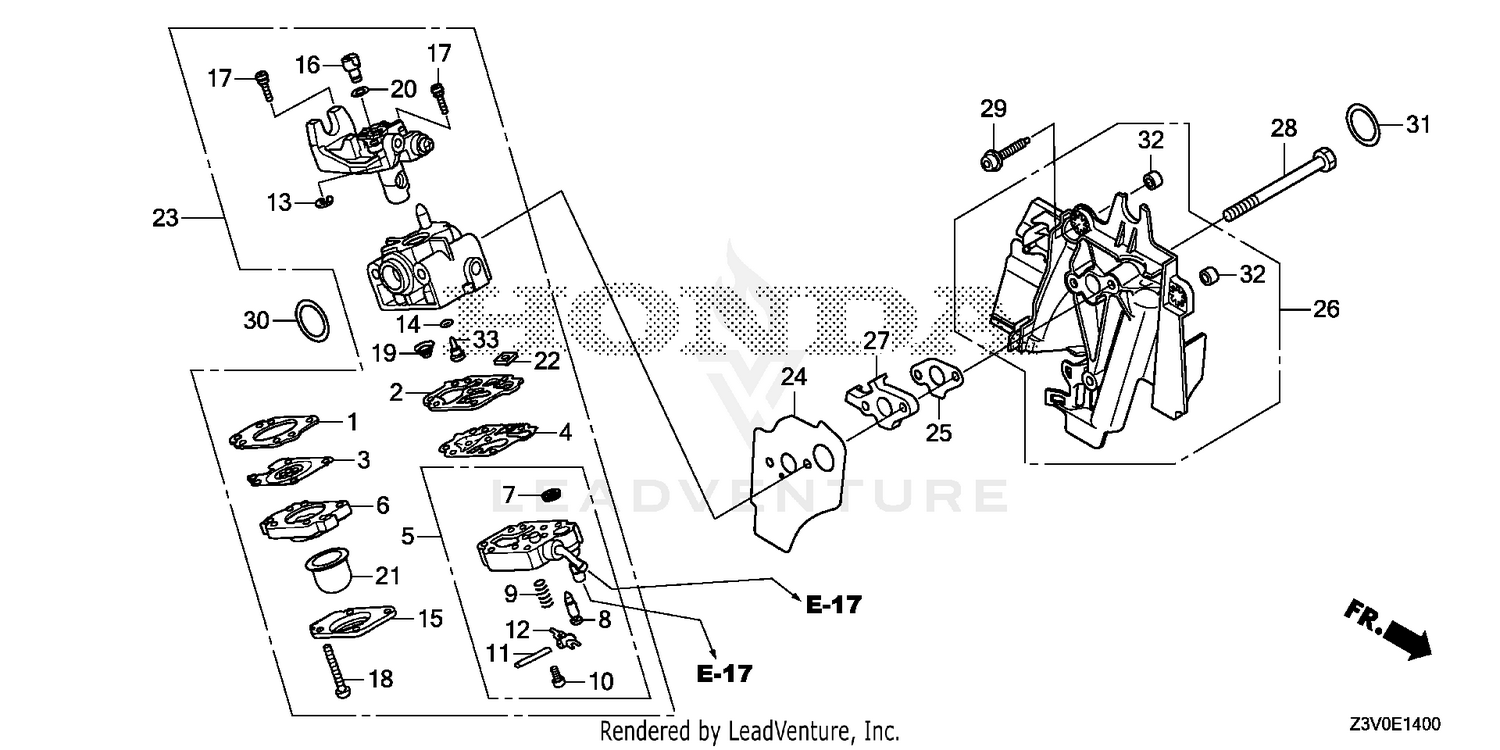

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZM3-004 |
GASKET, METERING DIAPHRAGM Price: $2.30 |
| 2 |
16011-Z0H-013 |
GASKET, PUMP (CARBURETOR NO.) Price: $4.94 |
| 3 |
16013-Z0H-003 |
DIAPHRAGM ASSY., METERING Price: $17.52 |
| 4 |
16014-ZM3-004 |
DIAPHRAGM, PUMP Price: $4.18 |
| 6 |
16017-ZM3-004 |
BODY ASSY., AIR PURGE Price: $9.98 |
| 7 |
16018-ZM3-802 |
SCREEN, INLET (CARBURETOR NO.) Price: $1.30 |
| 8 |
16019-ZM3-004 |
VALVE, INLET NEEDLE Price: $5.30 |
| 9 |
16020-ZM3-004 |
SPRING, METERING LEVER Price: $2.32 |
| 10 |
16021-ZM3-004 |
SCREW, METERING LEVER PIN Price: $2.22 |
| 11 |
16022-ZM3-014 |
SEE PART DETAILS - PRI; PIN, METERING LEVER Price: $2.16 |
| 12 |
16023-ZM3-004 |
LEVER, METERING Price: $2.90 |
| 13 |
16024-Z0H-003 |
RING, RETAINING Price: $1.86 |
| 14 |
16025-ZM3-004 |
O-RING Price: $2.90 |
| 15 |
16026-ZM3-004 |
COVER, PRIMER PUMP Price: $4.00 |
| 16 |
16027-ZM3-004 |
SWIVEL Price: $3.34 |
| 17 |
16028-ZM3-004 |
SCREW, THROTTLE COLLAR Price: $1.80 |
| 18 |
16029-ZM3-004 |
SCREW, PUMP COVER Price: $1.80 |
| 19 |
16030-ZM3-004 |
SPRING, PUMP Price: $1.90 |
| 20 |
16031-ZM3-004 |
WASHER Price: $1.80 |
| 21 |
16032-ZM3-014 |
PUMP, PRIMER This part replaces 16032-ZM3-004. Price: $1.29 |
| 22 |
16035-ZM3-802 |
FILTER, FUEL INLET (CARBURETOR NO.) Price: $11.42 |
| 23 |
16100-Z3V-804 |
CARBURETOR ASSY. This part replaces 16100-Z3V-803. Price: $48.95 |
| 24 |
16221-Z3V-000 |
GASKET, CARBURETOR Price: $1.50 |
| 25 |
16231-Z3V-000 |
GASKET, SHROUD Price: $1.22 |
| 26 |
19631-Z3V-000 |
SHROUD Price: $14.16 |
| 27 |
19632-Z3V-000 |
SPACER, SHROUD Price: $1.80 |
| 28 |
90014-Z3F-000 |
SEE PART DETAILS - PRI; BOLT (5X58) Price: $3.26 |
| 29 |
90018-Z3E-901 |
BOLT, SOCKET (5X16) Price: $4.44 |
| 30 |
91301-ZM3-000 |
O-RING (14.8X2.4) Price: $1.34 |
| 31 |
91308-Z3V-000 |
O-RING (14.8X2.4) Price: $1.28 |
| 32 |
91506-ZM3-000 |
COLLAR A, HEAD COVER Price: $1.58 |
