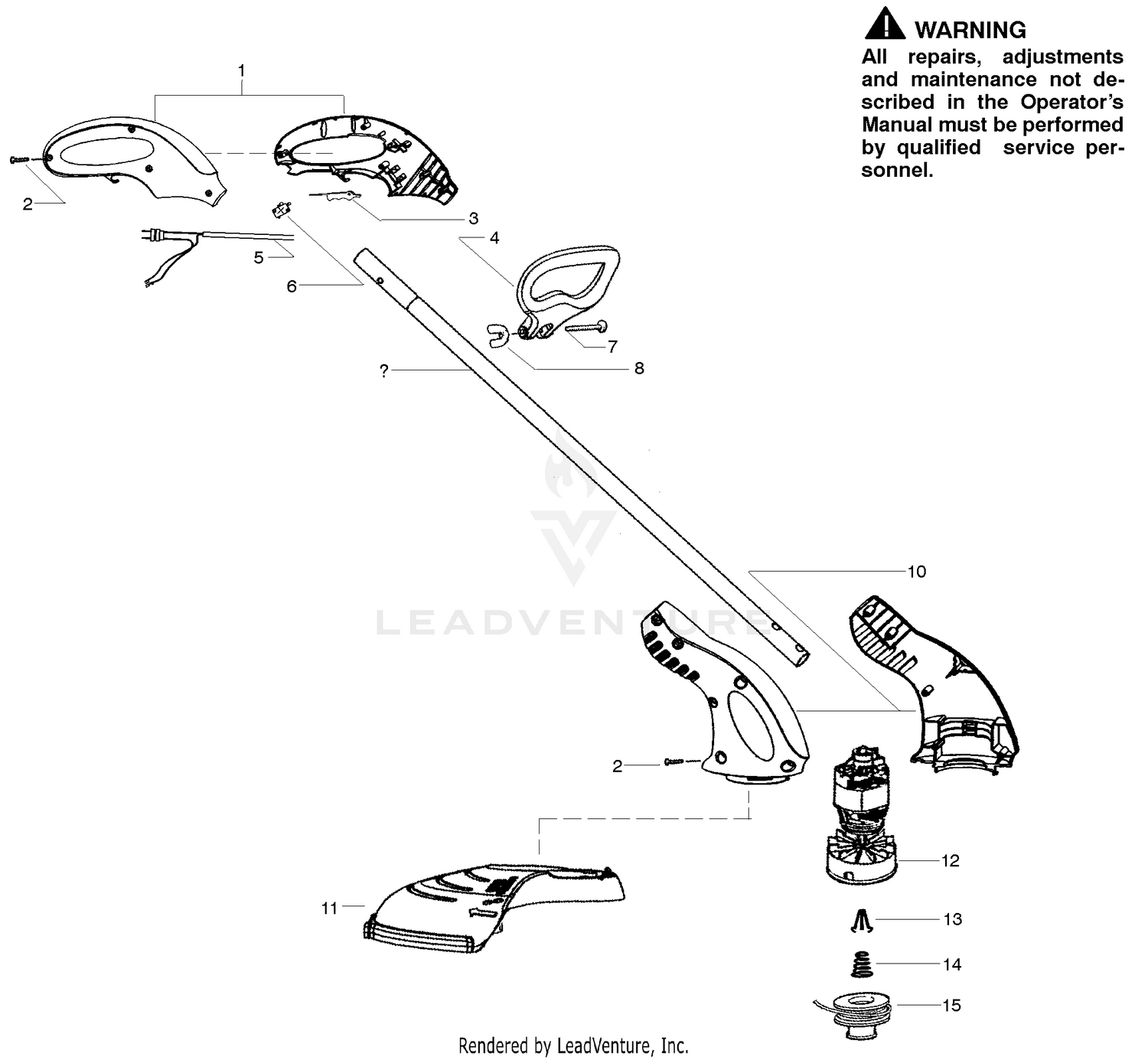

Product Complete
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530403945 | Assy-Handle Set Price: $7.99 |
| 2 | 530016120 | Screw Price: $1.99 |
| 3 | 530403818 | Trigger Price: $1.99 |
| 4 | 530403805 | Handle-Assist Price: $6.99 |
| 6 | 530402879 | Switch Price: $2.99 |
| 7 | 530403886 | Bolt-Carriage Price: $1.99 |
| 8 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 9 | 530404073 | Assy-Tube w/Decal Price: $11.99 |
| 10 | 530403946 | Housing Set Price: $7.99 |
| 12 | 530404110 | Assy-Motor/Hub Price: $44.99 |
| 13 | 530401957 | Retainer-Spool Price: $1.99 |
| 14 | 530401958 | Spring-Return Price: $1.99 |
| 14 | X-426-3 | Clamp-Hose Price: Call Us |
| 15 | 220368 | Stud-Valve Cover Price: Call Us |
| 15 | 952701663 | Accy-Spool w/Line Price: $7.95 |
| 16 | 270034 | Gasket-Valve Cover Price: Call Us |
| 17 | 270036 | Cover-Valve Price: Call Us |
