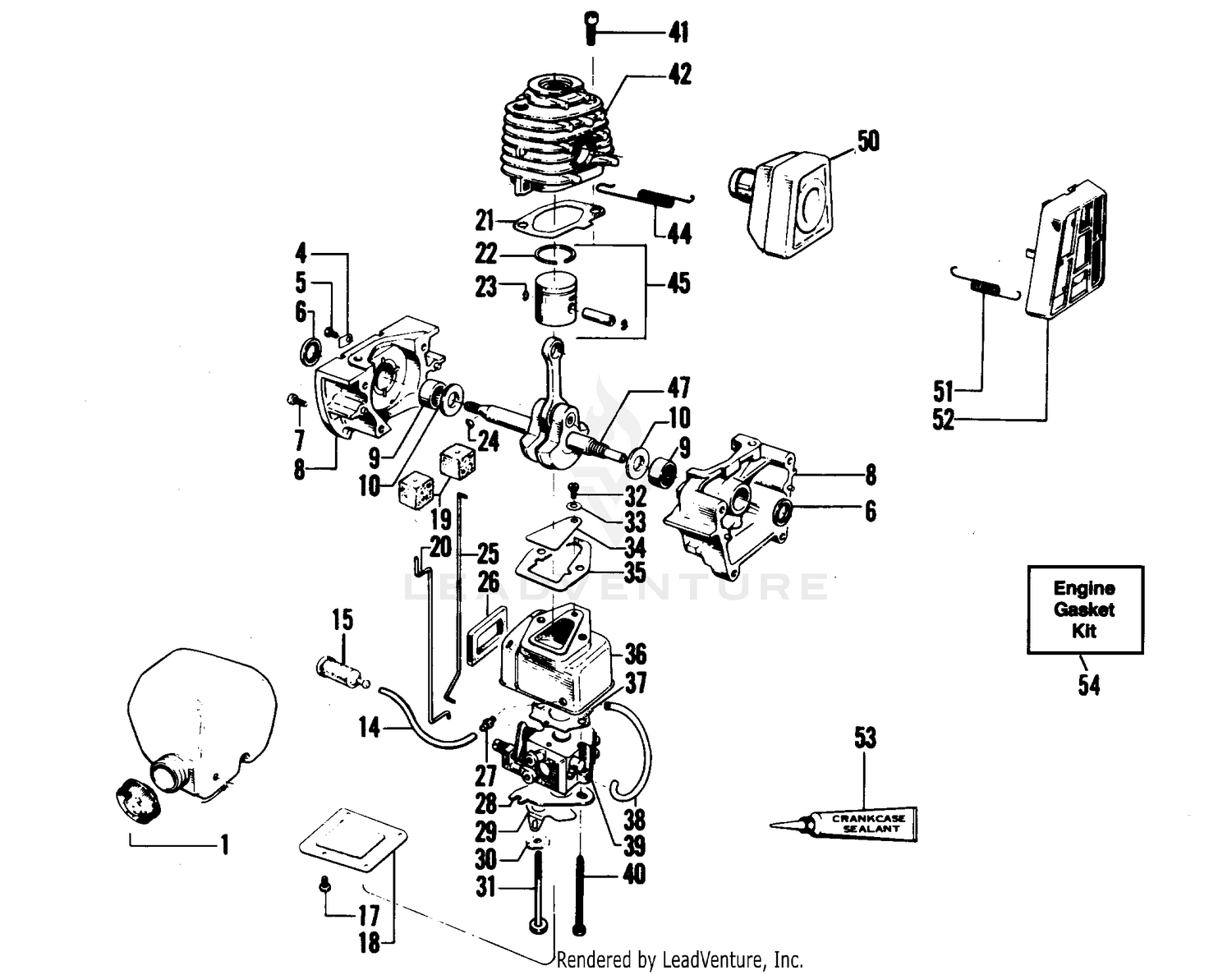

| Ref | Part Number | Description |
|---|
| 1 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 4 |
530024651 |
Clamp - Choke Wire Price: $3.33 |
| 5 |
530015004 |
Screw - Choke Rod Clamp (Pan. Hd. 8 - 32 x 5/16) Price: $1.99 |
| 7 |
530015369 |
Screw - Crankcase (Fil. Hd. 10 - 24 x 5/8) Price: $0.04 |
| 8 |
530010757 |
Crankcase Ass'y. (Incl. 6, 9 & Qty. 1 of #7) Price: Call Us |
| 9 |
530032029 |
Bearing - Crankcase Price: $7.99 |
| 10 |
530015351 |
Washer - Thrust - Crankcase Price: $3.99 |
| 11 |
530010776 |
Fuel Tank Ass'y. (Incl. 3, 14, 15, 16 & 27) Price: $3.33 |
| 14 |
530021042 |
Fuel Line - Type 1 Price: $3.33 |
| 14 |
530069247 |
Line Kit - Type 2 Price: $3.99 |
| 15 |
530091878 |
Type 1 Price: $5.99 |
| 15 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 17 |
530015235 |
Screw - Carburetor Case Cover (Pan Hd. 8 - 18 x 9/16) Price: Call Us |
| 18 |
530026029 |
Cover Carburetor Case Price: $3.99 |
| 20 |
530026236 |
Choke Wire Price: $1.99 |
| 22 |
530026413 |
Ring - Piston Price: $4.99 |
| 23 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 24 |
530015126 |
Key - Flywheel Price: $1.99 |
| 25 |
530024902 |
Throttle Wire Price: $3.33 |
| 27 |
530025472 |
Type 1 Price: $1.99 |
| 27 |
530026981 |
Type 2 Price: $1.99 |
| 28 |
530026237 |
Choke Wire Guide Plate Price: $3.33 |
| 29 |
530024558 |
Choke Shutter Price: $2.99 |
| 30 |
530015254 |
Washer - Wave Price: $1.99 |
| 31 |
530015404 |
Screw - Carburetor Shoulder (Fil. Hd. 10 - 24 x 2 1/8) Price: $2.99 |
| 32 |
530015241 |
Screw - Reed Valve (Pan. Hd. 6 - 19 x 5/16) Price: $1.99 |
| 33 |
530023367 |
Washer - Reed Valve Screw (Flat No. 6) Price: Call Us |
| 34 |
530024438 |
Reed Valve Price: Call Us |
| 36 |
530024409 |
Carburetor Housing Price: $9.99 |
| 38 |
530069238 |
Line Kit Price: $3.33 |
| 39 |
530035183 |
Carburetor - WA - 149 (see pg. 4 for assembly) Price: $65.89 |
| 40 |
530015379 |
Screw - Carburetor (Fil. Hd. 10 - 24 x 1 -7/8) Price: $2.99 |
| 41 |
530015239 |
Screw - Cylinder (Soc. Hd. 1/4 - 20 x 3/4) Price: $1.99 |
| 42 |
530012095 |
Type 1 Price: $3.33 |
| 42 |
530012349 |
CYLINDER This part replaces 530012168. Price: $39.99 |
| 44 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 45 |
530010753 |
Piston Kit (Incl. 22,23) Price: Call Us |
| 47 |
530026418 |
Crankshaft & Rod Ass'y. Price: $3.33 |
| 51 |
530024932 |
Spring - Muffler Guard Price: $3.33 |
| 52 |
530024855 |
Guard - Muffler Price: $5.99 |
| 53 |
530030054 |
Sealant - Crankcase Price: $17.99 |
