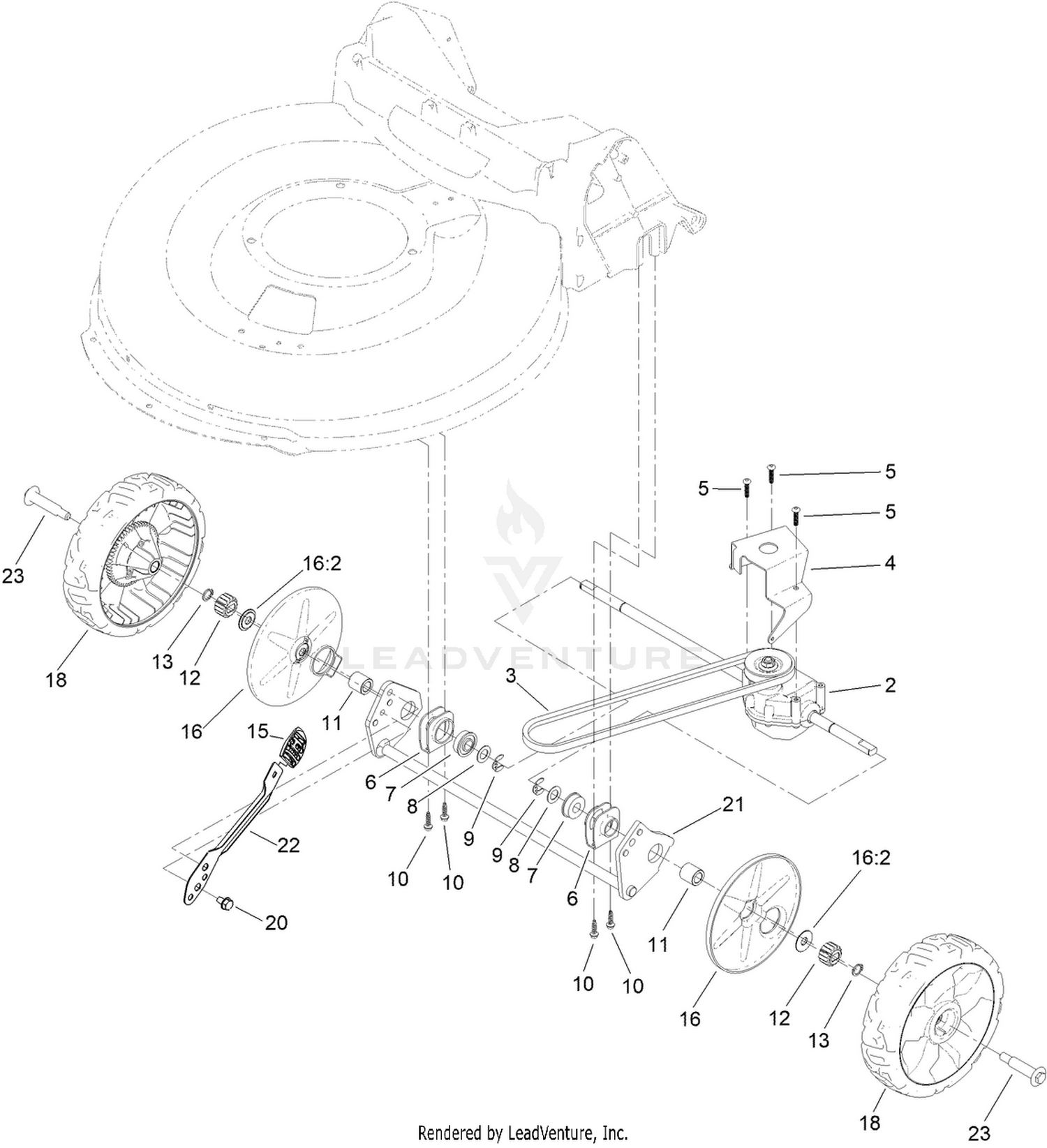

| Ref | Part Number | Description |
|---|
| 2 |
130-6734 |
TRANSMISSION Price: $97.99 |
| 3 |
110-9429 |
V-BELT Price: $15.99 |
| 4 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 5 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 6 |
138-3234 |
RETAINER-BEARING Price: $3.09 |
| 7 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 8 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 9 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 10 |
139-1690 |
SCREW-PLASTIC, HWH Price: $0.29 |
| 11 |
127-6896 |
BUSHING-SLEEVE Price: $3.09 |
| 12 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 13 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 15 |
105-3042 |
KNOB-LEVER, HOC Price: $4.09 |
| 16 |
131-4513 |
WHEEL COVER ASM Price: $9.99 |
| 18 |
130-6714 |
WHEEL GEAR ASM, 8IN Price: $31.99 |
| 20 |
139-1710 |
SCREW-THD CUT, HWH Price: $1.89 |
| 21 |
134-1669-03 |
AXLE REAR Price: Call Us |
| 22 |
134-1757 |
ARM SPRING Price: Call Us |
