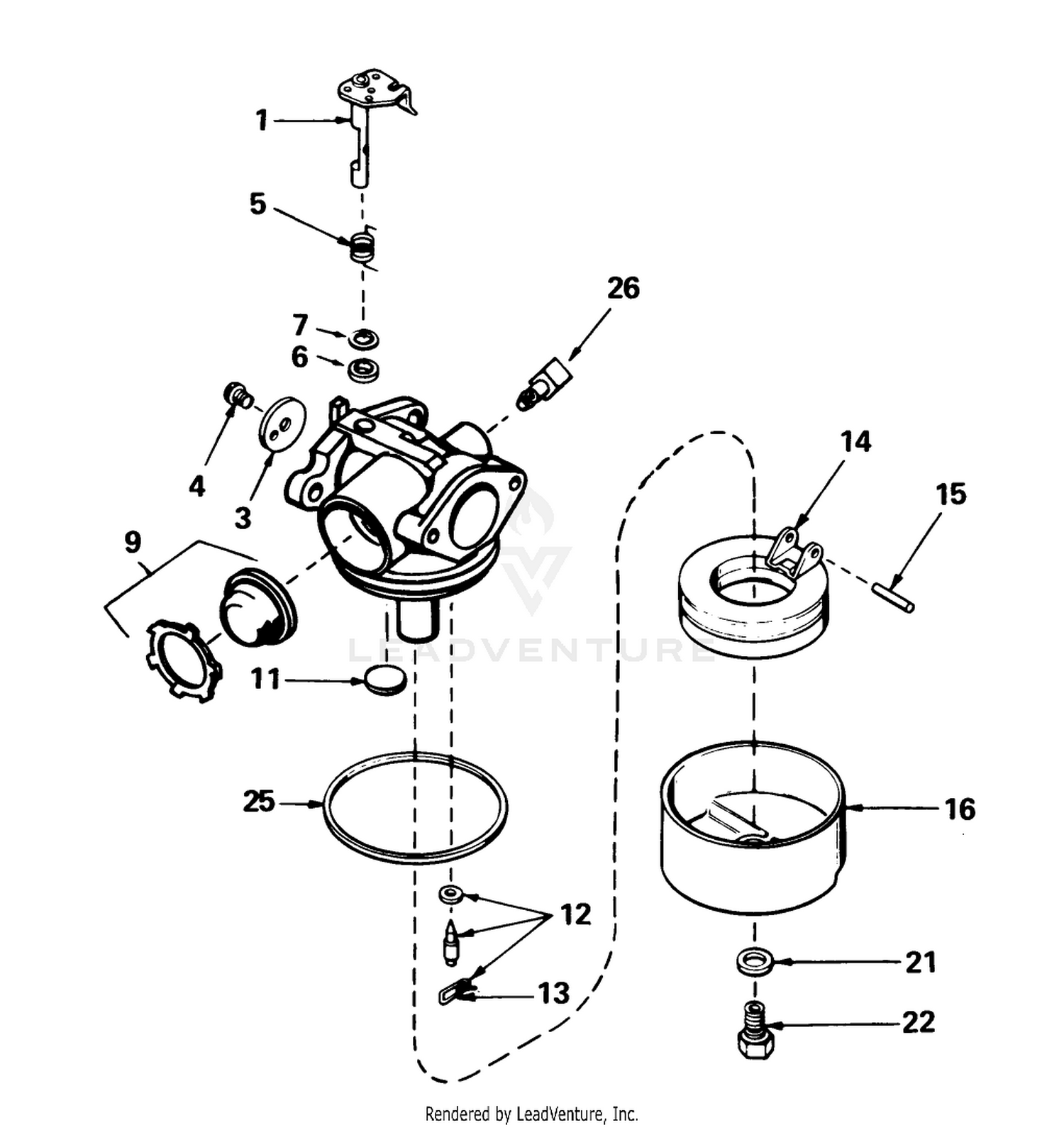

| Ref | Part Number | Description |
|---|
| 1 |
590599A |
Pin, Spring (Incl. Ref. #4) Price: Call Us |
| 1 |
631615 |
Throttle Shaft and Lever ASM Price: Call Us |
| 2 |
590600 |
Washer Price: Call Us |
| 3 |
590615 |
Retainer Price: Call Us |
| 3 |
631616 |
Throttle-Shutter Price: Call Us |
| 4 |
590601 |
Washer Price: Call Us |
| 4 |
650506 |
Screw-Shutter Price: Call Us |
| 5 |
590598 |
Brake Spring Price: Call Us |
| 5 |
631767 |
Spring-Return, Throttle Price: Call Us |
| 6 |
590616 |
Dog-Starter Price: Call Us |
| 6 |
631971 |
Seal-Dust Price: Call Us |
| 7 |
590617 |
Spring-Dog Price: Call Us |
| 7 |
631184 |
Washer-Seal, Dust Price: Call Us |
| 8 |
590618 |
Pulley Price: Call Us |
| 9 |
590619 |
Rewind Spring Price: Call Us |
| 9 |
632047 |
Primer Assy. Price: Call Us |
| 10 |
590620 |
Cover-Spring Price: Call Us |
| 11 |
590622 |
Housing-Starter Price: Call Us |
| 11 |
631027 |
Plug-Welch, Atmospheric Vent Price: Call Us |
| 12 |
590535 |
Rope-Starter (98 cut to length) Price: Call Us |
| 12 |
631021 |
Inlet Needle, Seat Clip Assy. (Incl. No. 13) Price: Call Us |
| 13 |
631022 |
Clip-Spring Price: Call Us |
| 14 |
632019 |
Float Price: Call Us |
| 15 |
631024 |
Shaft-Float Price: Call Us |
| 16 |
631700 |
Bowl Float Price: Call Us |
| 21 |
631334 |
Gasket-Bowl Price: Call Us |
| 22 |
632071 |
Nut-Bowl Price: Call Us |
| 25 |
631028 |
O Ring-Bowl, Float Price: Call Us |
| 26 |
631807 |
Fitting-Fuel Price: Call Us |
