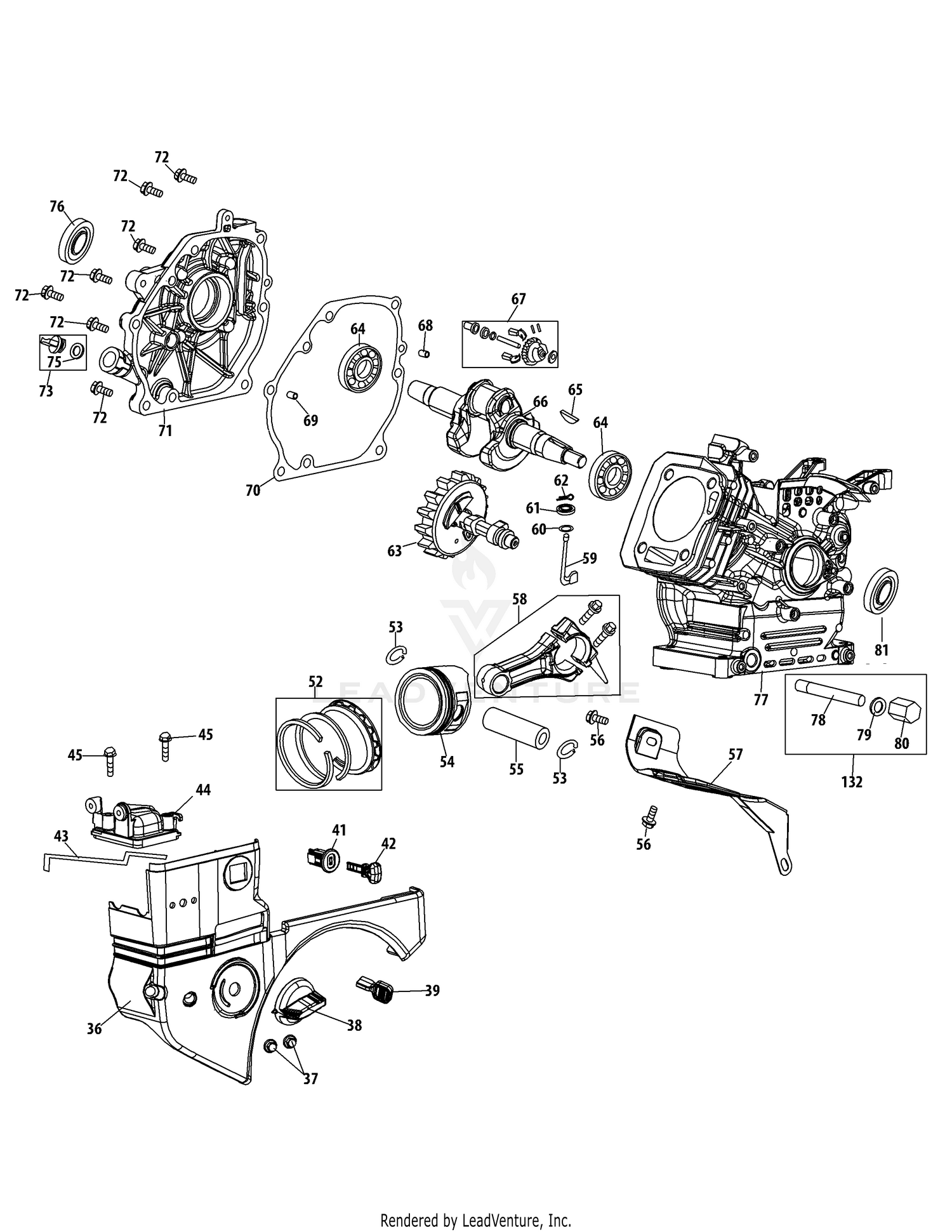

| Ref | Part Number | Description |
|---|
| 36 |
951-10634A |
Air Cleaner Housing This part replaces 951-10634. Price: $28.25 |
| 37 |
712-04213 |
Nut Price: $5.94 |
| 38 |
951-11284 |
Choke Knob Price: $6.22 |
| 39 |
751P10757A |
THROTTLE LEVER KNOB This part replaces 951-10757. Price: $6.01 |
| 41 |
951-10637 |
Key Switch Base Price: $13.28 |
| 42 |
951-10630 |
Ignition Key This part replaces 731-05632. Price: $6.07 |
| 43 |
951-10640 |
Choke Push Rod Price: $8.93 |
| 44 |
951-10635 |
Heater Box Price: $14.68 |
| 45 |
710-04919 |
Bolt M6×25 Price: $3.86 |
| 52 |
751P12111A |
PISTON RING SET This part replaces 951-12111. Price: $5.82 |
| 53 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 54 |
951-12007 |
Piston Price: $31.34 |
| 55 |
951-11633 |
PISTON PIN Price: $6.66 |
| 56 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 57 |
951-11113 |
Air Shield Price: $8.11 |
| 58 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 59 |
951-14053 |
Governor Shaft This part replaces 951-11356. Price: $13.94 |
| 60 |
736-04461 |
Washer 5.2×1.9 Price: $3.50 |
| 61 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 62 |
714-04078 |
Cotter Pin This part replaces 714-04074. Price: $3.66 |
| 63 |
951-11575 |
CAMSHAFT ASSEMBLY Price: $57.92 |
| 64 |
951-11369 |
Radial Ball Bearing, 6205 Price: $30.42 |
| 65 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 66 |
951-11247A |
Crankshaft Assembly Price: $119.66 |
| 67 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 68 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 69 |
715-04089 |
DOWEL PIN Not Available Price: |
| 70 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 71 |
751P17706 |
CRANKCASE COVER This part replaces 951-12125. Price: $29.04 |
| 72 |
710-04932 |
Bolt M8×32 Price: $3.66 |
| 73 |
951-11283 |
Oil Fill Plug Asm Price: $6.11 |
| 75 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 76 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 78 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 79 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 80 |
710-04906 |
Oil Drain Plug Price: $5.86 |
| 81 |
751P11370A |
OIL SEAL This part replaces 951-11370. Price: $2.23 |
| 132 |
951-10641 |
Oil Drain Assembly Price: $11.36 |
