Home / OPE / Riding Products / 652C, Reelmaster 4240-D Traction Unit, 2005 (SN 652C001001-652C099999) / Front Arms

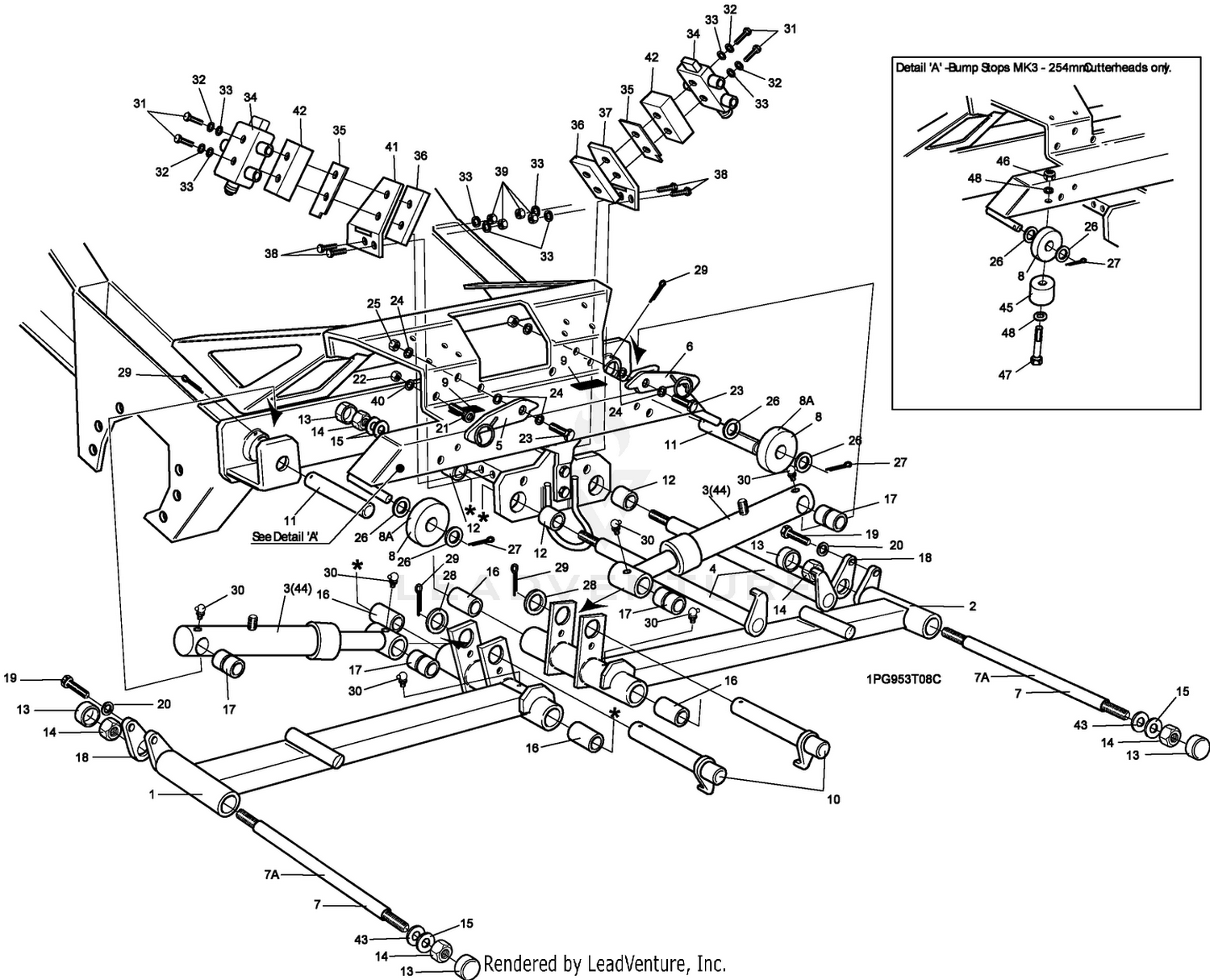

Front Arms

Front Arms

Parts (48)

RefPart NumberDescription
1 910470W ARM FRONT W/A RH Price: $655.11
2 910475W ARM FRONT W/A LH Price: $655.11
3 910109W CYLINDER LIFT Price: $275.44
4 70-05-113 FRONT ARM PIVOT PIN W/A Price: $54.61
5 994355C LATCH W/A RH This part replaces 65-01-235C. Price: $45.95
6 994350C LATCH W/A LH This part replaces 65-01-230C. Price: $45.95
7 65-05-120 HEAD PIVOT PIN (30/353MM) Price: $32.70
7 65-05-127 HEAD PIVOT PIN MK3 10"HD (400MM) Price: $38.34
8 61-01-222 ROLLER Price: $18.55
9 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
10 74-05-105 PIN FRONT CYLINDER Price: $66.29
11 74-05-103 PIN DIA25X127 Price: $30.67
12 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
13 10-11-100 NUT CAP M24 Price: $1.97
14 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
15 09555 WASHER M24 PLAIN Price: $1.31
16 876066 BUSH Price: $8.34
17 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
18 63-01-185W RETAINER Price: $48.24
19 09415 BOLT M12 X 30 GD. 8.8 PLATED This part replaces ZDH1L030U. Price: $1.40
20 09599 WASHER Price: $1.42
21 ZCS1J020U SOC HD CAP SCW. M10*20 Price: $1.31
22 09480 WASHER M10 SC SPRING Price: $1.36
23 63-11-010 HEX HD.BOLT M12*40HT/10.9 Price: $6.59
24 HY09485 WASHER M12 PLAIN Price: $1.40
25 ZNN1L000U HEX.NUT NYLOC M12 This part replaces 09453. Price: $1.40
26 09491 WASHER M16 PLAIN Price: $1.42
27 70-11-004 SPLIT PIN 4 DIA*40 Price: $5.90
28 09295 WASHER PLAIN 1" I/D Price: $1.34
29 74-11-003 SPLIT PIN 5 DIA X 50 Price: $1.39
30 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
31 ZBH1H065U BOLT - M8X65 Price: $1.38
32 03469 WASHER M8 SC SPRING Price: $1.40
33 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
34 953601 VALVE 3 PORT DIVERTER Price: $236.37
35 70-01-722 PLATE VALVE POSITION Price: $8.99
36 910217 BRACKET - DIVERTER ADJUSTER Price: $25.01
37 924163W PLATE FWD DIVERTER BRACKET LH Price: $48.71
38 ZHS1H025U SCREW SOC HD BUTTON M8*25 Price: $1.38
39 09442 NUT M8 NYL INS P TYPE Price: $1.40
40 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
41 924164W PLATE FWD DIVERTER BRACKET RH Price: $48.71
42 924053 Plate - Packer Price: $16.79
43 09298 WASHER 1.1/8 X 1.5/8 X 15G Price: $1.69
44 50-06-013 SEAL KIT FOR Price: $15.78
45 61-07-003 RUBBER BUFFER Price: $9.55
46 09544 NUT M6 NYL INS GD 8 Price: $1.34
47 ZDH1F045U SETSCREW - M6X45 Price: $1.31
