| Ref | Part Number | Description |
|---|
| 1 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 1 |
532123385 |
Pulley Price: $22.99 |
| 2 |
100-3879 |
HYD HOSE ASM Price: $167.28 |
| 2 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 3 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 3 |
532123655 |

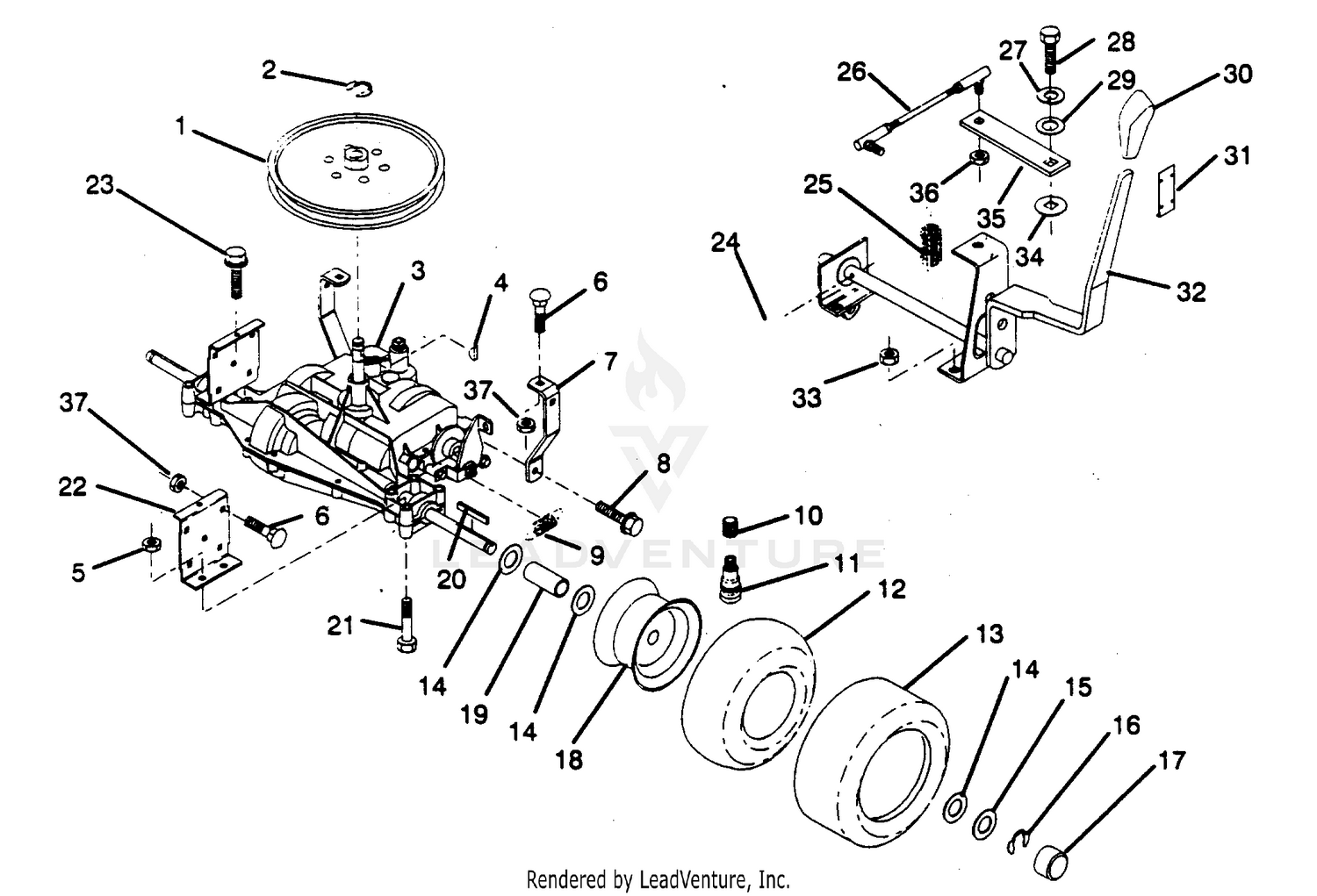

Transaxle, Foote 6 Speed, Model No. 4360-18 Price: $489.53 |
| 4 |
110-0004 |
HYD MANIFOLD ASM This part replaces 98-4579. Price: $4,068.40 |
| 4 |
532125096 |
Key, Woodruff #9 Price: $3.99 |
| 5 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 6 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 6 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 7 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 7 |
532123378 |
Strap, Torque Price: $2.99 |
| 8 |
354-79 |
CAP-DUST Price: $7.81 |
| 8 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 9 |
532146682 |
Spring Return Brake This part replaces 532110422. Price: $4.99 |
| 9 |
86-9190 |
HOSE Price: $84.09 |
| 10 |
532059192 |
Cap, Valve Price: $3.99 |
| 11 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 11 |
532065139 |
Stem, Valve Price: $5.99 |
| 12 |
532008134 |
Tube Price: $35.99 |
| 12 |
75-6640 |
FITTING-HYD, SPECIAL Price: $80.34 |
| 13 |
532122075 |
TIRE.FRT.(16X6).TURF.SAVER This part replaces 532106230. Price: $51.99 |
| 13 |
98-9348 |
HYD HOSE ASM Price: $140.31 |
| 14 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 14 |
99-6160 |
FITTING-ELBOW 90 LONG This part replaces 98-9781. Price: $92.35 |
| 15 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 15 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 16 |
812000001 |
E-Ring Price: $2.99 |
| 16 |
98-9347 |
HYD HOSE ASM Price: $212.81 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
532104757 |
Cap, Axle Price: $1.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
532124844 |
Rim Price: $137.43 |
| 19 |
532123409 |
Spacer Price: $3.08 |
| 20 |
532123583 |
Key, Square Price: $2.69 |
| 20 |
98-9742 |
VALVE-CONTROL, FLOW Price: $158.79 |
| 21 |
874760644 |
Bolt, Fin, Hex 3/8-16x 2-3/4 Price: $3.99 |
| 22 |
100-3878 |
HYD HOSE ASM Price: $187.15 |
| 22 |
532123377 |
Bracket, Transaxle Price: $2.99 |
| 23 |
340-1 |
FITTING-STRAIGHT Price: $10.19 |
| 23 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 24 |
876020416 |
Pin, Cotter 1/8 X 1 Price: $3.99 |
| 25 |
340-143 |
ELBOW-SWIVEL, 90 DEG Price: $58.91 |
| 25 |
532128085 |
Extension, Spring This part replaces 532123393. Price: $4.99 |
| 26 |
532123632 |
Link, Shift Price: $14.99 |
| 27 |
810040400 |
Washer, Lock Hvy. Helical Spring 1/4 Price: $3.99 |
| 28 |
871040412 |
Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8 Price: $3.99 |
| 29 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 30 |
532122011 |
Knob, Shift Contol Price: $6.08 |
| 31 |
532123692 |
Retainer, Knob Price: $2.42 |
| 32 |
532125976 |
Assembly, Shift Handle Price: $21.03 |
| 33 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 34 |
532105701 |
Washer, Shift Plate Price: $3.99 |
| 35 |
532123539 |
Arm, Shift Price: $2.38 |
| 36 |
873610500 |
NUT This part replaces 873810500. Price: Call Us |
