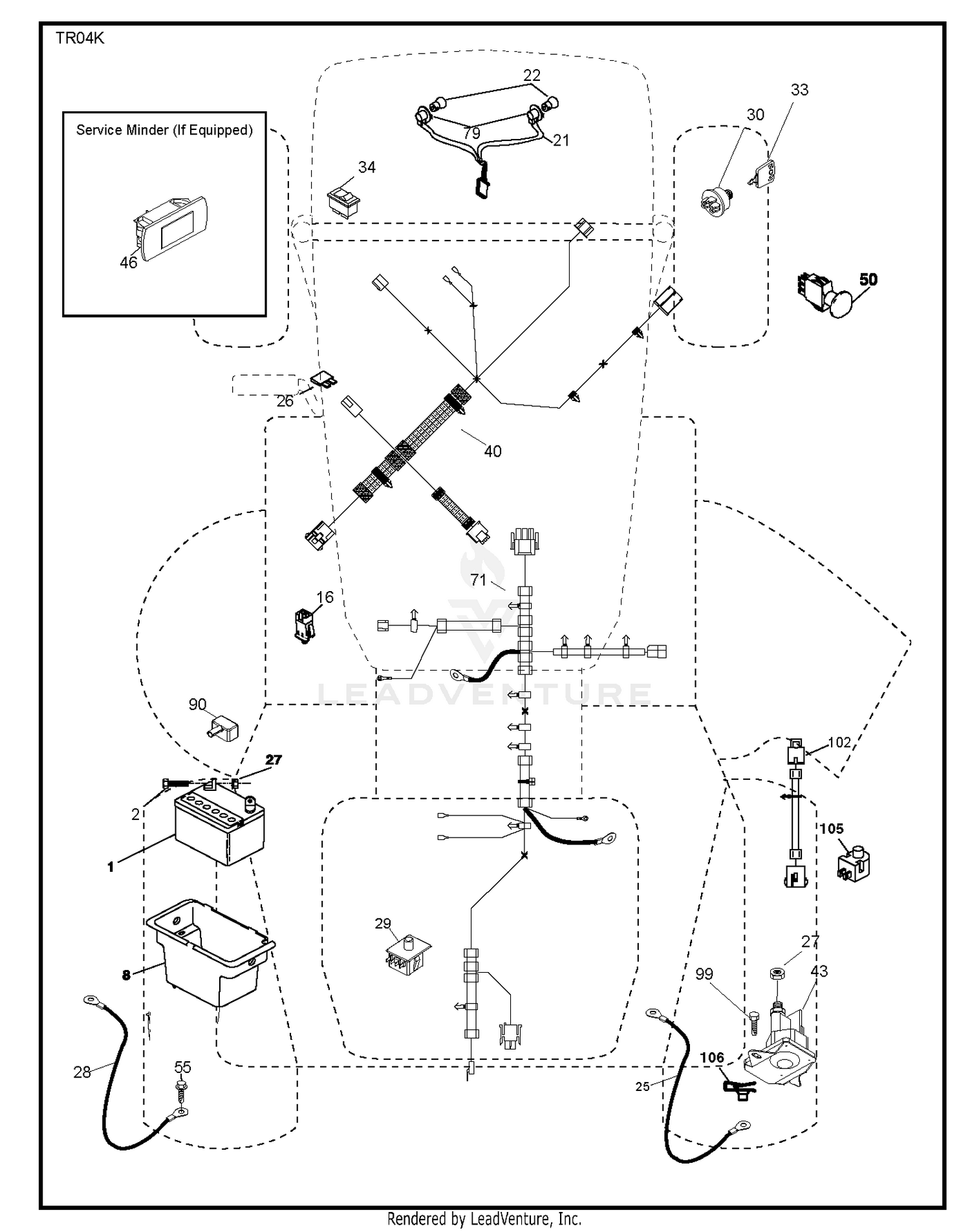

| Ref | Part Number | Description |
|---|
| 1 |
27-6860 |
DISCONTINUED Price: Call Us |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
43-6810 |
SPIDER-TORQUE This part replaces 40-2190. Price: $138.50 |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $11.99 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 12 |
99-5694 |
NUT W/WASHER This part replaces 43-6800. Price: $3.86 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 16 |
43-2690 |
SEE PB #747 Price: Call Us |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 19 |
27-6880 |
BRAKE LEVER ASSY Price: $85.13 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 25 |
581498001 |
CABLE.BATT.RED.8GA.17 Price: $4.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
532421686 |
CABLE.GROUND.REAR.BATTERY.8G Price: $11.99 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $12.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 33 |
532411933 |
KEY.CHAIN.BLISTER.PACK.GEN.USA Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 40 |
585555301 |
HARNESS.DASH.RRBATT.EL.CHG Price: $27.99 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER Price: $7.99 |
| 46 |
586161801 |
GUAGE.SRVCMNDR.HRMTR. Price: $17.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $9.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
501133701 |
HARNESS.CHASSIS.RRBATT.RDYSTRT Price: $39.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 102 |
581023401 |
HARNESS.PIGTAIL.VARIATOR.SD Price: $12.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $11.99 |
