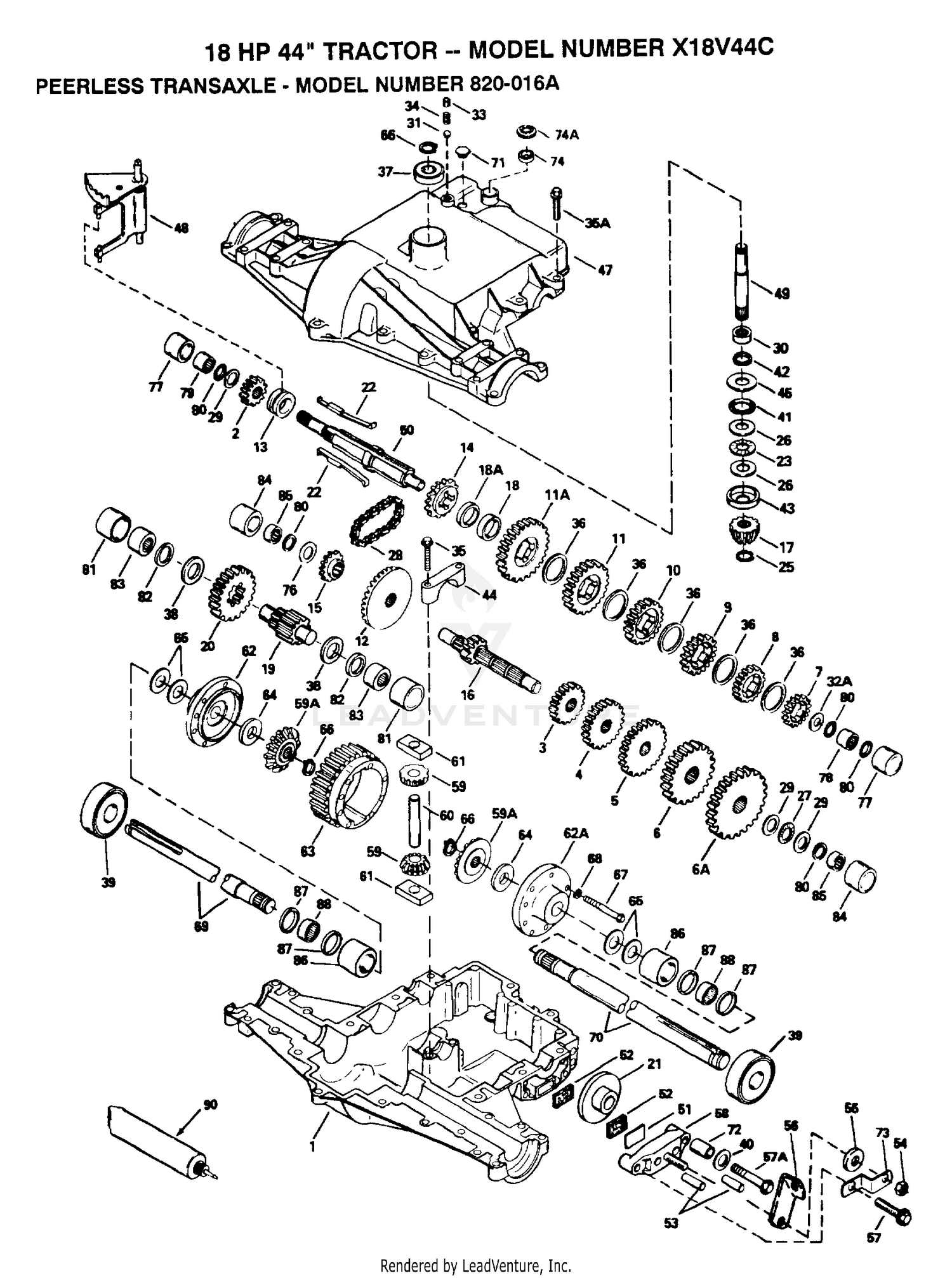

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
770088 |
CASE TRANSAXLE Price: Call Us |
| 2 |
68-9760 |
DISCONTINUED Price: Call Us |
| 2 |
778253 |
GEAR, SPUR, 15T Price: Call Us |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 3 |
778211 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 4 |
115-4519 |
FUEL TANK ASM This part replaces 43-4150. Price: $634.24 |
| 4 |
778240 |
GEAR, SPUR, 18 TEETH Price: Call Us |
| 5 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
778201 |
GEAR, SPUR, 25T Price: Call Us |
| 6 |
32104-96 |
SCREW-HH Price: $5.59 |
| 6 |
778202 |
GEAR, SPUR, 28T Price: Call Us |
| 6A |
778208 |
GEAR, SPUR, 31T Price: Call Us |
| 7 |
37-9550 |
STRAP-TANK, FUEL Price: $46.74 |
| 7 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 8 |
62-7650 |
GASKET Price: $4.28 |
| 8 |
778203A |
GEAR, SPUR, 22T Price: Call Us |
| 9 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 9 |
778204A |
GEAR, SPUR, 25T Price: Call Us |
| 10 |
778239A |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 11 |
32144-53 |
SCREW-SHWH, THREAD FORMING Price: $3.19 |
| 11 |
778207A |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 11A |
778216A |
GEAR, SPUR, 41T Price: Call Us |
| 12 |
105-2563 |
SENDER-FUEL Price: $191.04 |
| 12 |
778246 |
GEAR BEVEL, 33T Price: Call Us |
| 13 |
110-4109 |
HOSE-FUEL This part replaces 104-0076. Price: $11.24 |
| 13 |
784216 |
COLLAR SHIFT Price: Call Us |
| 14 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 14 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 15 |
55-3572 |
FUEL CAP ASM Price: $15.49 |
| 15 |
786082 |
SPROCKET 9T Price: Call Us |
| 16 |
22-7810 |
SPACER Price: $16.90 |
| 16 |
776291 |
SHAFT COUNTER Price: Call Us |
| 17 |
321-6 |
SCREW-HH Price: $0.25 |
| 17 |
778245 |
BEVEL PINION, 13T Price: Call Us |
| 18 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 18 |
786121 |
SPACER, .350/.340 THICK Price: Call Us |
| 18A |
786122 |
SPACER, .276/.268 THICK Price: Call Us |
| 19 |
2412-4 |
CLAMP-R Price: $4.22 |
| 19 |
776275 |
SHAFT, OUTPUT, 9T Price: Call Us |
| 20 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 20 |
778247 |
GEAR, OUTPUT, 35T Price: Call Us |
| 21 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
790043 |
DISK BRAKE Price: Call Us |
| 22 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 22 |
792138 |
KEY Price: Call Us |
| 23 |
23-7270 |
NUT-LUG Price: $10.37 |
| 23 |
780084 |
BEARING THRUST Price: Call Us |
| 24 |
32144-67 |
SCREW Price: $2.87 |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
788040 |
RETAINING RING Price: Call Us |
| 26 |
780051 |
WASHER THRUST Price: Call Us |
| 27 |
780071 |
THRUST BEARING Price: Call Us |
| 27 |
86-9600-03 |
AXLE ASM Price: $3,784.17 |
| 27 |
86-9630-03 |
AXLE ASM Price: $5,482.70 |
| 28 |
24-9830-01 |
AXLE SUPPORT ASM Price: $83.43 |
| 28 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
3219-14 |
NUT-HEX Price: $0.25 |
| 30 |
780155 |
BEARING NEEDLE Price: Call Us |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 31 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 32 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 32A |
780139 |
WASHER Price: Call Us |
| 33 |
3217-9 |
NUT-HH Price: $0.37 |
| 33 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 34 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 34 |
792079 |
SPRING Price: Call Us |
| 35 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 35 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 35A |
792129 |
SCREW HEX HD 5/16-18 X 1-1/4 Price: Call Us |
| 36 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 36 |
780108 |
WASHER THRUST Price: Call Us |
| 37 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 37 |
780119 |
BEARING BALL Price: Call Us |
| 38 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 38 |
780128 |
WASHER THRUST Price: Call Us |
| 39 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 39 |
780050 |
BEARING BALL Price: Call Us |
| 40 |
792128 |
WASHER FLAT Price: Call Us |
| 42 |
788042 |
OIL SEAL 3/4 Price: Call Us |
| 43 |
780166 |
WASHER CUPPED Price: Call Us |
| 44 |
786131 |
BEARING CAP Price: Call Us |
| 45 |
780165 |
WASHER Price: Call Us |
| 47 |
772098A |
COVER TRANSAXLE Price: Call Us |
| 48 |
784342 |
ROD AND FORK ASSY SHIFT Price: Call Us |
| 49 |
776274 |
SHAFT INPUT Price: Call Us |
| 50 |
776313 |
SHAFT BRAKE Price: Call Us |
| 51 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 52 |
790006 |
PAD BRAKE Price: Call Us |
| 53 |
786026 |
PIN DOWEL Price: Call Us |
| 54 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 55 |
792076 |
WASHER, FLAT Price: Call Us |
| 56 |
790047 |
LEVER BRAKE Price: Call Us |
| 57 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 57A |
792085 |
SCREW FLNG HEX 1/4-20 X 2-1/4 Price: Call Us |
| 58 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 59 |
778197 |
PINION, 10T Price: Call Us |
| 59A |
778198 |
GEAR BEVEL Price: Call Us |
| 60 |
786019 |
PIN DRIVE Price: Call Us |
| 61 |
786027 |
BLOCK DRIVE Price: Call Us |
| 62 |
774833 |
CARRIER DIFF THREADED HOLES Price: Call Us |
| 62A |
774834 |
CARRIER DIFF Price: Call Us |
| 63 |
778248 |
GEAR, RING, 31T Price: Call Us |
| 64 |
780107 |
WASHER Price: Call Us |
| 65 |
780042 |
WASHER THRUST Price: Call Us |
| 66 |
792018 |
RING STRAP Price: Call Us |
| 67 |
792020 |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 68 |
792006 |
WASHER LOCK 1/4 Price: Call Us |
| 69 |
774832 |
AXLE, 12-5/16" LONG Price: Call Us |
| 70 |
774831 |
AXLE, 16-3/16" LONG Price: Call Us |
| 71 |
792074 |
PLUG, THRDED, 9/16-18 Price: Call Us |
| 72 |
786067 |
SPACER Price: Call Us |
| 73 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 74 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 74A |
792145 |
PUSHNUT Price: Call Us |
| 76 |
780153 |
WASHER Price: Call Us |
| 77 |
786144 |
SLEEVE Price: Call Us |
| 78 |
780150 |
BEARING NEEDLE Price: Call Us |
| 79 |
780152 |
BEARING NEEDLE Price: Call Us |
| 81 |
786142 |
SLEEVE STEPPED Price: Call Us |
| 82 |
788071 |
RING SQ CUT Price: Call Us |
| 83 |
780168 |
BEARING NEEDLE CAPPED Price: Call Us |
| 84 |
786143 |
SLEEVE STEPPED Price: Call Us |
| 85 |
780151 |
BEARING NEEDLE CAPPED Price: Call Us |
| 86 |
786145 |
SLEEVE STEPPED Price: Call Us |
| 87 |
788070 |
RING SQ CUT Price: Call Us |
| 88 |
780031 |
BEARING NEEDLE Price: Call Us |
