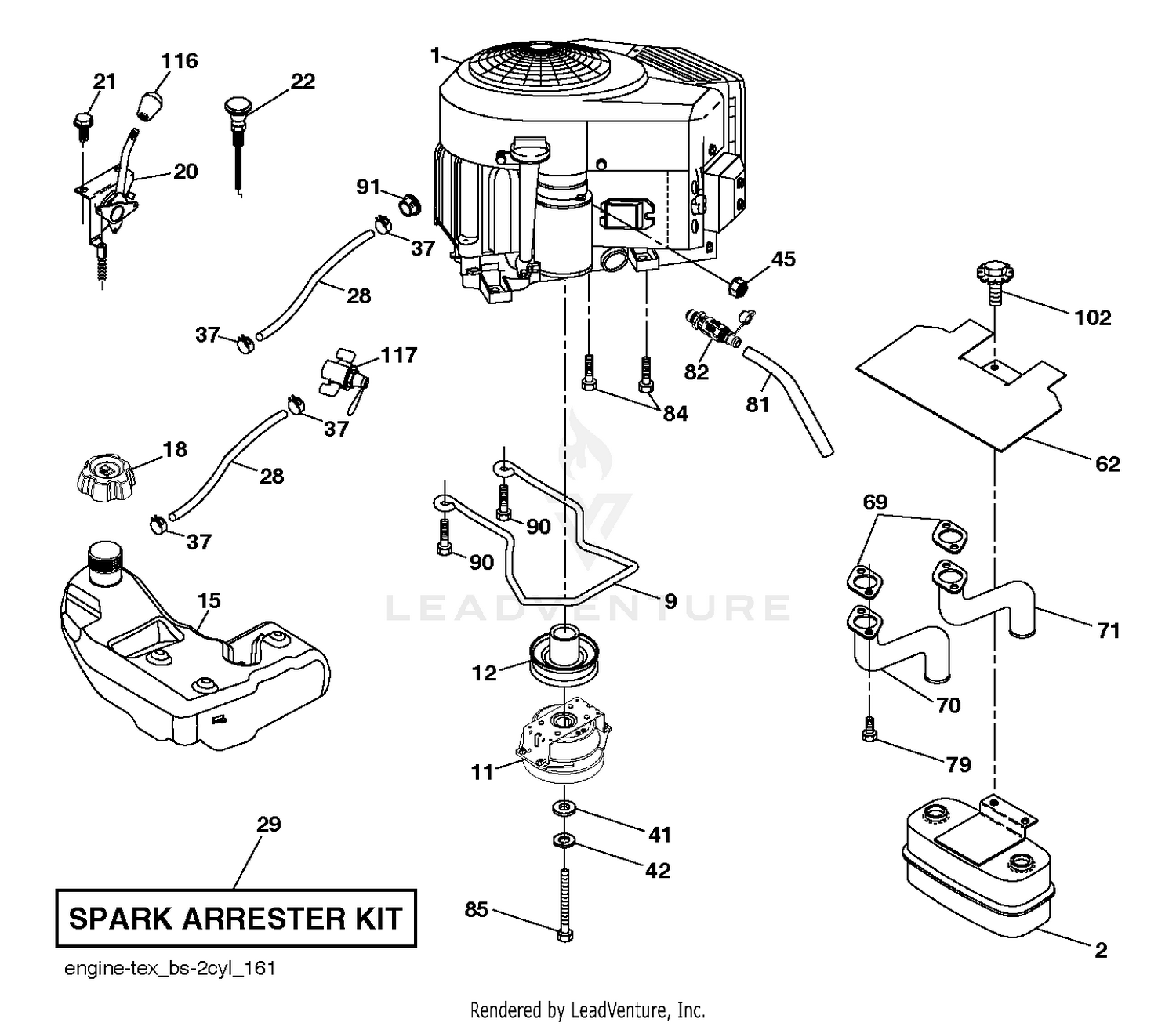

| Ref | Part Number | Description |
|---|
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 2 |
75-1420-01 |
DISCONTINUED Price: Call Us |
| 3 |
106-5950 |
RH FENDER ASM This part replaces 93-7579. Price: $661.25 |
| 4 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 5 |
93-6689 |
DECAL-NO RIDERS Price: $9.75 |
| 6 |
106-5951 |
LH FENDER ASM This part replaces 75-3860. Price: $625.15 |
| 7 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 8 |
107-1839 |
KIT-FRAME ASM, RM5000 This part replaces 100-3717. Price: $3,818.37 |
| 9 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
98-4572 |
BRACKET-CLAMP, HOSE Price: $33.62 |
| 12 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 14 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 15 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 15 |
532422804 |
TANK FUEL Price: $149.99 |
| 15 |
75-6840 |
KNOB-KNURLED Price: $16.22 |
| 16 |
75-0650 |
TREAD-FOOTREST, LH Price: $30.34 |
| 17 |
75-0640 |
TREAD-FOOTREST, RH Price: $30.47 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 Price: $14.99 |
| 19 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 20 |
93-3626 |
BRACKET-HOSE Price: $23.80 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
75-0620 |
TREAD-FOOT, LH Price: $24.33 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 22 |
75-0610 |
TREAD-FOOT, RH Price: $21.68 |
| 23 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 24 |
32128-33 |
NUT-HF Price: $0.25 |
| 25 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 26 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 27 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 28 |
587044661 |
HOSE.1/4".FUEL.LINE.61".LENGTH Price: $8.99 |
| 28 |
93-6698 |
DISCONTINUED Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
75-6260-03 |
COVER-BOX, TOOL Price: $59.24 |
| 30 |
95-0832 |
DECAL-SERVICE Price: $70.38 |
| 31 |
93-8051 |
DISCONTINUED Price: Call Us |
| 32 |
88-6700 |
DECAL-ANSI Price: $2.26 |
| 33 |
75-5810-03 |
BOX-TOOL ASM Price: $234.90 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532192442 |
GASKET.MUFF 806237 NOW 806425 Price: $12.99 |
| 70 |
532191548 |
EXHAUST.TUBE.MUFFLR.LH.VANG Price: $69.99 |
| 71 |
532191549 |
EXHAUST.TUBE.MUFFLR.RH.VANG Price: $39.99 |
| 79 |
532192443 |
SCREW.TUBE.MUFFLER.VANGUARD Price: $3.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
