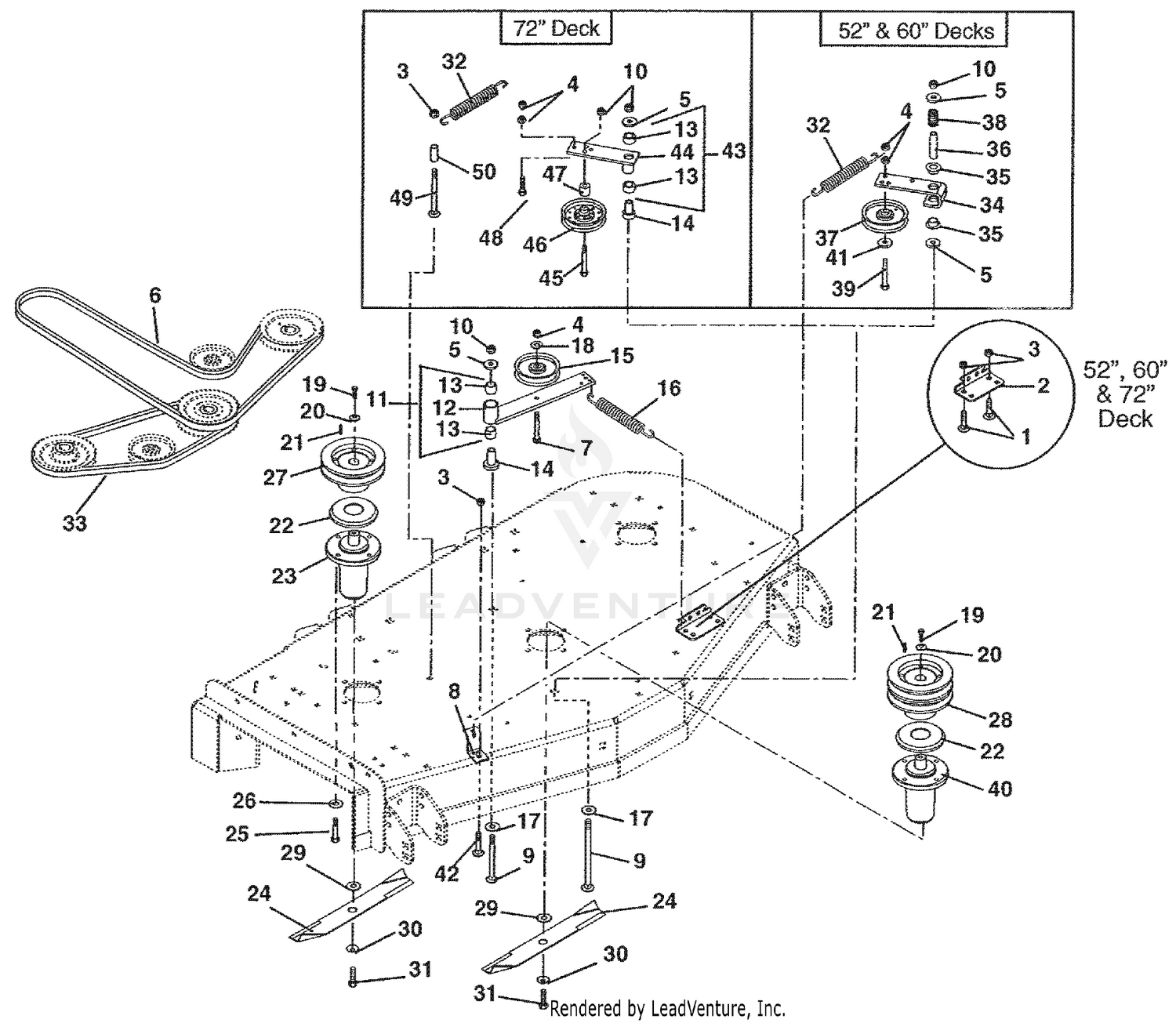

| Ref | Part Number | Description |
|---|
| 1 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 2 |
09248353 |
BRACKET, SPRING Price: $31.95 |
| 4 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 7 |
06200316 |
BLT, RHSN .38-16X2.75 G5 ZCC This part replaces 06225400. Price: $3.95 |
| 8 |
09245353 |
ANCHOR, SPRING (RED) Price: $36.95 |
| 9 |
06200317 |
BLT, RHSN .50-13X3.50 G5 ZCC This part replaces 06225000. Price: $5.45 |
| 12 |
09286451 |
WMT - IDLER PIVOT ARM Price: $134.95 |
| 13 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 16 |
08300513 |
SPRING, EXTENSION 1.0 X 6.65 This part replaces 08300002. Price: $30.95 |
| 17 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 18 |
06401139 |
WSHR- FLT .375X1.125X.065 ZCC This part replaces 446470. Price: $2.45 |
| 19 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05974500. Price: $1.95 |
| 20 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 00597000. Price: $3.95 |
| 21 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 22 |
09238200 |
SLINGER, DUST Price: $15.45 |
| 23 |
59114000 |
ASM, ALUMINUM SPINDLE (SHORT) This part replaces 59201000. Price: $239.95 |
| 25 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 26 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 29 |
06400829 |
WSHR-FLT .640X1.75X.250 This part replaces 06435200. Price: $3.95 |
| 30 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 31 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 32 |
08300512 |
SPRING, EXTENSION This part replaces 08336100. Price: $15.45 |
| 34 |
08905900 |
ARM,IDLER PIVOT This part replaces 034120. Price: $74.45 |
| 35 |
05518400 |
BSHG-FLG .762X1.0X.580X1.48 NY This part replaces 010174. Price: $4.45 |
| 36 |
08820500 |
SPACER .560X.750X2.437 ST This part replaces 034119. Price: $16.95 |
| 37 |
07327600 |
V-IDLER, 4.00X.38 Price: $34.95 |
| 38 |
08329100 |
SG-COMP .085X.80X1.00 WLD36 This part replaces 020444. Price: $12.45 |
| 39 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 41 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 42 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
