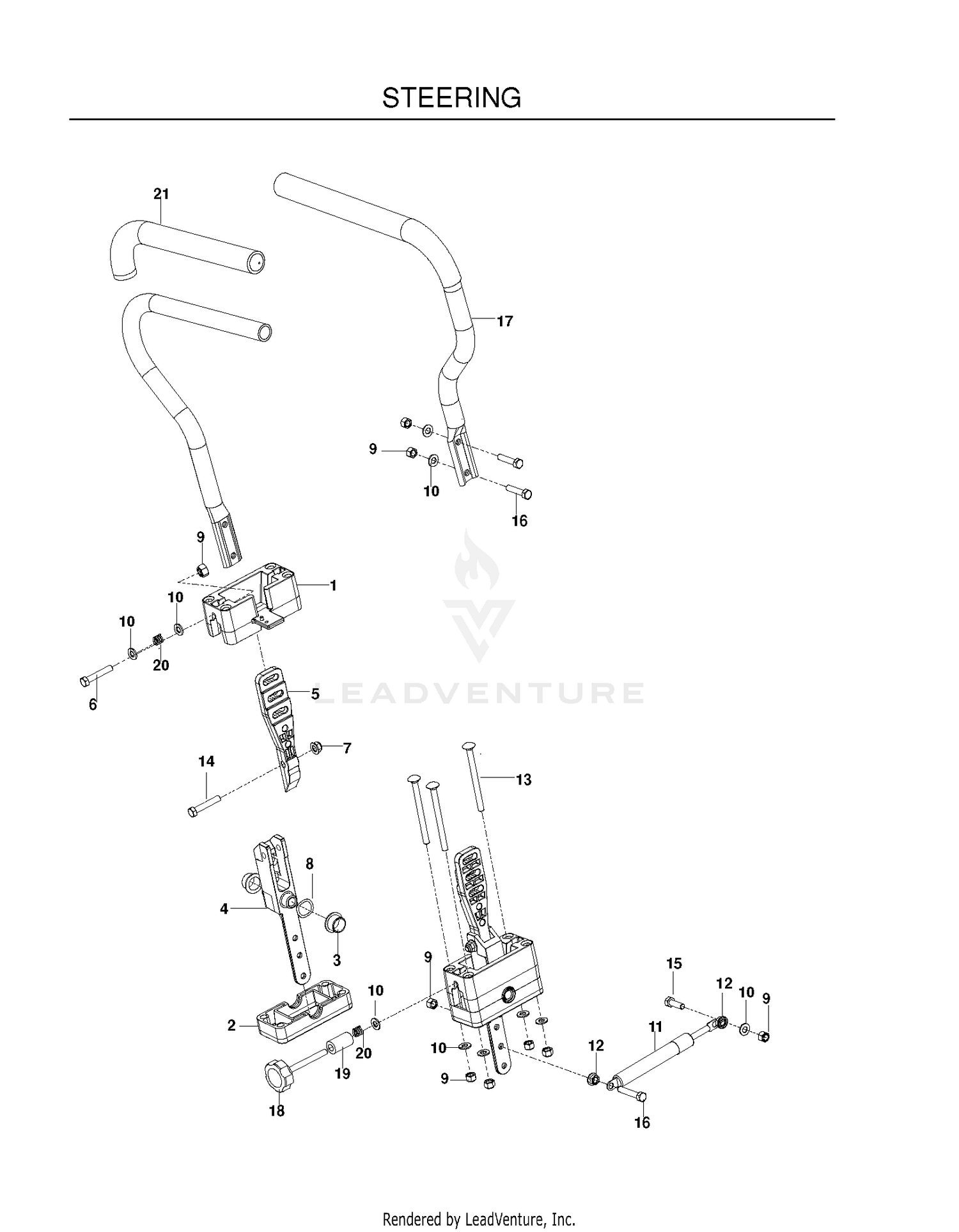

| Ref | Part Number | Description |
|---|
| 1 |
42-9310 |
BOLT Price: $1.29 |
| 1 |
539131517 |
BLOCK, UPPER Price: $24.99 |
| 2 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 2 |
539131519 |
BLOCK, LOWER Price: $12.99 |
| 3 |
42-9150 |
INLET PIPE MM 408564 Price: $88.20 |
| 3 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 4 |
42-7510 |
DISCONTINUED Price: Call Us |
| 4 |
522452901 |
PIVOT.SECTION.DRIVE.CONTROL Price: $17.99 |
| 5 |
42-9160 |
GASKET MM 408566 Price: $6.47 |
| 5 |
576452801 |
MOUNT.HANDLE.CONTROL This part replaces 539131521. Price: $29.99 |
| 6 |
42-9120 |
MANIFOLD MM 408541 Price: $261.68 |
| 6 |
596565201 |
Screws This part replaces 539108395. Price: $1.99 |
| 7 |
42-9140 |
GASKET Price: $29.21 |
| 7 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 8 |
539133007 |
WASHER, .825 X 1.087, WAVE Price: $2.99 |
| 8 |
72-4290 |
CYLINDER HEAD Price: $2,545.36 |
| 9 |
42-7550 |
GASKET Price: $12.51 |
| 9 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 10 |
43-1790 |
FITTING Price: $119.75 |
| 10 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 11 |
42-7740 |
HOSE NIPPLE Price: $37.46 |
| 11 |
539102720 |
DAMPENER Price: $39.99 |
| 12 |
43-3140 |
DISCONTINUED Price: Call Us |
| 12 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 13 |
43-3130 |
WATER HOSE Price: $83.64 |
| 13 |
510422601 |
RHSNB 5/16-18 X 4 GR 5 ZD Price: $2.99 |
| 14 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 14 |
93-3524 |
THERMOSTAT This part replaces 43-1780. Price: $88.41 |
| 15 |
42-7540 |
DISCONTINUED Price: Call Us |
| 15 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 16 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 16 |
93-3685 |
PIPE - AIR BREATHER Price: $25.38 |
| 17 |
579036901 |
LEVER.STEERING.ASM.(W/GRIP) This part replaces 522524303. Price: $39.99 |
| 18 |
42-7420 |
CAP-FILLER Price: $66.12 |
| 18 |
521982601 |
KNOB, 3" Price: $5.99 |
| 19 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 19 |
539103543 |
SPACER Price: $5.99 |
| 20 |
42-9800 |
WASHER Price: $4.67 |
| 20 |
539102845 |
SPRING Price: $2.99 |
| 21 |
42-7490 |
OIL SEAL MD 000523 Price: $6.20 |
| 22 |
42-7530 |
Label-Engine No. Price: Call Us |
| 23 |
42-7500 |
COVER ASM MM 408491 Price: $286.42 |
| 24 |
42-7520 |
COVER GASKET Price: $39.88 |
| 25 |
93-3180 |
BOLT - CYL HEAD (10X90) Price: $14.71 |
| 26 |
42-9180 |
DISCONTINUED Price: Call Us |
| 27 |
42-7460 |
VALVE GUIDE Price: $94.84 |
| 28 |
42-7480 |
GLOW PLUG (12V) Price: $44.35 |
| 29 |
42-7440 |
DISCONTINUED Price: Call Us |
| 30 |
107-4803 |
CAP-SEALING This part replaces 42-7080. Price: $14.47 |
| 31 |
42-9320 |
CYL HD BOLT Price: $20.24 |
| 32 |
42-9790 |
CYL HD BOLT WASHER Price: $8.24 |
| 33 |
42-9390 |
DISCONTINUED Price: Call Us |
| 34 |
44-8070 |
NOZZLE/HOLDER ASM Price: $448.12 |
| 35 |
42-8120 |
HLDR GASKET K 6515430 Price: $4.85 |
| 36 |
42-7090 |
SEALING CAP Price: $27.82 |
| 37 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 38 |
42-9570 |
STUD Price: $2.57 |
| 39 |
42-9170 |
GASKET Price: $41.86 |
| 41 |
42-9110 |
GASKET Price: $29.21 |
| 42 |
43-1870 |
MANIFOLD Price: $728.35 |
| 43 |
33114-030 |
SCREW-HH This part replaces 42-9520. Price: $0.50 |
| 44 |
42-9240 |
BOLT/WASHER Price: $12.27 |
| 46 |
43-1770 |
DISCONTINUED Price: Call Us |
| 47 |
112-1351 |
STARTER ASM This part replaces 46-7610. Price: $624.05 |
| 48 |
43-0090 |
SCREW-HH Price: $8.05 |
| 49 |
42-9260 |
DRAIN PLUG Price: $29.62 |
| 50 |
42-7290 |
GASKET-PLUG Price: $7.56 |
| 51 |
33114-016 |
SCREW-HH This part replaces 42-9230. Price: $0.27 |
| 52 |
42-7280 |
OIL PAN ASM Price: $355.03 |
| 53 |
42-7300 |
PAN GASKET Price: $69.07 |
| 54 |
42-9660 |
WASHER Price: $2.50 |
| 55 |
33114-045 |
SCREW-HH This part replaces 42-9500. Price: $0.68 |
| 56 |
42-9070 |
PULLEY K9674051 F/W Price: $138.23 |
| 57 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 58 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 59 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 60 |
42-9080 |
WATER PUMP Price: $698.34 |
| 61 |
42-9090 |
GASKET Price: $12.51 |
| 62 |
48-2020 |
DISCONTINUED Price: Call Us |
| 63 |
42-7470 |
CYL GASKET Price: $288.57 |
| 64 |
63-7790 |
SCREW-CAP This part replaces 42-9300. Price: $1.46 |
| 65 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 66 |
33114-040 |
SCREW-HH This part replaces 42-9530. Price: $1.22 |
| 67 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 68 |
93-3656 |
GASKET Price: $14.76 |
