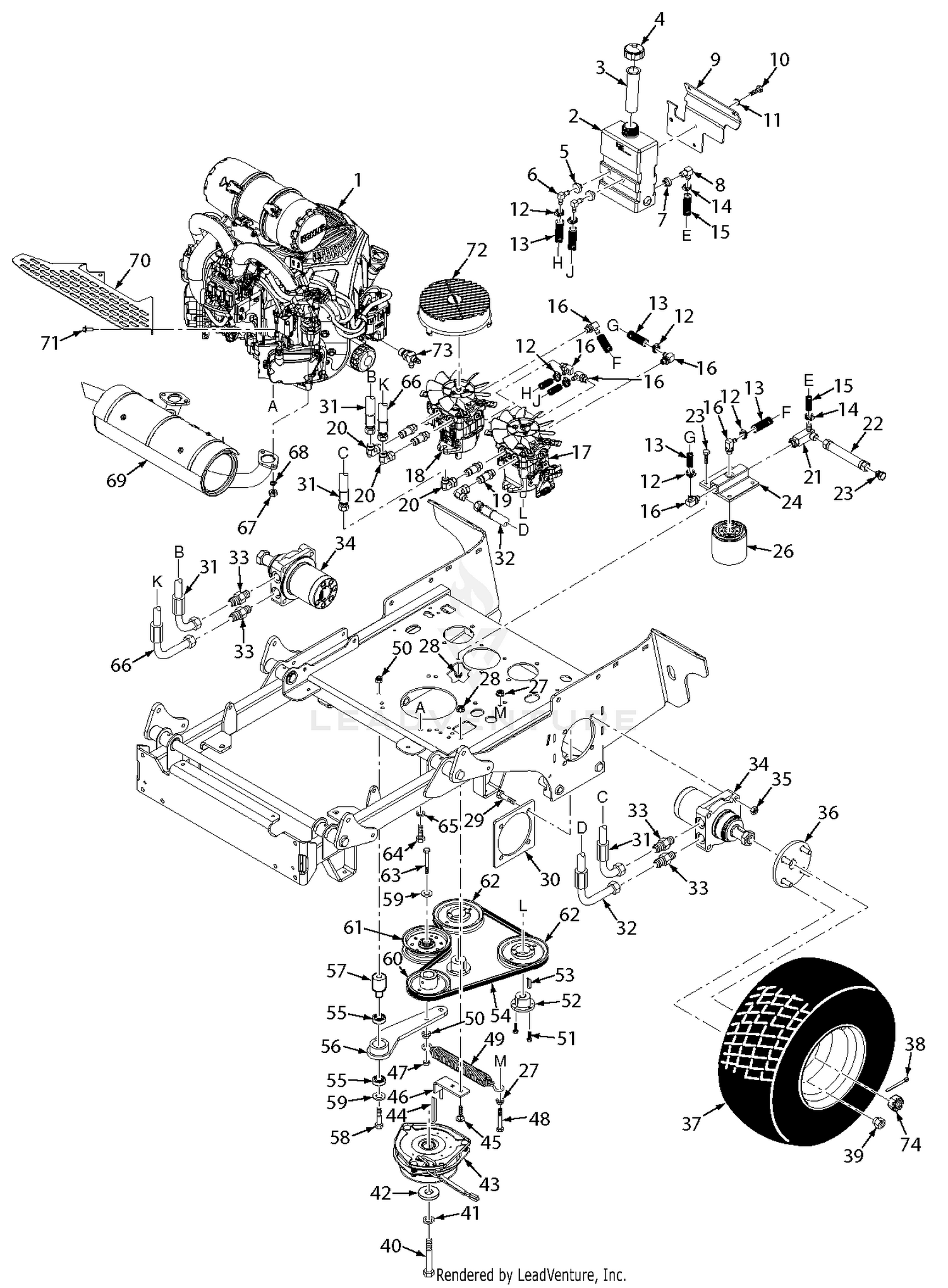

| Ref | Part Number | Description |
|---|
| 3 |
481057 |
Insert, Filler Neck Price: Call Us |
| 4 |
481164 |
Cap, Hydro Tank Price: Call Us |
| 5 |
482571 |
Bushing, .56 Viton Price: Call Us |
| 6 |
482572 |
Fitting, 90 Degree x .38 Hose Price: Call Us |
| 7 |
482573 |
Bushing, .78 Viton Price: Call Us |
| 8 |
482574 |
Fitting, 90 Degree x .50 Hose Price: Call Us |
| 9 |
427280 |
Bracket, Hydro Tank Mounting Price: Call Us |
| 10 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 11 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 12 |
48136-13 |
Clamp, Hose Price: Call Us |
| 13 |
48811 |
Hose, 3/8" Pushlock (order by inch) Price: Call Us |
| 14 |
48136-05 |
Clamp, Hose Price: Call Us |
| 15 |
48351 |
Hose, 1/2" Pushlock (order by inch) Price: Call Us |
| 16 |
482266-01 |
Elbow, 90 Degree - O-Ring Price: Call Us |
| 17 |
485838 |
Pump, LH - SVRII Price: Call Us |
| 18 |
485839 |
Pump, RH - SVRII Price: Call Us |
| 19 |
485830 |
Union, O-Ring to JIC Price: Call Us |
| 20 |
481203-02 |
Elbow, JIC Swivel Price: Call Us |
| 21 |
485847 |
Tee, 3/4 O-Ring Price: Call Us |
| 23 |
48771-02 |
Plug, JIC 3/4-16 UNF Price: Call Us |
| 24 |
482417 |
Filter Head Price: Call Us |
| 25 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 26 |
48462-01 |
Filter Price: Call Us |
| 27 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 28 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 29 |
04001-52 |
Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us |
| 30 |
423279 |
Plate, Motor Backing Price: Call Us |
| 31 |
485792 |
Hose Assy., 27-1/2" Price: Call Us |
| 32 |
484509 |
Hose Assy., 15-1/4" Price: Call Us |
| 33 |
48572-02 |
Tube, Union 1/2 x 5/8 Price: Call Us |
| 34 |
485788 |
Wheel Motor, SVRII Price: Call Us |
| 35 |
04021-19 |
Nut, Center Lock 1/2-13 Price: Call Us |
| 36 |
04008-01 |
Serrated Bolt, 1/2-20 x 1.563 Price: Call Us |
| 36 |
462999 |
Wheel Hub Assy., SVRII Price: Call Us |
| 37 |
481852 |
Tire 24 x 12-12 (61" Deck) Price: Call Us |
| 37 |
484104 |
Tire, 24 x 9.5 - 12 (4-Ply) Price: Call Us |
| 37 |
485851 |
Wheel Assy., 24 x 9.5 - 12 (4-Ply) (48 / 52) Price: Call Us |
| 37 |
485852 |
Rim w/Stem Price: Call Us |
| 37 |
485933 |
Wheel Assy., 24 x 12 - 12 (4-Ply) (61) Price: Call Us |
| 37 |
485934 |
Rim w/Stem Price: Call Us |
| 38 |
04061-06 |
Pin, Cotter 9/64 x 1" Price: Call Us |
| 39 |
04028-02 |
Wheel Nut Price: Call Us |
| 40 |
04102-03 |
Bolt, Hex Head 7/16-20 x 2-1/4" w/ Patch Price: Call Us |
| 41 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 42 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 Price: Call Us |
| 43 |
462166 |
Clutch w/Tag GT2.5-FE02 (48 / 52) Price: Call Us |
| 43 |
462339 |
Clutch w/Tag GT3.5-FE05 (61) Price: Call Us |
| 44 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 45 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 46 |
452923 |
ANTI-ROTATION WLMT, SVRII This part replaces 452162. Price: Call Us |
| 47 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 48 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 49 |
483526 |
Spring, Transmission Idler Price: Call Us |
| 50 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 52 |
482085 |
Tapered Hub, 15mm Bore Price: Call Us |
| 53 |
04063-14 |
Key, 5 x 5 x 25mm Price: Call Us |
| 54 |
483520 |
Belt, Transmission Price: Call Us |
| 55 |
48224 |
Bearing Price: Call Us |
| 57 |
43683 |
Pivot, Idler Price: Call Us |
| 58 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 59 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 60 |
483802 |
Pulley, 4.75" OD - 1.125 Bore Price: Call Us |
| 61 |
483213 |
Pulley, 4-1/2" Idler Price: Call Us |
| 62 |
482649 |
Pulley, 5.45" OD - Tapered Bore Price: Call Us |
| 63 |
04001-161 |
Bolt, Hex Head 3/8-16 x 2-3/4" Full Thread Price: Call Us |
| 64 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Kohler x1) Price: Call Us |
| 64 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 64 |
04011-07 |
Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI) Price: Call Us |
| 64 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Kohler x1) Price: Call Us |
| 64 |
04031-03 |
Lockwasher, 5/16" Ext. Tooth (Kohler x1) Price: Call Us |
| 65 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 66 |
485791 |
Hose Assy., 30" Price: Call Us |
| 67 |
04025-04 |
Nut, N8-1.25 (Kawasaki) Price: Call Us |
| 67 |
04130-01 |
Lock Nut, M8-1.25 -8H (Kohler) Price: Call Us |
| 68 |
04033-01 |
Lockwasher, M8 Spring (Kawasaki) Price: Call Us |
| 69 |
485799 |
Muffler, Kohler CV-EFI - SVRII Price: Call Us |
| 69 |
485800 |
Muffler, Kawasaki FX - SVRII Price: Call Us |
| 69 |
485887 |
Muffler, Kohler, 29 EFI - SVRII Price: Call Us |
| 69 |
485896 |
Muffler, Kawasaki FX801 - SVRII Price: Call Us |
| 70 |
427380 |
Heatshield, Muffler - Kawasaki FX - SVRII Price: Call Us |
| 70 |
427432 |
Heatshield, Muffler - Kohler 29 EFI - SVRII Price: Call Us |
| 70 |
427437 |
Heatshield, Muffler - Kawasaki FX801 - SVRII Price: Call Us |
| 71 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" - 23HP FX Price: Call Us |
| 71 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 71 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 71 |
04119-02 |
Bolt, M8-1.25 x 20 Flanged HD Price: Call Us |
| 72 |
485564 |
Fan Cover, Pump Price: Call Us |
| 73 |
482510 |
OIl Drain, 3.3" (Kohler 25HP-EFI) Price: Call Us |
| 73 |
484089 |
Oil Drain, M20 Thread (Kawasaki) Price: Call Us |
