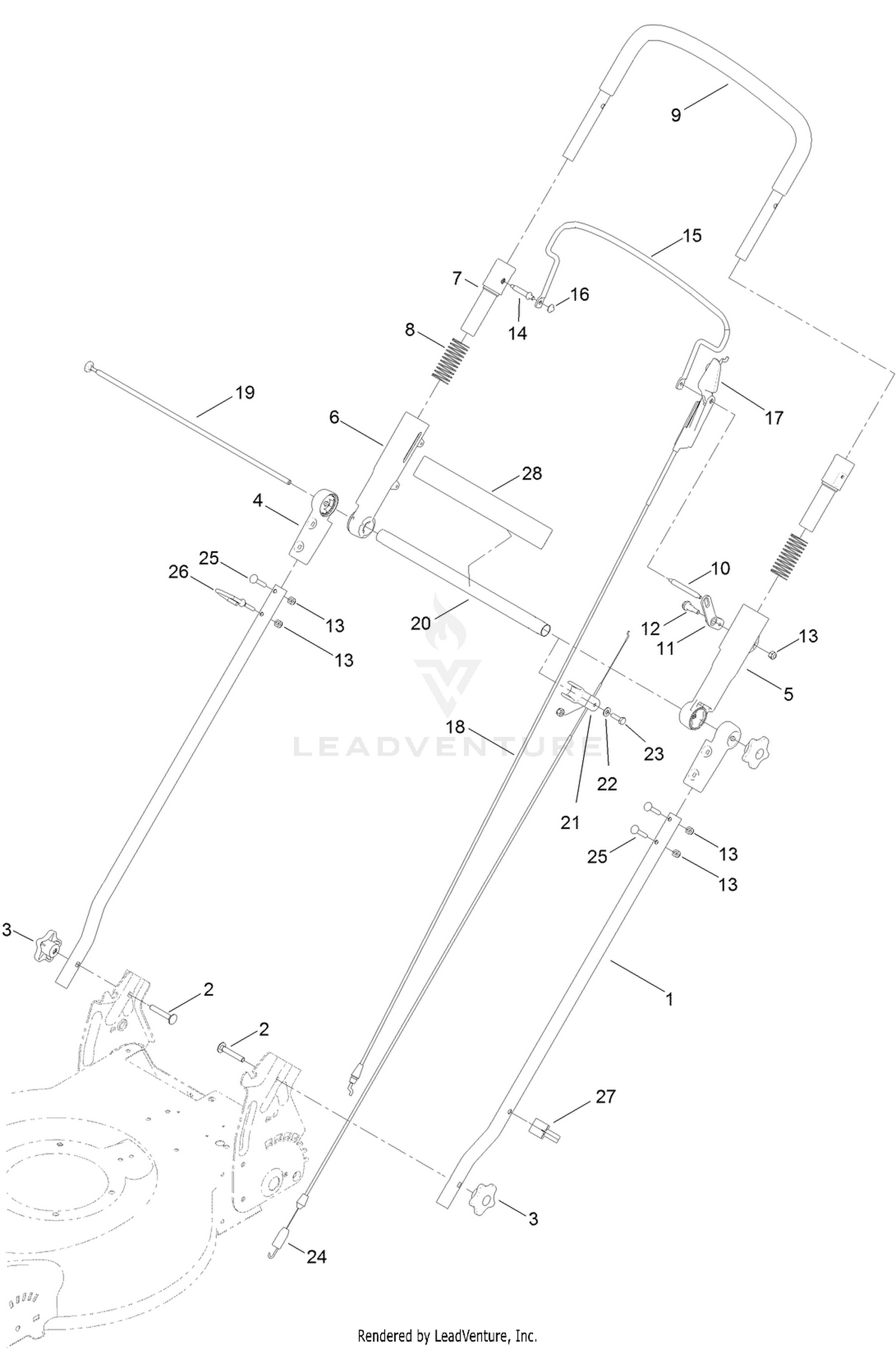

Handle Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-2334-03 | HANDLE-LOWER Price: $21.33 |
| 2 | 3230-6 | BOLT-CARR Price: $0.59 |
| 3 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 4 | 107-3865 | MOUNT-HANDLE, LOWER Price: $8.10 |
| 5 | 112-1544 | SLEEVE-OUTER, LH Price: $10.73 |
| 6 | 112-1545 | SLEEVE-OUTER, RH Price: $10.73 |
| 7 | 112-8754 | SLEEVE-INNER Price: $4.34 |
| 8 | 107-3869 | SPRING-COMPRESSION Price: $0.88 |
| 9 | 108-0974 | UPPER HANDLE ASM Price: $55.20 |
| 10 | 108-1008 | PIN-BAIL, LH Price: $4.24 |
| 11 | 107-3893 | LEVER-TRACTION Price: $2.43 |
| 12 | 104-0858 | BOLT-SHOULDER Price: $4.69 |
| 13 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 14 | 108-0959 | PIN-HANDLE Price: $4.24 |
| 15 | 110-1819-03 | BAIL-BRAKE Price: $16.78 |
| 16 | 108-9378 | RETAINER-PUSH ON Price: $0.88 |
| 17 | 112-8764 | STOP-PIVOT Price: $3.06 |
| 18 | 121-5820 | CABLE-BRAKE Price: $15.80 |
| 19 | 107-3871 | ROD-THREADED Price: $12.52 |
| 20 | 107-3867-03 | TUBE-CROSS Price: $16.38 |
| 21 | 112-8801 | CLAMP-CABLE Price: $7.35 |
| 22 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 23 | 321-5 | SCREW-HH Price: $0.22 |
| 24 | 121-2338 | CABLE-TRACTION Price: $20.53 |
| 25 | 108-0988 | SCREW-CARR Price: $0.61 |
| 26 | 107-3908 | GUIDE-ROPE, UPPER Price: $2.72 |
| 27 | 114-7988 | GUIDE-CABLE Price: $1.84 |
