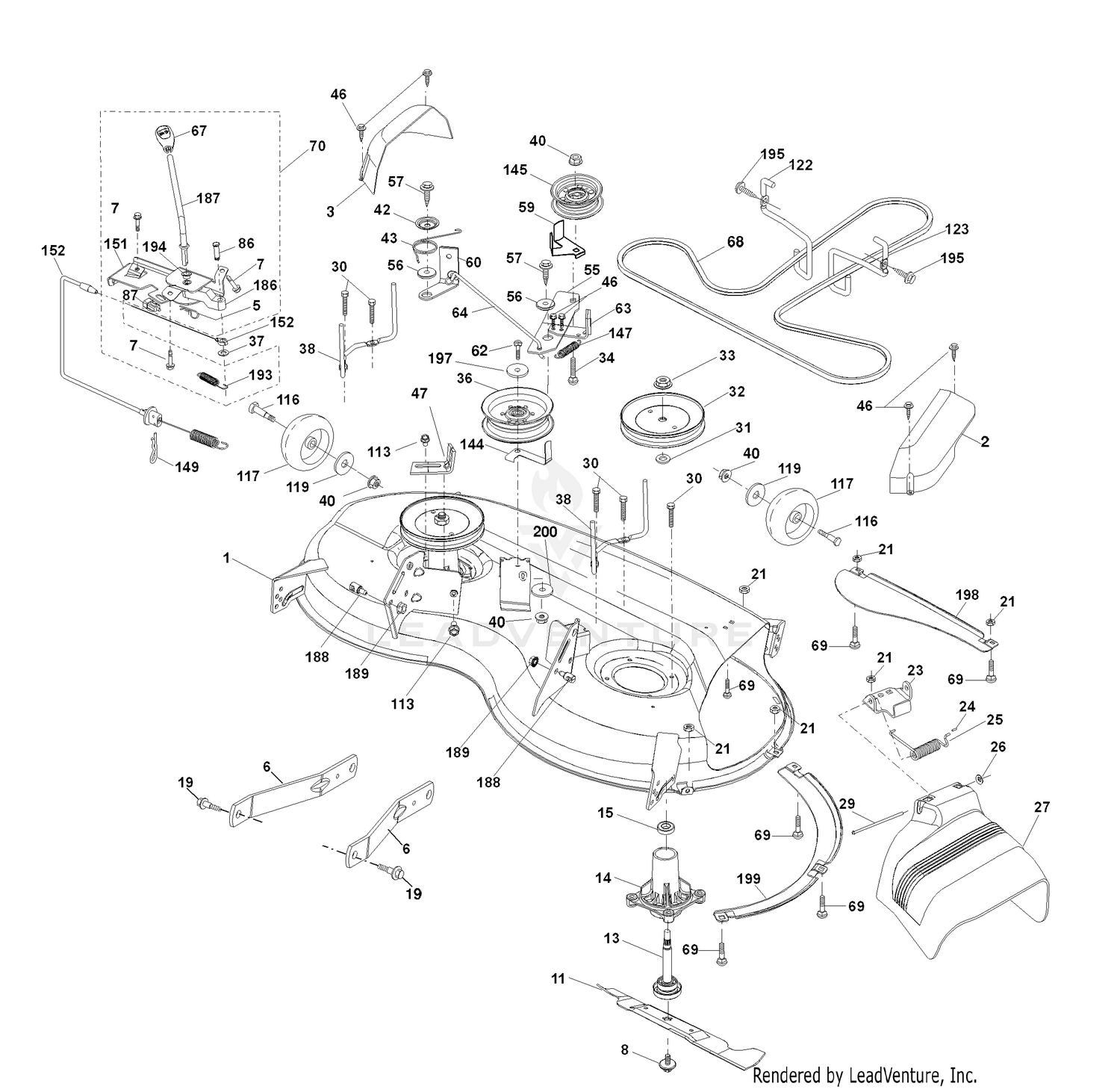

| Ref | Part Number | Description |
|---|
| 1 |
547745901 |
KIT.SVC.DECK.WELD.46.TEX_428 This part replaces 532410863. Price: $449.99 |
| 1 |
778197 |
Pinion-Bevel Price: Call Us |
| 2 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 2 |
778198 |
Gear-Bevel Price: Call Us |
| 3 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 3 |
786019 |
Pin-Drive Price: Call Us |
| 4 |
786027 |
Biock-Drive Price: Call Us |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
774028A |
Carrier-Differential Price: Call Us |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
774029A |
Carrier-Differential Price: Call Us |
| 7 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 7 |
778033A |
Gear-Ring Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
774607 |
Axle 16-5/8" Price: Call Us |
| 9 |
774608 |
Axle-21-57/64" Price: Call Us |
| 10 |
780107 |
Washer Price: Call Us |
| 11 |
780042 |
Washer Price: Call Us |
| 12 |
792018 |
Ring-Snap Price: Call Us |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
792020 |
Screw-Hex Hd. Price: Call Us |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
792006 |
Lockwasher Price: Call Us |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
770080 |
Case Assembly (Incl. Ref. #16 17) Price: Call Us |
| 16 |
780013 |
Bearing Price: Call Us |
| 17 |
780088 |
Bearing-Needle Price: Call Us |
| 18 |
772085 |
Cover Assembly (Incl. Ref. #16 19) Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
780089 |
Bearing Needle Price: Call Us |
| 20 |
782041A |
Housing Bushing Assembly (6-5/8" long) (Incl. Ref. #21) Price: Call Us |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
780054 |
Bushing Price: Call Us |
| 22 |
782042A |
Housing Bushing Assembly (8-5/8" long) (Incl. Ref. #21) Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
776245 |
Shaft-Brake Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
79-2120 |
Screw-Hex. Hd. Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
778036 |
Gear-Output Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
778037 |
Gear-Spur Price: Call Us |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 27 |
776244 |
Shaft-Output Price: Call Us |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
780001 |
Washer Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
780090 |
Washer Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
788008 |
Seal-Oil Price: Call Us |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P Price: $12.99 |
| 32 |
786026 |
Dowel Pin Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
792046 |
Screw-Thread Forming Price: Call Us |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 34 |
792010 |
Plug Price: Call Us |
| 35 |
786112 |
Plate-Adapter Price: Call Us |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 36 |
790027 |
Disc-Brake Price: Call Us |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
790006 |
Brake Pad Price: Call Us |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532199189. Price: $6.99 |
| 38 |
790007 |
Brake Pad Plate Price: Call Us |
| 39 |
790025 |
Nozzle-Carburetor Price: Call Us |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 40 |
790010 |
Lever-Brake Price: Call Us |
| 41 |
792076 |
Washer Price: Call Us |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 42 |
792075 |
Locknut Price: Call Us |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 43 |
792073 |
Ring Set (.020 O S) Price: Call Us |
| 43A |
792085 |
Screw-Hex. Flange Price: Call Us |
| 44 |
786086 |
Bracket Price: Call Us |
| 45 |
786066 |
Spacer Price: Call Us |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
778194 |
Gear-Spur 22T Price: Call Us |
| 47 |
510334 |
Gasket Eliminator Price: Call Us |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" This part replaces 532400132. Price: $14.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC Price: $14.99 |
| 64 |
532405139 |
LINKAGE.ASM.BRAKE.CLEAR.ZINC Price: $14.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX Price: $71.99 |
| 86 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197798. Price: $71.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 151 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532406560. Price: $71.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING This part replaces 532408319. Price: $32.99 |
| 186 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197799. Price: $71.99 |
| 187 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532406562. Price: $71.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 193 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197801. Price: $71.99 |
| 194 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197797. Price: $71.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
