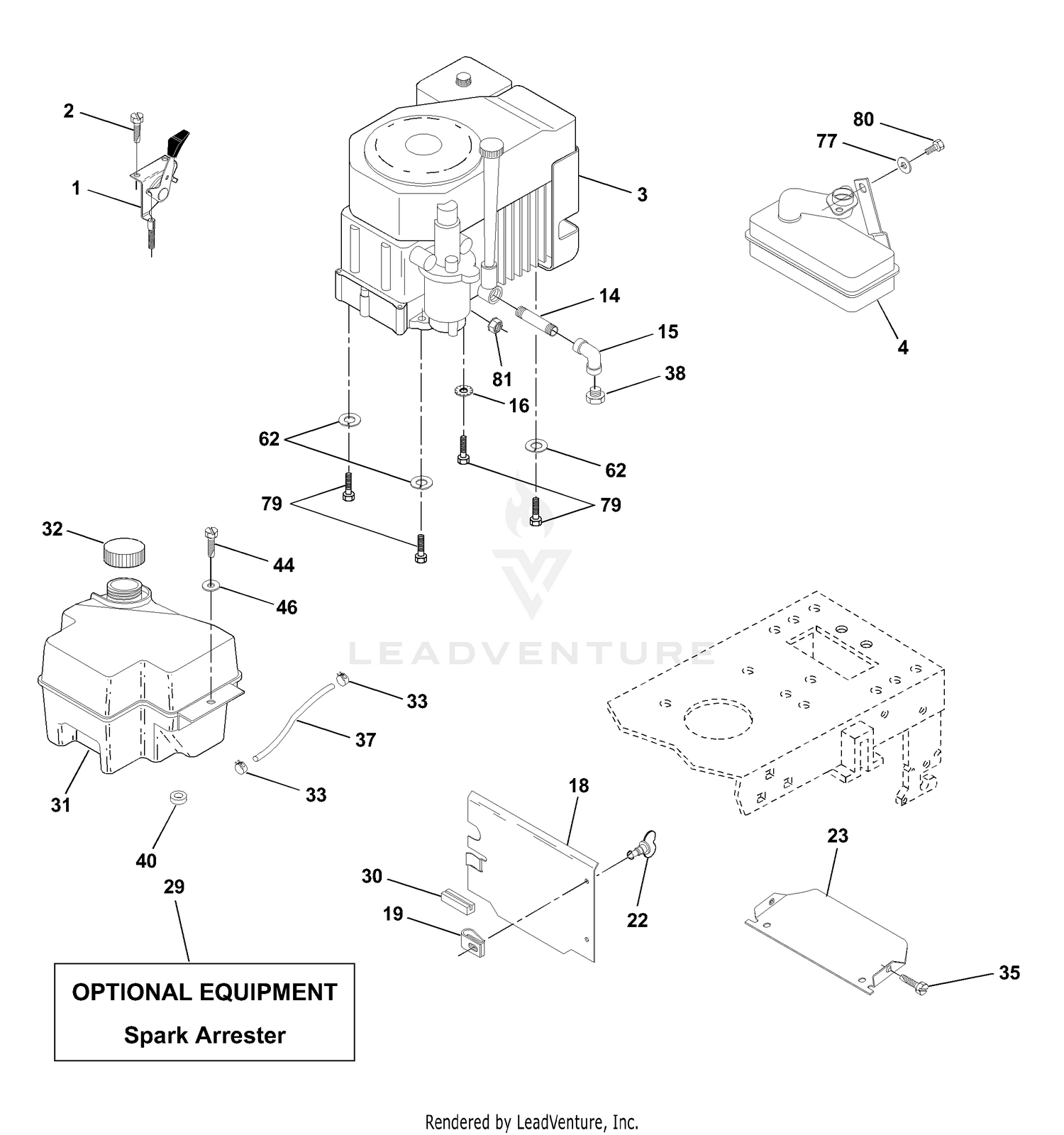

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT This part replaces 532141296. Price: $27.99 |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT This part replaces 532137350. Price: $99.99 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
98-9592 |
SCREW Price: $0.70 |
| 8 |
98-9541 |
COVER-PUMP, OIL Price: $222.71 |
| 9 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 10 |
98-9372 |
O-RING Price: $1.66 |
| 11 |
98-7547 |
O-RING Price: $0.92 |
| 12 |
98-9544 |
SPRING Price: $0.94 |
| 13 |
98-9380 |
BALL Price: $0.84 |
| 14 |
813280328 |
Nipple Pipe 3/8 Npt X 3-1/2 Price: $4.99 |
| 14 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 18 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 18 |
532136718 |
HEAT SHIELD Price: $3.79 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 19 |
98-9356 |
BOLT Price: $2.06 |
| 20 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 21 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 22 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 22 |
532149793 |
STUD 1/4 TURN Price: $2.99 |
| 23 |
532150554 |
Shield Heat Browning LT/YT Price: Call Us |
| 23 |
98-9437 |
BOLT Price: $1.05 |
| 24 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 25 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 26 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
532127057 |
STRIP Price: $2.38 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532140280. Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 79 |
740108025 |
This part replaces 532125398. Price: $2.38 |
| 80 |
874760508 |
Bolt Hex Hd 5/16-18 UNC x 1/2 Price: $3.99 |
