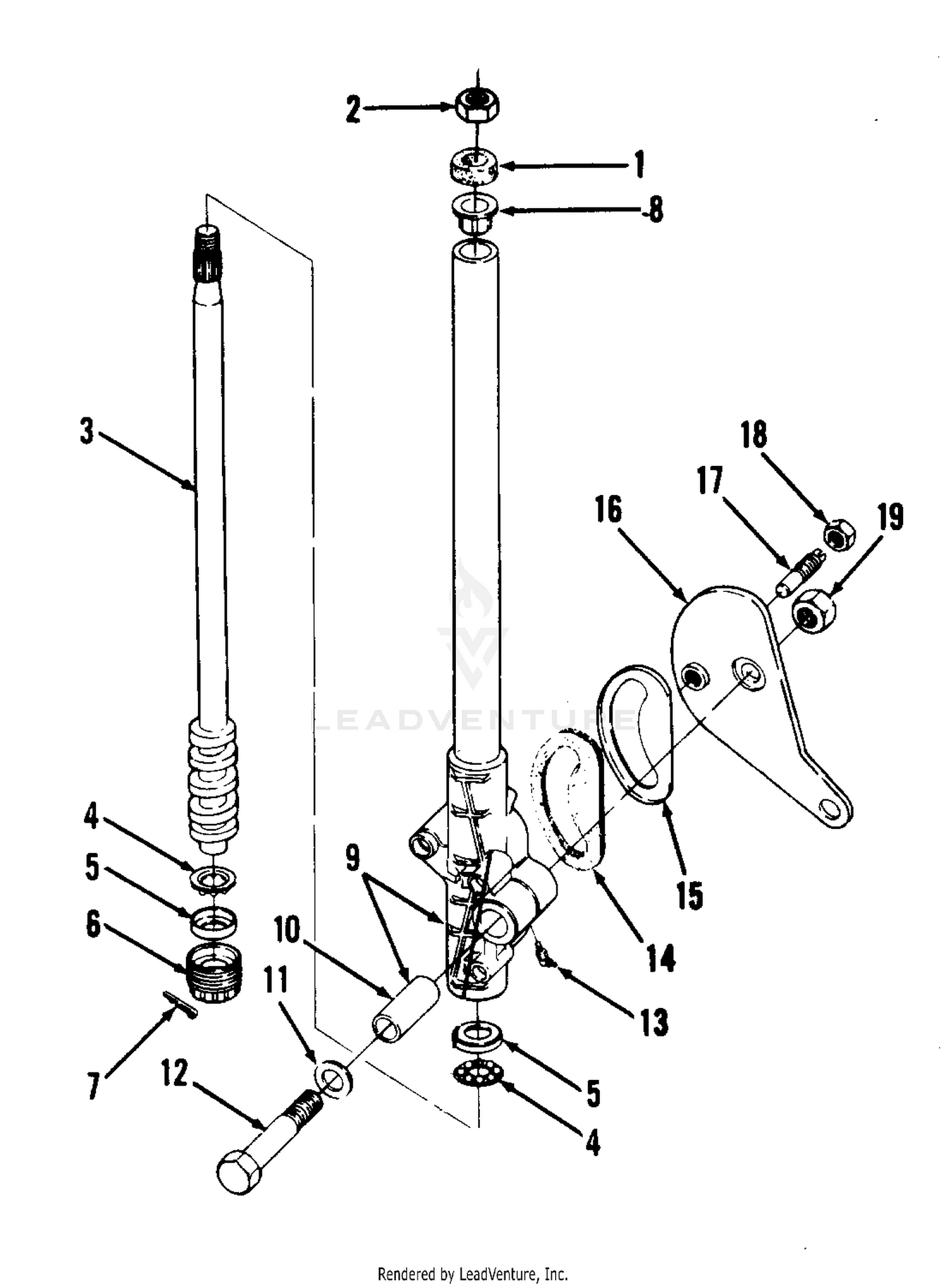

| Ref | Part Number | Description |
|---|
| 1 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 1 |
723-3040 |
SEAL-COLUMN Not Available Price: |
| 2 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 2 |
712-3056 |
Nut, Hex Jam, 5/8-18 Price: $4.21 |
| 3 |
703-1088 |
SHAFT/CAM ASSEMBLY Not Available Price: |
| 3 |
94-1754 |
SWITCH & ROLLER BRACKET ASM Price: $246.41 |
| 4 |
93-6825 |
PLATE - PUMP *B Price: $74.55 |
| 4 |
941-3021 |
RETAINER/BALL ASSEMBLY This part replaces 741-3021. Price: $32.76 |
| 5 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
903-1029 |
BEARING CUP Not Available This part replaces 703-1029. Price: |
| 6 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 6 |
719-3053 |
ADJUSTING PLUG Not Available Price: |
| 7 |
3217-29 |
NUT-HEX Price: $0.25 |
| 7 |
714-0474 |
Pin, Cotter, 1/8 Dia X .75 Lg Price: $4.08 |
| 8 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 8 |
941-3023 |
COLUMN BEARING This part replaces 741-3023. Price: $7.17 |
| 9 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 10 |
3220-2 |
NUT-JAM Price: $0.50 |
| 10 |
748-3008 |
BUSHING Not Available Price: |
| 11 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 11 |
736-0287 |
Washer, Flat, .791 X 1.24 X .060 Thk Price: $3.93 |
| 12 |
322-17 |
SCREW-HH Price: $2.62 |
| 12 |
711-3208 |
PIVOT SHAFT Not Available Price: |
| 13 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 13 |
737-3001 |
Fitting, Lube, 3/16 Drive Type Price: $10.74 |
| 14 |
321-6 |
SCREW-HH Price: $0.25 |
| 14 |
923-3039 |
Seal This part replaces 723-3039. Price: $7.77 |
| 15 |
703-1031 |
SEAL RETAINER Not Available Price: |
| 15 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 16 |
104-3938-03 |
TRACTION PEDAL ASM This part replaces 83-8270. Price: $83.32 |
| 16 |
703-1089 |
Arm, Steering Price: Call Us |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 17 |
911-3149A |
Cam Follower This part replaces 711-3149A. Price: $39.63 |
| 18 |
712-3062 |
HEX JAM NUT 9/16-1 Not Available Price: |
| 18 |
93-6936 |
DISCONTINUED Price: Call Us |
| 19 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 20 |
93-6859 |
SPACER Price: $9.48 |
| 21 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 22 |
322-9 |
SCREW-HH Price: $3.09 |
| 23 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 24 |
3220-20 |
NUT-JAM Price: $0.92 |
| 25 |
83-8760 |
DISCONTINUED Price: Call Us |
| 27 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
251-259 |
BEARING-BALL Price: $13.67 |
| 32 |
3210-7 |
SCREW-HH Price: $0.61 |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
93-6824 |
DISCONTINUED Price: Call Us |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
323-7 |
SCREW-HH Price: $0.65 |
| 38 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 39 |
93-6826 |
DISCONTINUED Price: Call Us |
| 40 |
323-5 |
SCREW-HH Price: $0.41 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 43 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 44 |
32128-44 |
NUT Price: $2.69 |
| 46 |
322-6 |
SCREW-HH Price: $0.45 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |
