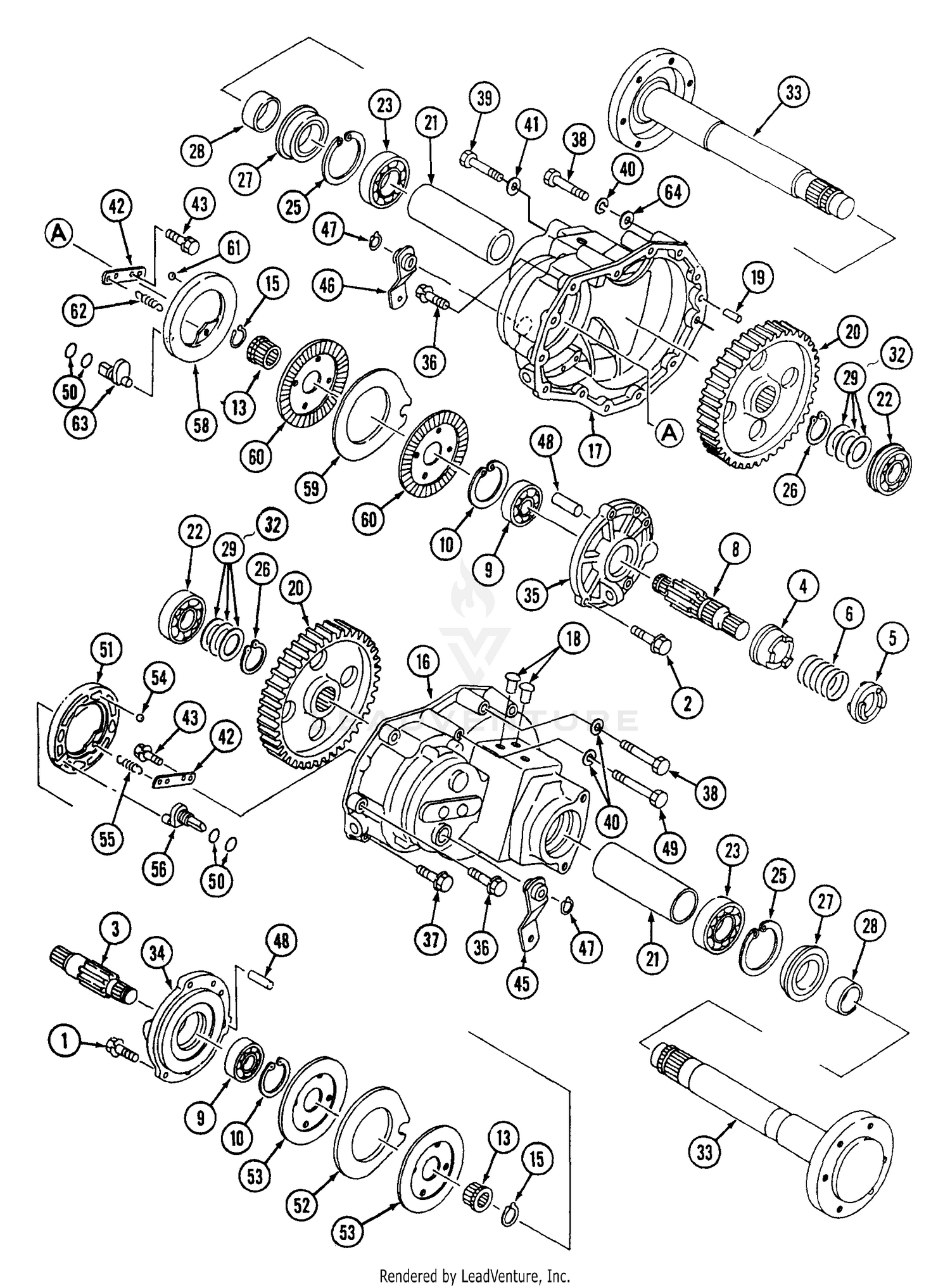

Rear Axle — Parts Catalog

Parts (55)

Ref	Part Number	Description
1	MA-F1550110030	Bolt Price: $3.52
2	None	UNKNOWN
3	MA-19641511000	SHAFT L.H. Not Available Price:
4	MA-19061519000	SLEEVE Not Available Price:
5	MA-19061521000	SPACER Not Available Price:
6	MA-19061523000	SPRING Not Available Price:
8	MA-19641512000	SHAFT R.H Not Available Price:
9	MA-07520663060	BEARING Not Available Price:
10	MA-07410007201	RING-"C" Not Available Price:
13	MA-19641519000	HUB BRAKE Not Available Price:
15	MA-07400003000	RING-"C" Not Available Price:
16	MA-19641513AG1	CASE L.H Not Available Price:
17	MA-19641514AG1	CASE R.H. Not Available Price:
18	MA-05534-14000	PLUG Not Available Price:
19	MA-05401010020	PIN Not Available Price:
20	MA-19641517000	GEAR 68T Not Available Price:
21	MA-19641518000	COLLAR Not Available Price:
22	MA-07500063085	BEARING NSK6308N D90 Not Available Price:
23	MA-07500062100	BEARING NSK 6210 Not Available Price:
25	MA-07410009001	RING, SNAP Not Available Price:
26	MA-07400004801	RING, SNAP Not Available Price:
27	MA-08412579013	SEAL, OIL Not Available Price:
28	MA-10211525000	SLEEVE Not Available Price:
30	MA-07300005202	LINER Not Available Price:
31	MA-07300005204	LINER T=0. Not Available Price:
32	MA-07300005206	LINER Not Available Price:
33	MA-19641516AG0	SHAFT AXLE Not Available Price:
34	MA-19641524000	HOLDER L.H Not Available Price:
35	MA-19641525000	HOLDER R.H Not Available Price:
36	MA-F1540112040	BOLT Not Available Price:
37	MA-F1540112050	BOLT Not Available Price:
38	MA-A0540112080	BOLT Not Available Price:
39	MA-A9440112090	BOLT Not Available Price:
40	MA-A3600101202	SPRING,WASHER Not Available Price:
41	MA-03550161226	WASHER Not Available Price:
42	MA-19641527000	HOOK Not Available Price:
43	MA-F1540108020	BOLT,W/SPRING WASH Not Available Price:
45	MA-19641528000	LEVER BRAKE L.H Not Available Price:
46	MA-19641529000	LEVER BRAK Not Available Price:
47	MA-07400002000	RING, SNAP Not Available Price:
48	MA-19641526000	PIN Not Available Price:
49	MA-A0540112100	BOLT Not Available Price:
50	MA-08300100160	O-RING Not Available Price:
51	MA-10321501100	PLATE CAM Not Available Price:
52	MA-10301538000	PLATE MATING Not Available Price:
53	MA-10301537000	DISK Not Available Price:
54	MA-10321501400	STEEL BALL Not Available Price:
55	MA-10321501500	SPRING-RETURN BRAKES Not Available Price:
56	MA-35151468000	CAM, BRAKE Not Available Price:
58	MA-10321502100	PLATE, CAM Not Available Price:
59	MA-10301538000	PLATE MATING Not Available Price:
60	MA-10301537000	DISK Not Available Price:
61	MA-10321501400	STEEL BALL Not Available Price:
62	MA-10321501500	SPRING-RETURN BRAKES Not Available Price:
63	MA-35151468000	CAM, BRAKE Not Available Price:
