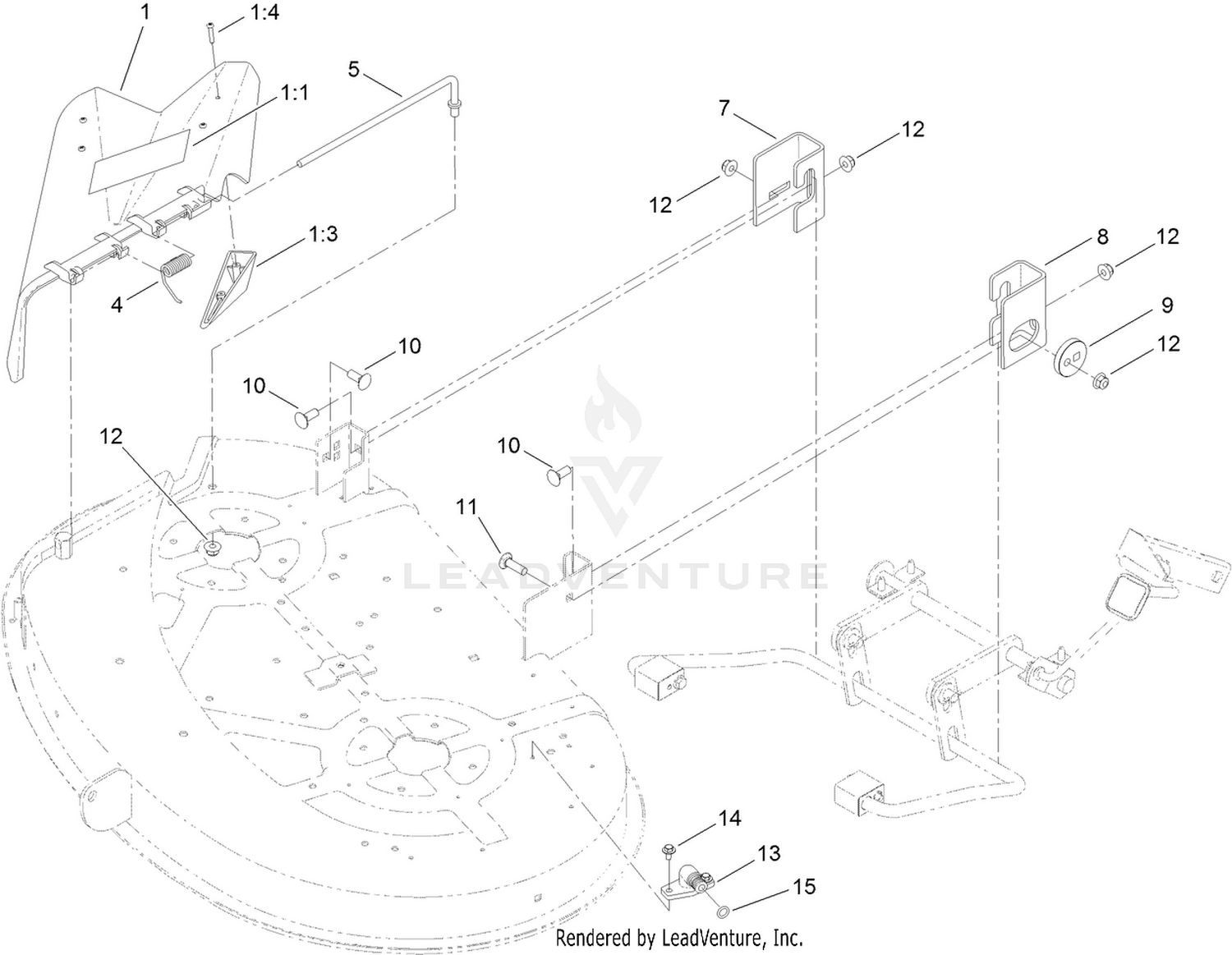

38 Inch Deflector and Hanger Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-7695 | DEFLECTOR ASM Price: $54.41 |
| 4 | 110-6694 | SPRING-TORSION Price: $4.12 |
| 5 | 95-1661 | ROD-PIVOT Price: $13.31 |
| 7 | 108-7836 | BRACKET-HANGER, RIGHT REAR Price: $14.25 |
| 8 | 108-7838 | BRACKET-HANGER, LEFT REAR Price: $14.25 |
| 9 | 112-3980 | ECCENTRIC Price: $4.49 |
| 10 | 3231-2 | BOLT-CARR Price: $0.81 |
| 11 | 3231-28 | SCREW-CARR Price: $1.92 |
| 12 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 13 | 133-9289 | FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 14 | 46-8560 | SCREW-HHFTF Price: $1.79 |
