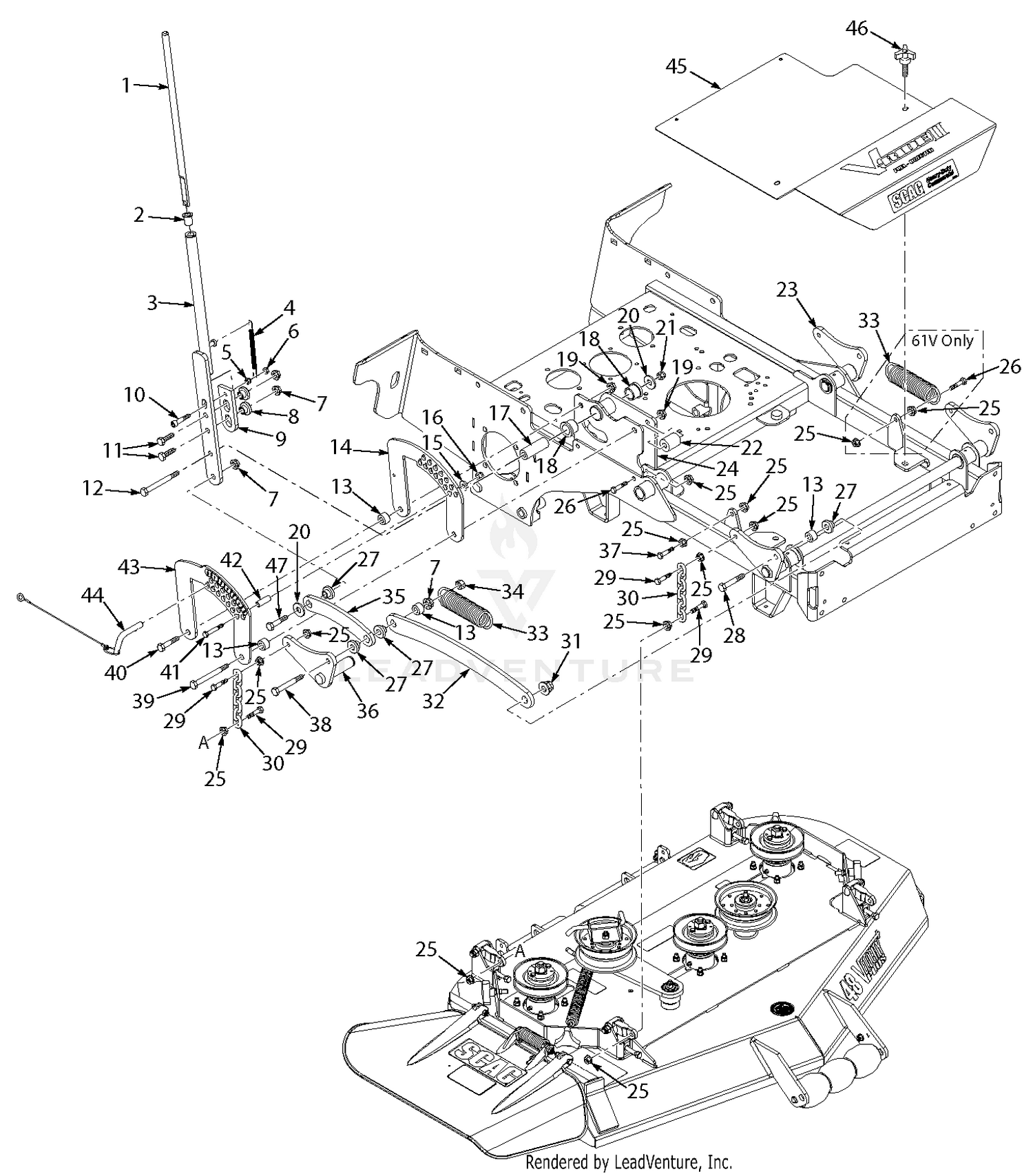

| Ref | Part Number | Description |
|---|
| 1 |
43747 |
Rod, Actuator Price: Call Us |
| 2 |
483463-14 |
Bearing Price: Call Us |
| 3 |
452811 |
Handle Weldment, Deck Latch Price: Call Us |
| 4 |
483600 |
Spring, Deck Latch Price: Call Us |
| 5 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 6 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 7 |
04019-06 |
Nut, Serrated Flange 1/2-13 Price: Call Us |
| 8 |
43748 |
Bushing, Deck Latch Price: Call Us |
| 9 |
424652 |
Deck Latch, Outer Price: Call Us |
| 10 |
04015-41 |
Capscrew, Socket Head 3/8-16 x 1-3/4" Price: Call Us |
| 11 |
04001-183 |
Bolt, Hex Head 1/2-13 x 1-3/4" Price: Call Us |
| 12 |
04001-194 |
Bolt, Hex Head 1/2-13 x 4-1/4" Price: Call Us |
| 13 |
43806 |
Spacer Price: Call Us |
| 14 |
427219 |
Bracket, Deck Height Price: Call Us |
| 15 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 16 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 17 |
43872 |
Sleeve, Pivot Price: Call Us |
| 18 |
483453-03 |
Bearing Price: Call Us |
| 19 |
04019-06 |
Nut, Serrated Flange 1/2-13 Price: Call Us |
| 20 |
04040-13 |
Flatwasher, 1/2-.562 x .375 x .109 Price: Call Us |
| 21 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 22 |
43666 |
Spacer Price: Call Us |
| 23 |
452808 |
Arm Weldment, LH Price: Call Us |
| 25 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 26 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 27 |
43748 |
Bushing, Deck Latch Price: Call Us |
| 28 |
04001-52 |
Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us |
| 29 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 30 |
462940 |
CHAIN ASSY This part replaces 485864. Price: Call Us |
| 31 |
04117-04 |
Nut, Flange Elastic Stop 1/2-13 Price: Call Us |
| 32 |
427221 |
Link, Deck Lift Price: Call Us |
| 33 |
484038 |
Spring, Deck Lift Price: Call Us |
| 34 |
04021-19 |
Nut, Center Lock 1/2-13 Price: Call Us |
| 35 |
427220 |
Link, Deck Lift Price: Call Us |
| 36 |
452809 |
Arm Weldment, RH Price: Call Us |
| 38 |
04001-52 |
Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us |
| 39 |
04001-87 |
Bolt, Hex Head 1/2-13 x 4" Price: Call Us |
| 40 |
04001-72 |
Bolt, Hex Head 1/2-13 x 2" Price: Call Us |
| 41 |
04001-46 |
Bolt, Hex Head 3/8-16 2-1/4" Price: Call Us |
| 42 |
43668 |
Spacer Price: Call Us |
| 43 |
427288 |
Bracket, Deck Height - Outer Price: Call Us |
| 44 |
485857 |
Pin Assy. w/Lanyard Price: Call Us |
| 45 |
463315 |
Belt Cover w/Decals This part replaces 462971. Price: Call Us |
| 46 |
481625-01 |
Knob w/Stud Price: Call Us |
