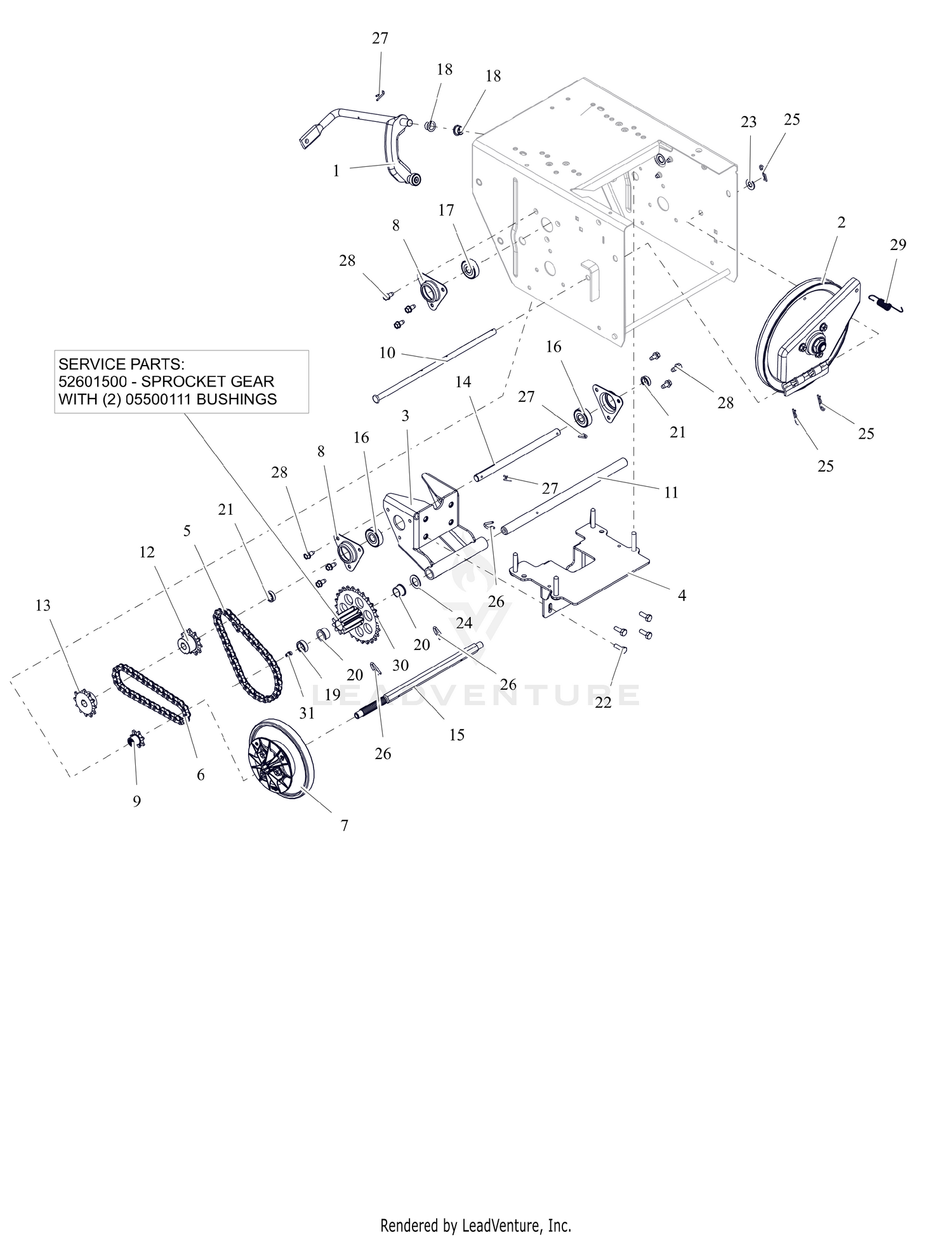

| Ref | Part Number | Description |
|---|
| 1 |
04993700 |
ARM, SHIFT - ASSEMBLY Price: $36.95 |
| 2 |
52602700 |
PLATE, SWING ASSEMBLY-DEEP Price: $101.95 |
| 3 |
05191800 |
WLDMT, TRIPLE REDUCTION BRKT Price: $59.45 |
| 4 |
05191700 |
STRAP, TRIPLE REDUCITON BOLT Price: $35.45 |
| 5 |
05191900 |
CHAIN, ROLLER - #41X36 PITCHES Price: $15.45 |
| 6 |
02466200 |
CHAIN - #41, 32 PITCHES Price: $7.45 |
| 7 |
04861600 |
DISC, FRICTION DRIVE-ASSEMBLY Price: $31.95 |
| 8 |
00383000 |
FLANGE, BEARING Price: $11.45 |
| 9 |
09478400 |
SPROCKET- PINION 7T W/SPLINE This part replaces 04092600. Price: $1.95 |
| 10 |
09429400 |
PIN, PIVOT Price: $7.45 |
| 11 |
05004900 |
SHAFT, PINION-HARDENED Price: $33.95 |
| 12 |
05102300 |
SPROCKET, 11 TOOTH Price: $32.45 |
| 13 |
05102700 |
SPROCKET, 12 TOOTH Price: $32.45 |
| 14 |
05153200 |
SHAFT, REDUCTION HEAT TREATED Price: $20.45 |
| 15 |
05199800 |
SHAFT, HEX HEAT TREATED SPLINE Price: $17.45 |
| 16 |
05408000 |
BRG-BALL .500X1.38X.437 Price: $5.95 |
| 17 |
05435200 |
BRG-BALL .437X1.375X.437 Price: $8.95 |
| 18 |
05500026 |
BUSHING, POLYLINER-.50 SPLIT Price: $2.45 |
| 19 |
05500035 |
BSHG-SLV, .635X.880X.305 Price: $3.45 |
| 20 |
05500111 |
BSHG-FLG .625X.750X.500X.875 Price: $1.95 |
| 21 |
05501326 |
SPCR, SLV Price: $8.95 |
| 22 |
05901716 |
BLT, HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 23 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 24 |
06401117 |
WSHR, FLT .630X1.005X.062 ZCC Price: $0.45 |
| 25 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 26 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 27 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 28 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 29 |
08300019 |
SG-TENS .048X.50X2.8 Price: $5.45 |
| 30 |
30312500 |
PINION, SPROCKET This part replaces 00190600. Price: $22.45 |
