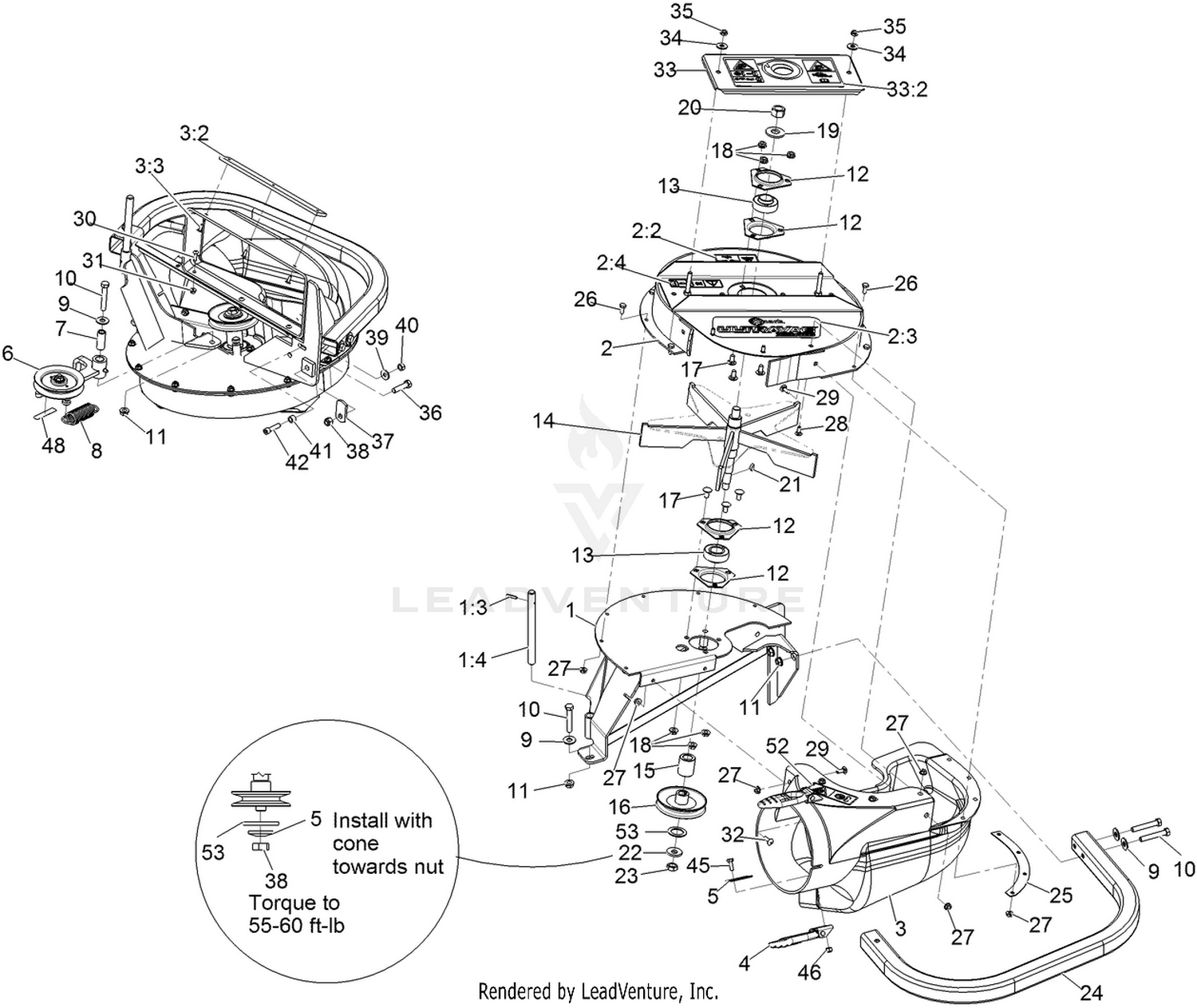

| Ref | Part Number | Description |
|---|
| 1 |
109-8885-03 |
WLD,FRAME LG BLOWER Price: $586.99 |
| 2 |
116-4816 |
ASM-UPPER HOUSING LARGE Price: $520.99 |
| 3 |
109-2954 |
ASM,BLOWER CHUTE LZ Price: $285.99 |
| 5 |
103-3093 |
PLATE-BACKING Price: $7.99 |
| 7 |
1-603044 |
BUSHING Price: $13.99 |
| 8 |
1-653331 |
SPRING-IDLER Price: $11.99 |
| 9 |
3256-4 |
WASHER-FLAT Price: $1.49 |
| 10 |
323-11 |
SCREW-HH Price: $1.99 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.79 |
| 12 |
1-513013 |
HOUSING-FLANGE Price: $4.79 |
| 14 |
103-0455 |
IMPELLER Price: $421.99 |
| 16 |
103-0456 |
SHEAVE Price: $51.99 |
| 17 |
3230-18 |
SCREW-CARR Price: $4.79 |
| 18 |
32128-20 |
NUT-HF Price: $0.99 |
| 19 |
1-513208 |
WASHER-SPRING Price: $8.29 |
| 20 |
3219-6 |
NUT-HEX Price: $3.69 |
| 21 |
3257-32 |
KEY-WOODRUFF Price: $2.29 |
| 22 |
1-513435 |
WASHER-SPRING Price: $4.99 |
| 23 |
3220-5 |
NUT-JAM Price: $1.49 |
| 24 |
103-0458-01 |
BUMPER Price: $116.99 |
| 25 |
103-0461-03 |
PLATE-BACKING, BLOWER Price: $14.99 |
| 26 |
321-3 |
SCREW-HH Price: $1.19 |
| 27 |
32128-33 |
NUT-HF Price: $0.69 |
| 28 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 29 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 30 |
1-803075 |
SCREW-HEAD, TRUSS Price: $1.19 |
| 31 |
3290-148 |
NUT-HF Price: $0.39 |
| 32 |
1-803076 |
SCREW Price: $1.29 |
| 33 |
103-3583 |
ASM, BEARING COVER Price: $93.99 |
| 33 |
103-3584-03 |
COVER, BEARING Price: $33.99 |
| 34 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 35 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 36 |
323-8 |
SCREW-HH Price: $2.99 |
| 37 |
1-353054 |
LATCH-CATCHER, GRASS Price: $7.29 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
1-303334 |
WASHER-SPRING Price: $2.29 |
| 40 |
3217-6 |
NUT-HEX Price: $1.19 |
| 41 |
103-0126 |
BUSHING, LOCATOR Price: $6.29 |
| 42 |
3274-18 |
SCREW-HSH Price: $7.99 |
| 45 |
321-4 |
SCREW-HH Price: $0.99 |
| 46 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 48 |
126-4659 |
DECAL-WARNING Price: $4.89 |
| 52 |
126-4853 |
Decal-Blower-Impeller Hazard Price: $6.09 |
