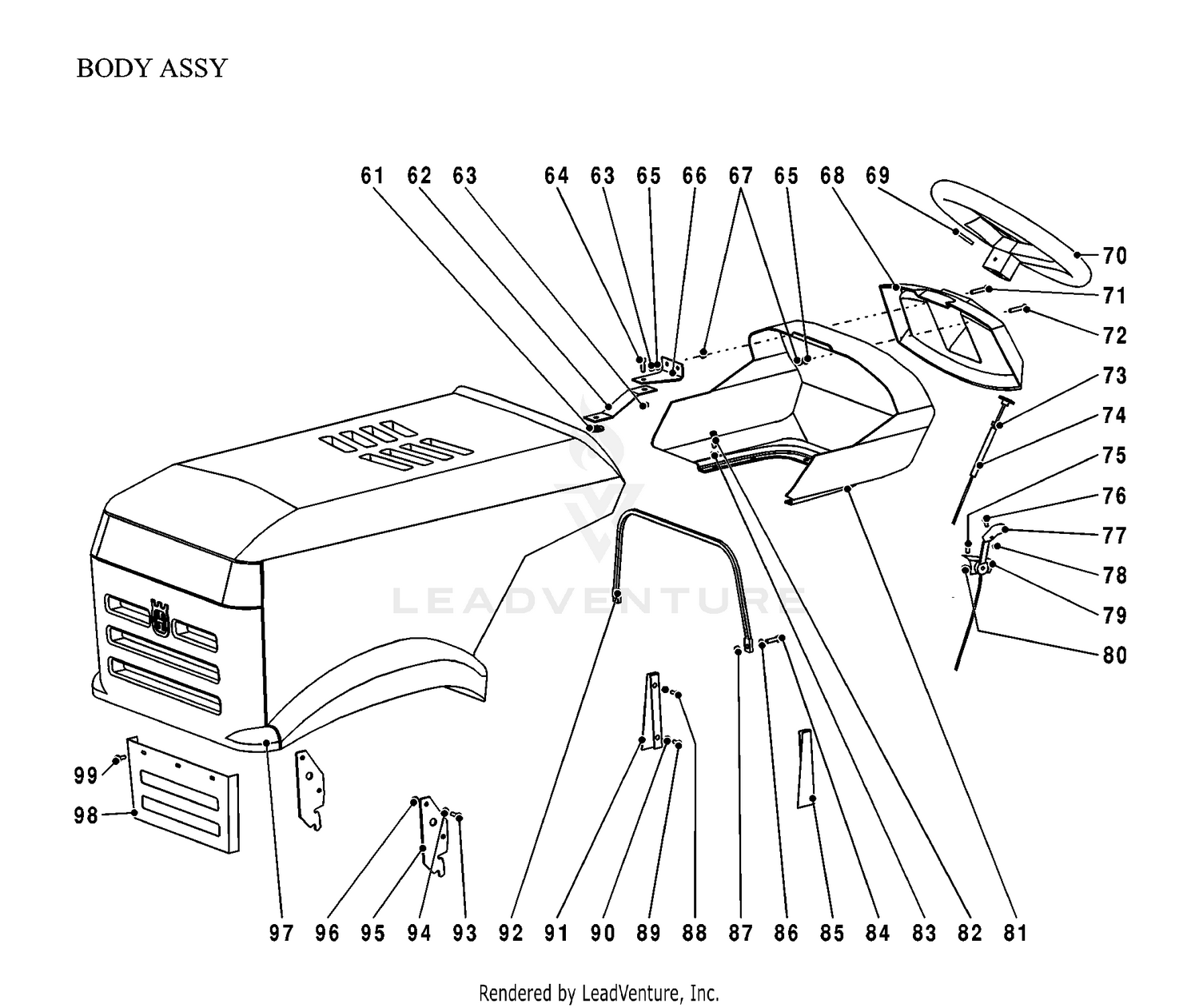

ASSEMBLY 2
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 61 | 531005877 | BUSHING Price: $3.99 |
| 62 | 531005607 | SUPPORT Price: $42.99 |
| 63 | 732261601 | Blocking nut M 6 Z Price: $0.99 |
| 64 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 65 | 734115201 | WASHER - M6 Price: $2.99 |
| 67 | 732261601 | Blocking nut M 6 Z Price: $0.99 |
| 68 | 531006169 | PANEL Price: $144.99 |
| 69 | 531005680 | PIN Price: $1.35 |
| 70 | 531005615 | STEERING WHEEL Price: $94.99 |
| 71 | 725237271 | SCREW Price: $3.99 |
| 72 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 73 | 873610600 | NUT Price: $2.99 |
| 74 | 531006225 | CHOKE CONTROL Price: $46.99 |
| 75 | 725232761 | SCREW Price: $2.99 |
| 76 | 723129201 | Price: $0.61 |
| 77 | 531005617 | HANDLE Price: $7.28 |
| 78 | 731231201 | NUT M6M M4 Price: $3.99 |
| 79 | 531005869 | THROTTLE TRIGGER Price: $44.99 |
| 80 | 531005831 | NUT Price: $1.99 |
| 81 | 531006170 | PANEL Price: $298.99 |
| 82 | 725233171 | SCREW Price: $2.15 |
| 83 | 531005866 | WASHER Price: $1.99 |
| 84 | 531005678 | BOLT Price: $1.99 |
| 85 | 531005745 | PLATE Price: $31.99 |
| 86 | 531005866 | WASHER Price: $1.99 |
| 87 | 531005831 | NUT Price: $1.99 |
| 88 | 531005989 | SCREW Price: $1.99 |
| 89 | 725228971 | SCREW Price: $2.99 |
| 90 | 731231201 | NUT M6M M4 Price: $3.99 |
| 91 | 531005746 | PLATE Price: $34.99 |
| 92 | 531005630 | ROD Price: $73.99 |
| 93 | 531005751 | SCREW Price: $1.99 |
| 94 | 734114571 | Washer 0 5.3 Price: $1.99 |
| 95 | 531006226 | BRACKET Price: $6.99 |
| 96 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 97 | 531006161 | BRACKET Price: $8.99 |
| 98 | 531006172 | HEAT SHIELD Price: $35.99 |
| 99 | 531006227 | SCREW Price: $1.99 |
